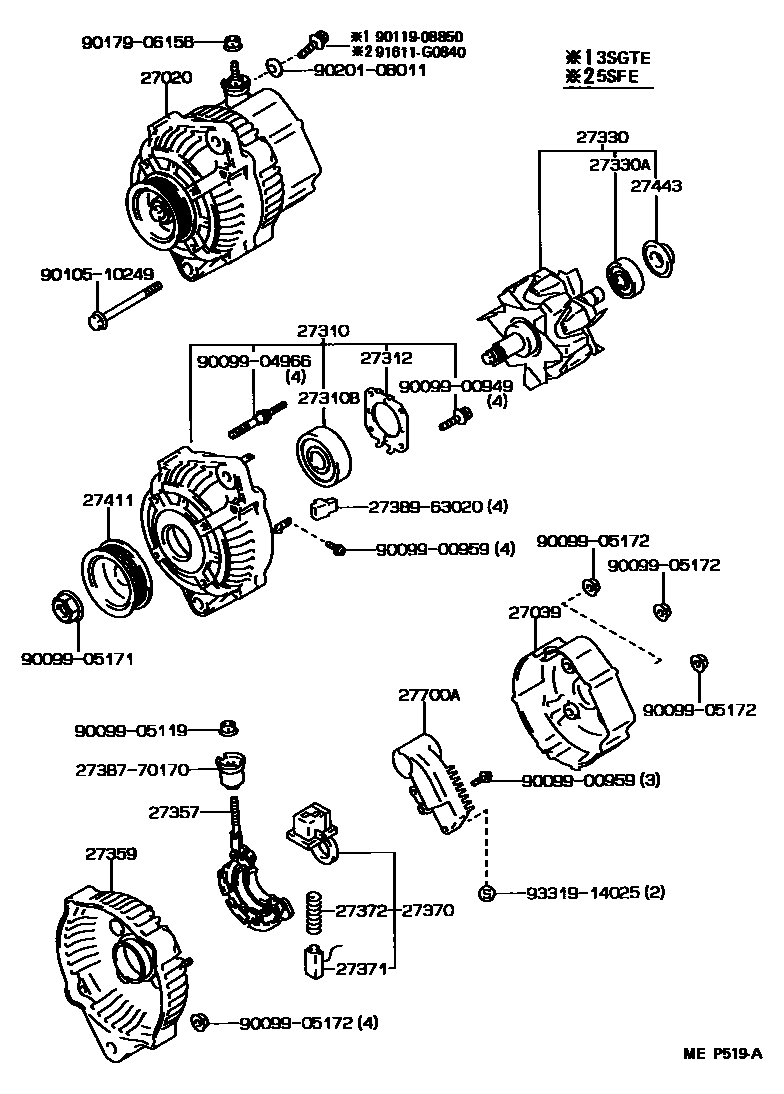

ALTERNATOR

0001 112V 70A 0002 112V 80A 0003 112V 100A 0004 112V 70A 0005 112V 80A 0006 112V 90A

27020ALTERNATOR ASSY

main27060-74160i5SFE..SW21..5F;3SGTE..SW20..USA199001-199201

12V 70A

main27060-74170i5SFE..SW21..4FC;3SGTE..SW20..CND199001-199201

12V 80A

main27060-74180i3SGTE,5SFE..SW2#..USA199001-199201

12V 100A,W(POWER STEERING)

main27060-74310i5SFE..SW21..5F;3SGTE..SW20..USA199201-199211

12V 70A

main27060-74320i5SFE..SW21..4FC;3SGTE..SW20..CND199201-199211

12V 80A

main27060-74330i3SGTE,5SFE..SW2#..USA199201-199211

12V 90A,W(POWER STEERING)

main27060-74420i5SFE..SW21..5F;3SGTE..SW20..USA199211-199506

12V 70A

main27060-74430i5SFE..SW21..4FC;3SGTE..SW20..CND199211-199506

12V 80A

main27060-74440i3SGTE,5SFE..SW2#..USA199211-199311

12V 90A,W(POWER STEERING)

main27060-74500i3SGTE,5SFE..SW2#199311-199506

12V 90A,W(POWER STEERING)

27039COVER, ALTERNATOR REAR END

main27039-42010i5SFE..SW21..4FC;3SGTE..SW20..CND199001-199012

sub27039-16310

main27039-42020i3SGTE,5SFE..SW2#..USA199001-199105

W(POWER STEERING)

sub27039-50080

main27039-61250i3SGTE,5SFE..SW2#..USA199110-199201

W(POWER STEERING)

main27039-72010i5SFE..SW21..5F;3SGTE..SW20..USA199001-199109

sub27039-15170

main27039-74150i5SFE..SW21..5F;3SGTE..SW20..USA199109-199201

main27039-74160i5SFE..SW21..4FC;3SGTE..SW20..CND199012-199201

sub27039-74220

main27039-74170i3SGTE,5SFE..SW2#..USA199105-199110

W(POWER STEERING)

sub27039-61250

main27039-74280i5SFE..SW21..5F;3SGTE..SW20..USA199201-199211

main27039-74290i5SFE..SW21..4FC;3SGTE..SW20..CND199201-199211

sub27039-74291

main27039-74300i3SGTE,5SFE..SW2#..USA199201-199211

W(POWER STEERING)

main27039-74400i5SFE..SW21..5F;3SGTE..SW20..USA199211-199506

main27039-74410i5SFE..SW21..4FC;3SGTE..SW20..CND199211-199506

main27039-74420i3SGTE,5SFE..SW2#..USA199211-199506

W(POWER STEERING)

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-74150i5SFE..SW21..5F;3SGTE..SW20..USA199001-199506

main27310-74160i5SFE..SW21..4FC;3SGTE..SW20..CND199001-199506

main27310-74170i3SGTE,5SFE..SW2#..USA199001-199506

W(POWER STEERING)

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10178i5SFE..SW21..5F;3SGTE..SW20..USA199001-199506

main90099-10192i5SFE..SW21..4FC;3SGTE..SW20..CND199001-199506

W(POWER STEERING)

27312PLATE, RETAINER

main27312-42010i3SGTE,5SFE..SW2#..5F..USA199001-199506

W(POWER STEERING)

main27312-70200i5SFE..SW21..5F;3SGTE..SW20..USA199001-199506

27330ROTOR ASSY, ALTERNATOR

main27330-42020i3SGTE,5SFE..SW2#..USA199001-199506

W(POWER STEERING)

sub27330-28050

main27330-72101i5SFE..SW21..5F;3SGTE..SW20..USA199001-199506

main27330-76030i5SFE..SW21..4FC;3SGTE..SW20..CND199001-199506

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i3SGTE,5SFE..SW2#199001-199506

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-50030i3SGTE,5SFE..SW2#..USA199001-199105

W(POWER STEERING)

sub27357-50060

main27357-50060i3SGTE,5SFE..SW2#..USA199105-199110

W(POWER STEERING)

main27357-62040i5SFE..SW21..4FC;3SGTE..SW20..CND199001-199105

sub27357-74160

main27357-63020i5SFE..SW21..5F;3SGTE..SW20..USA199001-199201

main27357-70081i5SFE..SW21..5F;3SGTE..SW20..USA199201-199506

main27357-74120i5SFE..SW21..4FC;3SGTE..SW20..CND199201-199211

sub27357-74290

main27357-74160i5SFE..SW21..4FC;3SGTE..SW20..CND199105-199201

main27357-74170i3SGTE,5SFE..SW2#..USA199110-199201

W(POWER STEERING)

main27357-74260i5SFE..SW21..4FC;3SGTE..SW20..CND199211-199506

main27357-74300i3SGTE,5SFE..SW2#..USA199201-199506

W(POWER STEERING)

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16180i5SFE..SW21..5F;3SGTE..SW20..USA199001-199201

sub27359-16181

sub27384-16380

main27359-16270i5SFE..SW21..4FC;3SGTE..SW20..CND199001-199201

main27359-74170i3SGTE,5SFE..SW2#..USA199001-199201

W(POWER STEERING)

main27359-74280i5SFE..SW21..5F;3SGTE..SW20..USA199201-199506

sub27359-74281

sub27384-16380

main27359-74290i5SFE..SW21..4FC;3SGTE..SW20..CND199201-199506

main27359-74300i3SGTE,5SFE..SW2#..USA199201-199506

W(POWER STEERING)

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-16011i5SFE..SW21..5F;3SGTE..SW20..USA199001-199105

sub27370-54450

main27370-42010i5SFE..SW21..4FC;3SGTE..SW20..CND199001-199105

sub27370-75060

main27370-54450i5SFE..SW21..5F;3SGTE..SW20..USA199105-199506

sub27370-58320

main27370-75060i3SGTE,5SFE..SW2#..5F..USA199001-199506

W(POWER STEERING)

27371BRUSH, ALTERNATOR

main27371-63020i5SFE..SW21..5F;3SGTE..SW20..USA199001-199105

sub27371-70300

main27371-70300i5SFE..SW21..5F;3SGTE..SW20..USA199105-199506

27372SPRING, ALTERNATOR BRUSH

main27372-63020i5SFE..SW21..5F;3SGTE..SW20..USA199011-199506

sub27372-87501

main27372-72100i5SFE..SW21..5F;3SGTE..SW20..USA199001-199011

sub27372-63020

27411PULLEY, ALTERNATOR

main27411-42010i5SFE..SW21..4FC;3SGTE..SW20..CND199001-199506

main27411-42010i3SGTE,5SFE..SW2#..5F..USA199001-199311

W(POWER STEERING)

main27411-70200i5SFE..SW21..5F;3SGTE..SW20..USA199001-199506

main27411-74460i3SGTE,5SFE..SW2#199311-199506

W(POWER STEERING)

27443COVER, ALTERNATOR BEARING

main27443-63020i3SGTE,5SFE..SW2#199001-199506

27700AREGULATOR ASSY, GENERATOR

main27700-46030i3SGTE,5SFE..SW2#199201-199211

sub27700-72090

main27700-70030i5SFE..SW21..5F;3SGTE..SW20..USA199001-199201

main27700-74010i3SGTE,5SFE..SW2#..5F..USA199001-199201

W(POWER STEERING)

sub27700-72090

main27700-74030i3SGTE,5SFE..SW2#199211-199506

2738770170INSULATOR, TERMINAL

main27387-70170

2738963020INSULATOR, TERMINAL

main27389-63020

9009900949

main90099-00949

9009900959

main90099-00959

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010510249

main90105-10249

9011908850

main90119-08850

9017906158

main90179-06158

9020108011

main90201-08011

91611G0840

main91611-G0840

9331914025

main93319-14025

29 parts on this diagram · 6 diagrams in section
