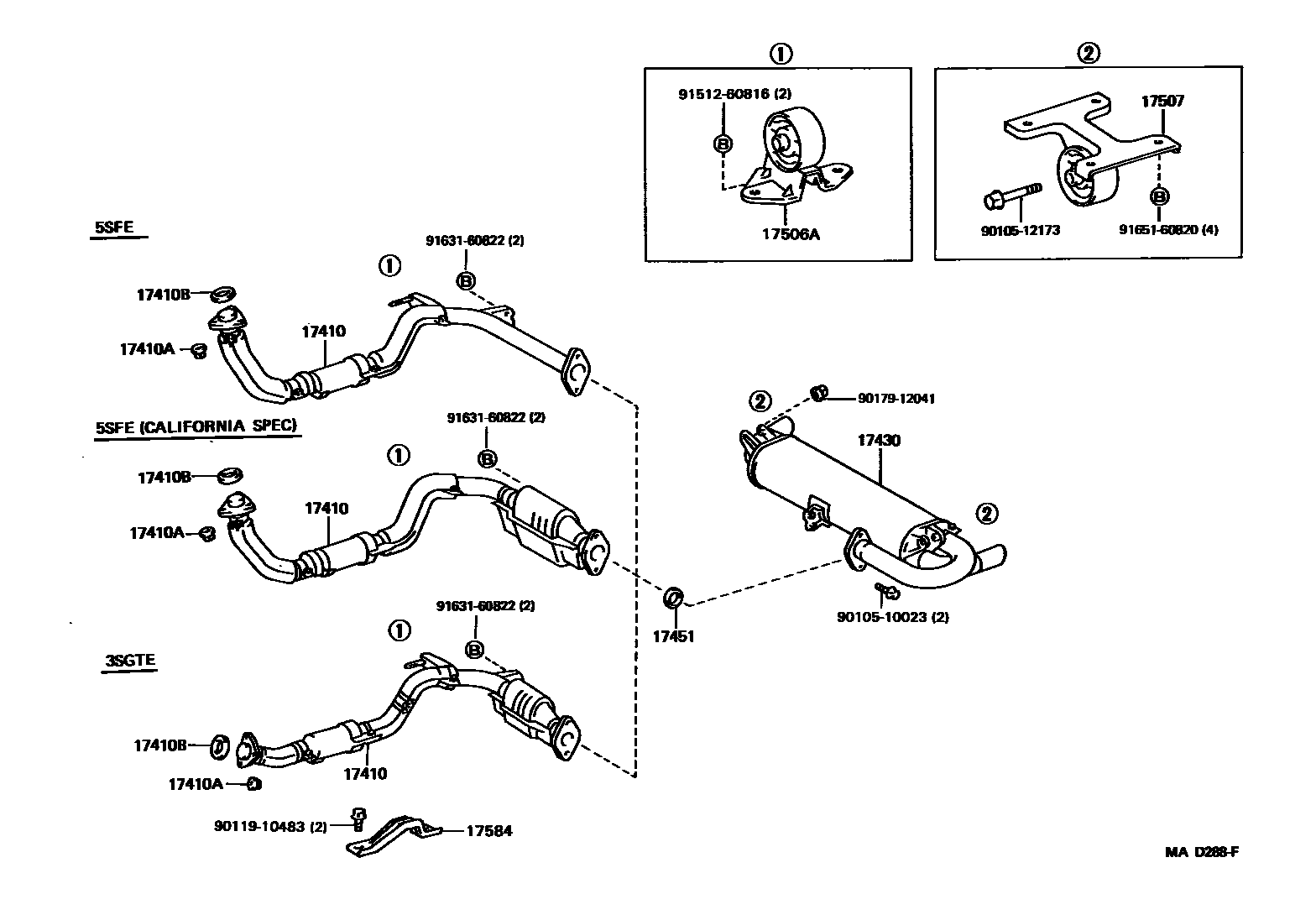

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-74710i5SFE..SW21199001-199201

sub17410-7A030

main17410-74720i5SFE..SW21..USA199001-199201

CALIFORNIA SPEC

sub17410-7A040

main17410-74730i3SGTE..SW20199001-199201

sub17410-7A050

main17410-7A030i5SFE..SW21199201

main17410-7A040i5SFE..SW21..USA199201

CALIFORNIA SPEC

main17410-7A050i3SGTE..SW20199201

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i3SGTE,5SFE..SW2#199001

17410BGASKET, EXHAUST PIPE

main90917-06042i5SFE..SW21199001-199311

main90917-06056i3SGTE..SW20199001-199311

main90917-06066i5SFE..SW21199311

main90917-06068i3SGTE..SW20199311

17430PIPE ASSY, EXHAUST, TAIL

main17430-74810i5SFE..SW21199001

main17430-74840i3SGTE..SW20199001

17451GASKET, EXHAUST PIPE

main90917-06049i3SGTE,5SFE..SW2#199001

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-74060i3SGTE,5SFE..SW2#199001-199006

17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT

main17507-74040i3SGTE,5SFE..SW2#199001-199201

sub17507-74080

main17507-74080i3SGTE,5SFE..SW2#199201

17584STOPPER, EXHAUST TAILPIPE

main17584-74170i3SGTE..SW20199201

9010510023

main90105-10023

9010512173

main90105-12173

9011910483

main90119-10483

9017912041

main90179-12041

9151260816

main91512-60816

9163160822

main91631-60822

9165160820

main91651-60820

15 parts on this diagram · 1 diagram in section
