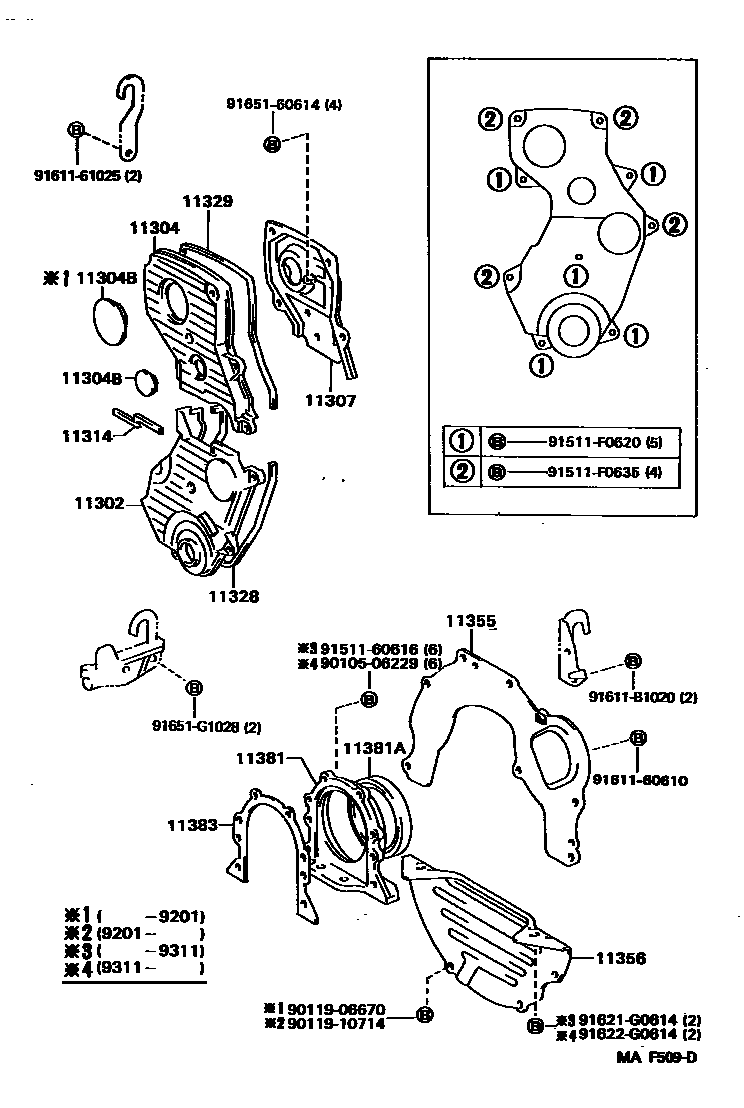

TIMING GEAR COVER & REAR END PLATE
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
11304COVER, TIMING CHAIN OR BELT, NO.2
11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
OD=33
OD=76
11307COVER, SUB-ASSY, TIMING BELT, NO.3
11314GASKET, TIMING CHAIN NO.2 COVER
11328GASKET, TIMING GEAR OR CHAIN COVER
11329GASKET, TIMING GEAR REAR COVER
11355PLATE, REAR END
11381RETAINER, ENGINE REAR OIL SEAL
9010506229
main90105-06229
9011906670
main90119-06670
9011910714
main90119-10714
9151160616
main91511-60616
91511F0620
main91511-F0620
91511F0635
main91511-F0635
9161160610
main91611-60610
9161161025
main91611-61025
91611B1020
main91611-B1020
91621G0614
main91621-G0614
91622G0614
main91622-G0614
9165160614
main91651-60614
91651G1028
main91651-G1028
25 parts on this diagram · 2 diagrams in section
