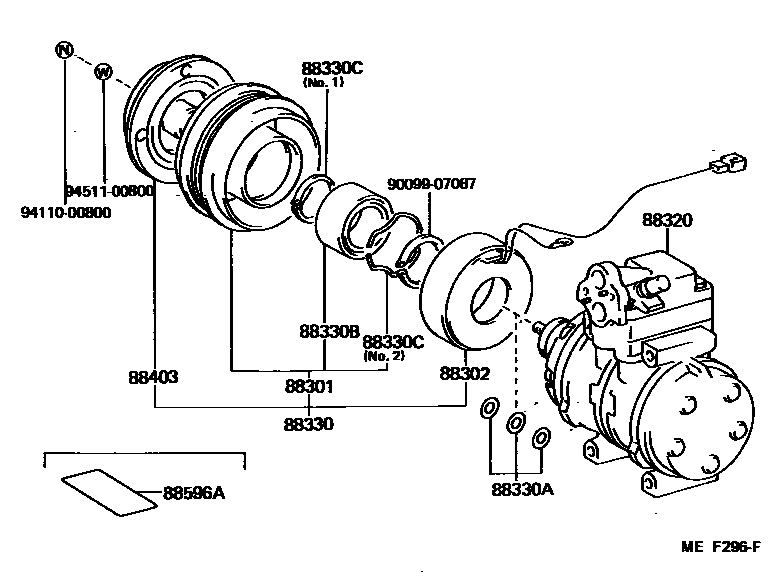

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12120iAW11..SPC198708-198912

main88412-22050iAW11..GT..USA198412-198912

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-17010iAW11..GT..CND198412-198912

main88411-17020iAW11..SPC..CND198708-198912

88320COMPRESSOR ASSY, COOLER

main88320-17010iAW11198412-198608

main88320-17030iAW11..CND198508-198608

W/STD AIR CONDITIONER

main88320-17040iAW11..GT..USA198608-198808

main88320-17041iAW11..GT..USA198808-198912

main88320-17050iAW11..GT..CND198608-198912

main88320-17070iAW11..SPC..USA198708-198912

main88320-17080iAW11..SPC..USA198808-198912

88330CLUTCH ASSY, MAGNET

main88410-17010iAW11..GT..USA198412-198912

main88410-17020iAW11..SPC..USA198708-198912

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iAW11198608-198912

88330BBEARING, MAGNET CLUTCH

main90099-10133iAW11198412-198912

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07094iAW11..GT198412-198803

NO.2

main90099-07114iAW11..SPC..CND198608-198912

NO.1

main90099-07127iAW11..SPC198608-198912

NO.2

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iAW11..USA198608-198912

main88403-14030iAW11198412-198608

sub88403-12030

88596APLATE, CAUTION

main88356-12010iAW11198608-198912

9009907087

main90099-07087

9411000800

main94110-00800

9451100800

main94511-00800

12 parts on this diagram · 4 diagrams in section
