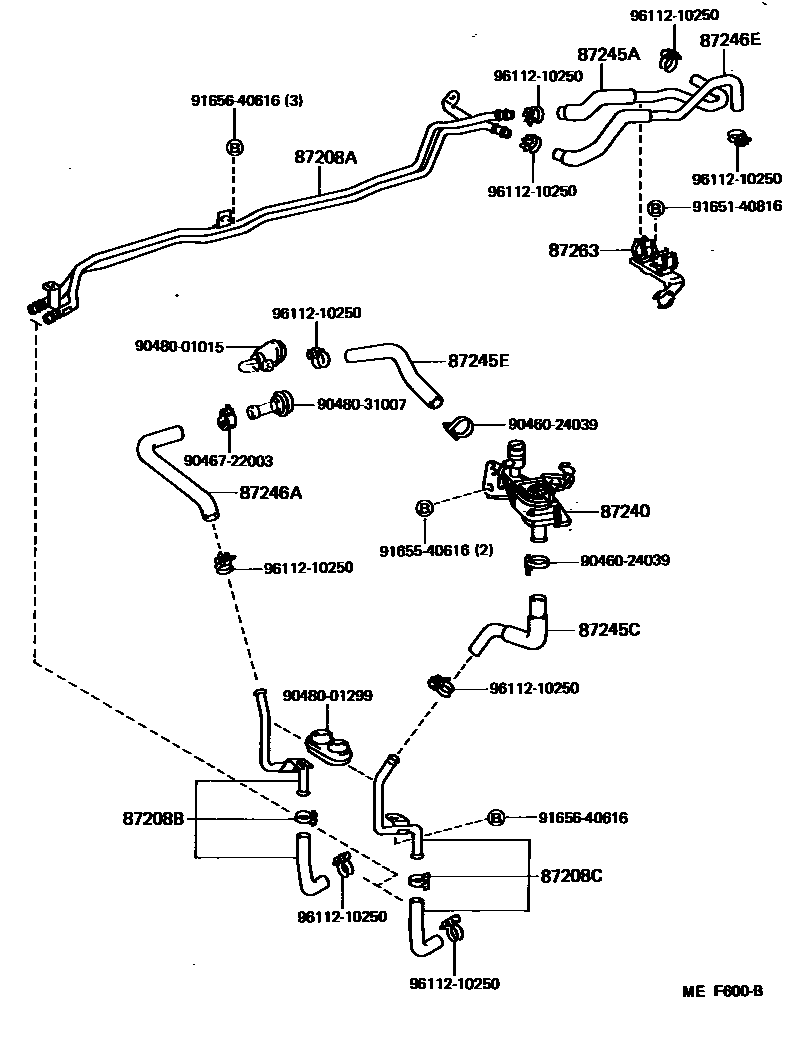

HEATING & AIR CONDITIONING - WATER PIPING

87208APIPE SUB-ASSY, HEATER WATER, A

main87208-17030iAW11198412-198710

sub87208-17031

main87208-17031iAW11198710-198912

87208BPIPE SUB-ASSY, HEATER WATER, B

main87208-17010iAW11198412-198912

87208CPIPE SUB-ASSY, HEATER WATER, C

main87208-17020iAW11198412-198912

87240VALVE ASSY, HEATER WATER

main87240-17020iAW11198412-198912

main87240-17040iAW11198412-198608

W/AUTOMATIC AIR CONDITIONER

87245AHOSE, HEATER WATER, INLET A

main87245-17100iAW11198412-198704

sub87245-17101

main87245-17101iAW11..GT198704-198912

main87245-17150iAW11..SPC198708-198912

87245CHOSE, HEATER WATER ,INLET C

main87245-17050iAW11198412-198912

87245EHOSE, HEATER WATER, INLET E

main87245-17040iAW11198412-198912

87246AHOSE, HEATER WATER, OUTLET A

main87245-17060iAW11198412-198912

sub87245-17030

87246EHOSE, HEATER WATER, OUTLET E

main87245-17110iAW11198412-198608

sub87245-17111

main87245-17111iAW11198608-198704

sub87245-17112

main87245-17112iAW11..GT198704-198912

main87245-17160iAW11..SPC198708-198912

87263BRACKET, HEATER WATER PIPE, NO.1

main87263-17011iAW11..4FC..SPC198412-198912

main87263-17040iAW11..5F..SPC198708-198912

9046024039

main90460-24039

9046722003

main90467-22003

9048001015

main90480-01015

9048001299

main90480-01299

9048031007

main90480-31007

9165140816

main91651-40816

9165540616

main91655-40616

9165640616

main91656-40616

9611210250

main96112-10250

19 parts on this diagram · 1 diagram in section
