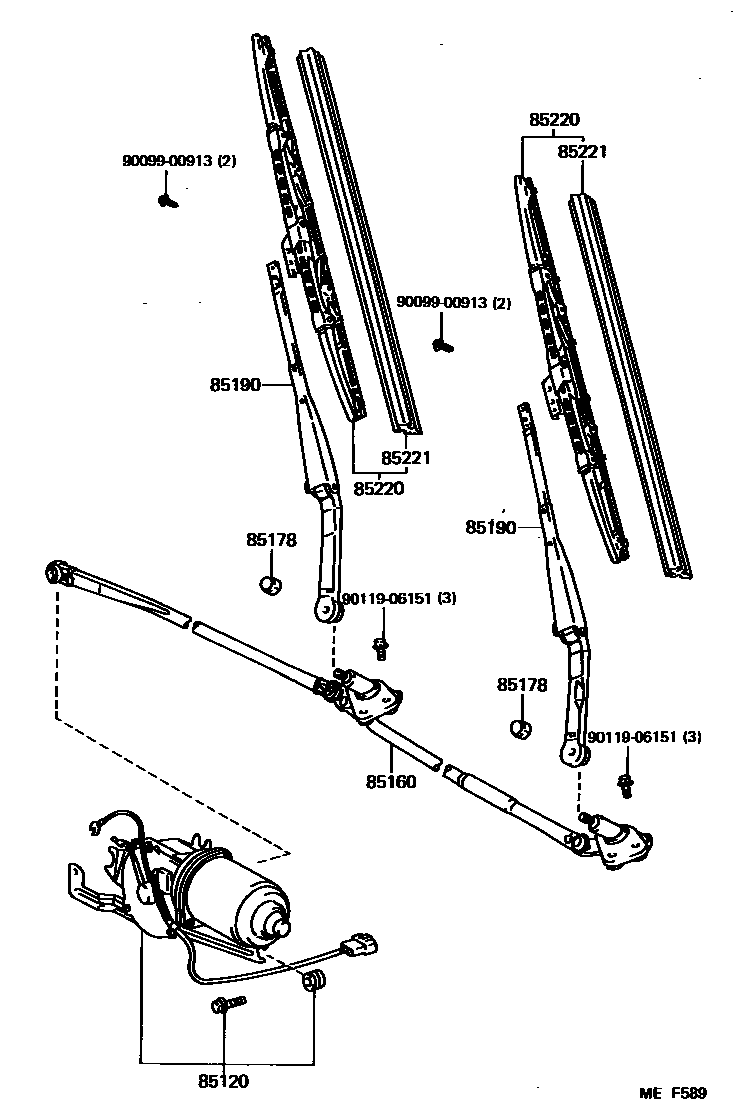

WINDSHIELD WIPER

85120MOTOR AND BRACKET ASSY, WINDSHIELD WIPER

main85120-17021iAW11198608-198912

main85120-17030iAW11198412-198608

85160LINK ASSY, WINDSHIELD WIPER

main85160-17030iAW11198412-198608

main85160-17031iAW11198608-198912

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08029iAW11198412-198506

main90176-08033iAW11198506-198807

main90176-08040iAW11198807-198912

sub90176-08051

85190ARM ASSY, WINDSHIELD WIPER

main85190-17020iAW11198412-198608

LH

sub85190-17021

main85190-17021iAW11198608-198803

LH

main85190-17021iAW11198803-198912

RH

main85210-17020iAW11198412-198608

RH

sub85210-17021

main85210-17021iAW11198608-198803

RH

main85210-17021iAW11198803-198912

LH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16270iAW11198412-198608

LH

sub85220-16640

main85220-16340iAW11198412-198608

RH

sub85220-16640

main85220-16630iAW11198608-198912

LH

sub85220-16880

main85220-16640iAW11198608-198912

RH

85221BLADE, WINDSHIELD WIPER

main85221-17020iAW11198608-198912

sub85221-40040

main85221-30100iAW11198412-198608

sub85221-40040

9009900913

main90099-00913

9011906151

main90119-06151

8 parts on this diagram · 1 diagram in section
