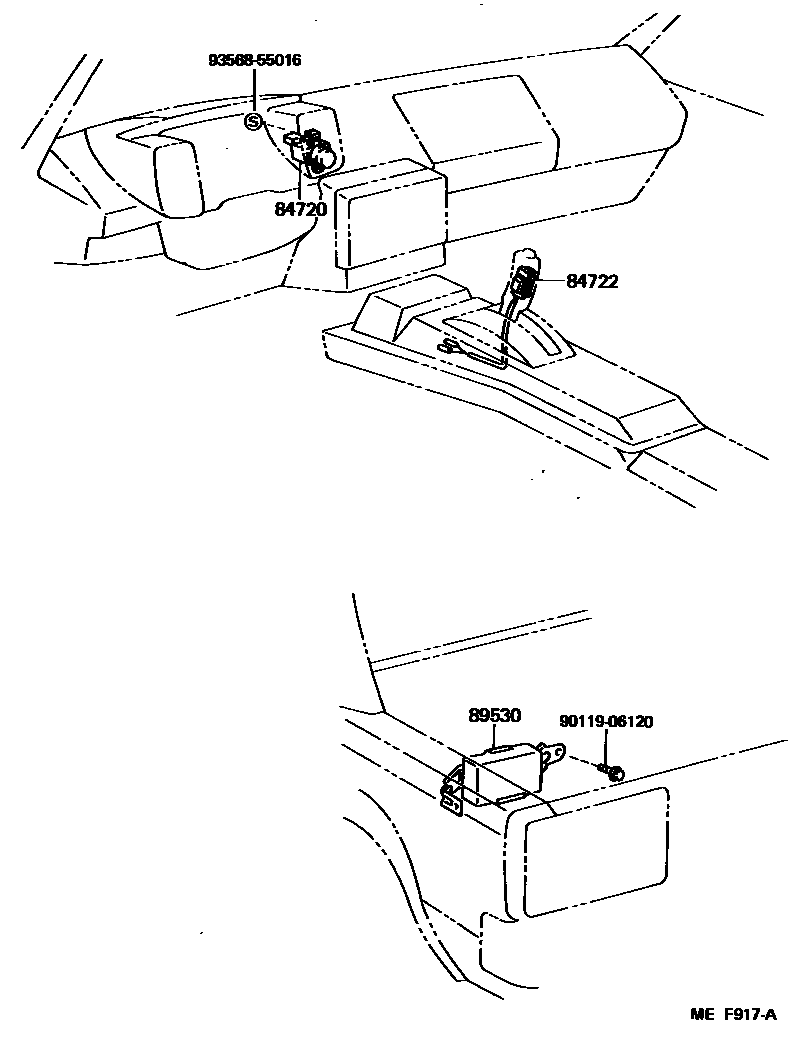

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

84720SWITCH ASSY, PATTERN SELECT

main84720-17020iAW11..4FC198508-198912

84722SWITCH, TRANSMISSION CONTROL

main84722-17020iAW11..4FC198508-198608

main84722-17040-01iAW11..4FC198608-198803

BLACK,BLACK,TRIM1#

sub84722-17040

main84722-17040-01iAW11..4FC198803-198808

BLACK,TRIM2#

sub84722-17040

main84722-17040-02iAW11..4FC198808-198912

RED,TRIM3#

sub84722-17040

main84722-17040-04iAW11..4FC198803-198912

DARK BLUE,TRIM8#

sub84722-17040

main84722-17040-04iAW11..4FC198608-198803

BLUE,DARK BLUE,TRIM8#

sub84722-17040

main84722-17040-05iAW11..4FC198803-198808

BEIGE,TRIM4#

sub84722-17040

main84722-17040-05iAW11..4FC198608-198803

BEIGE,BEIGE,TRIM4#

sub84722-17040

main84722-17040-11iAW11..4FC198808-198912

BLACK,TRIM2#

sub84722-17040

89530COMPUTER ASSY, TRANSMISSION CONTROL

main89530-17030iAW11..4FC198508-198608

DENSO

main89530-17040iAW11..4FC198508-198608

AISIN

main89530-17100iAW11..4FC198608-198708

main89530-17140iAW11..4FC..GT198708-198912

main89530-17180iAW11..4FC..SPC198708-198912

9011906120

main90119-06120

9356855016

main93568-55016

5 parts on this diagram · 2 diagrams in section
