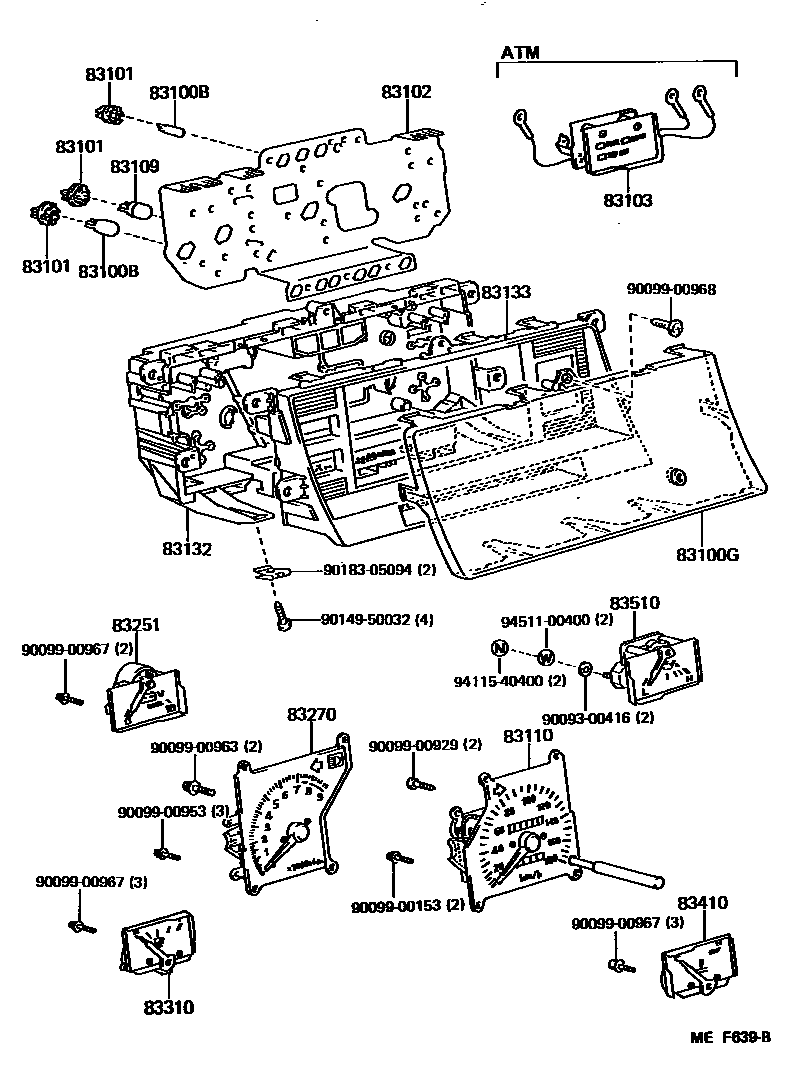

METER

0001 1 0002 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018iAW11198412-198803

12V 1.2W W/O SOCKET,12V 1.4W

main90981-11018iAW11198803-198912

12V 1.2W W/O SOCKET

main99132-12034iAW11198412-198803

12V 3.4W,12V 3.4W

main99132-12034iAW11198803-198912

12V 3.4W

83100GGLASS, COMBINATION METER

main83138-17010iAW11198412-198912

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030iAW11198412-198912

12V 3.4W

main83101-14040iAW11198412-198912

12V 1.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-17090iAW11..5F..GT198412-198912

sub83247-17130

main83247-17110iAW11..4FC..GT198508-198912

sub83247-17150

main83247-17430iAW11..5F..SPC198708-198912

main83247-17450iAW11..4FC..SPC198708-198912

83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

main83247-17250iAW11..4FC198508-198608

main83247-17350iAW11..4FC198608-198912

83109BULB, COMBINATION METER, NO.2

main83109-24030iAW11198803-198912

12V3.4W W(GREEN CAP)

main83109-24030iAW11198412-198803

12V3.4W W(GREEN CAP),12V 3.4W,W/GREEN CAP

83110SPEEDOMETER ASSY

main83110-17030iAW11..USA198412-198608

main83110-17031iAW11..USA198608-198912

main83110-17040iAW11..CND198412-198608

main83110-17041iAW11..CND198608-198912

83132CASE, COMBINATION METER

main83132-17050iAW11198412-198912

83133PLATE, COMBINATION METER, NO.1

main83133-17010iAW11..SPC..CND198412-198912

main83133-17030iAW11..SPC..USA198708-198912

83251METER, VOLTAGE

main83251-17010iAW11198412-198608

main83251-17030iAW11..5F198608-198912

83270TACHOMETER ASSY, ENGINE

main83242-17050iAW11..USA198412-198608

main83242-17070iAW11..CND198412-198508

main83242-17090iAW11..CND198508-198608

main83242-17170iAW11..GT..USA198608-198912

main83242-17190iAW11..GT..CND198608-198912

main83242-17230iAW11..SPC..CND198708-198912

main83242-17270iAW11..SPC..USA198708-198912

83310GAGE ASSY, FUEL RECEIVER

main83243-17010iAW11198412-198608

main83243-17030iAW11198608-198912

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-17010iAW11198412-198608

main83244-17030iAW11198608-198912

83510GAGE ASSY, OIL PRESSURE RECEIVER

main83246-17010iAW11198412-198608

main83246-17030iAW11198608-198912

9009300416

main90093-00416

9009900153

main90099-00153

9009900929

main90099-00929

9009900953

main90099-00953

9009900963

main90099-00963

9009900967

main90099-00967

9009900968

main90099-00968

9014950032

main90149-50032

9018305094

main90183-05094

9411540400

main94115-40400

9451100400

main94511-00400

25 parts on this diagram · 2 diagrams in section
