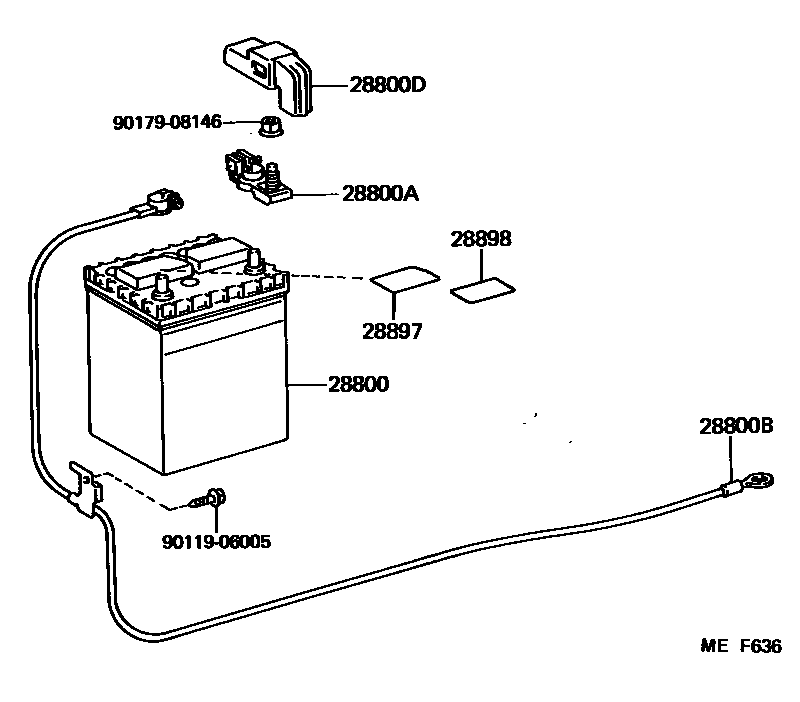

BATTERY & BATTERY CABLE

28800BATTERY

main28800-43220i4AG#..AW11198412-198803

55D23L,55D23L-MF

sub28800-74170

main28800-43220i4AG#..AW11198803-198912

55D23L

sub28800-74170

28800ATERMINAL, BATTERY POSITIVE

main90982-05028i4AGZE..AW11198708-198912

sub90982-05057

main90982-05029i4AGELC..AW11198412-198608

sub90982-05030

main90982-05030i4AGELC..AW11198608-198912

28800BCABLE, BATTERY TO GROUND

main82123-17010i4AGELC..AW11198412-198608

main82123-17060i4AG#..AW11198608-198912

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12150i4AGZE..AW11198708-198912

main82821-24010i4AGELC..AW11198412-198912

28897PLATE, BATTERY CAUTION

main28897-38010i4AG#..AW11..CND198412-198912

28898PLATE, BATTERY

main28898-26010i4AG#..AW11..USA198412-198912

9011906005

main90119-06005

9017908146

main90179-08146

8 parts on this diagram · 1 diagram in section
