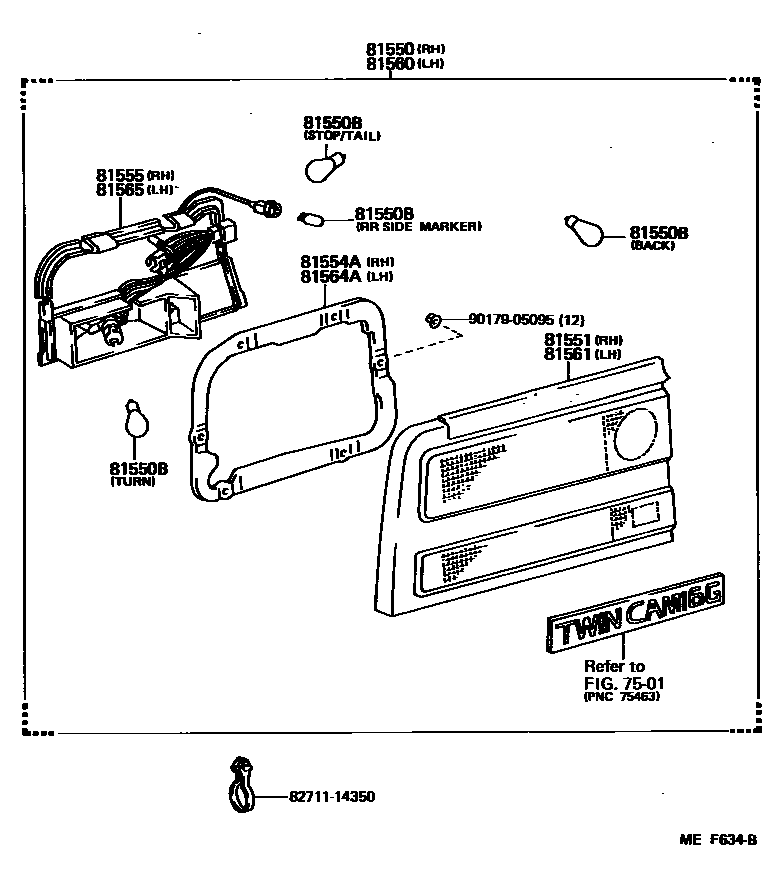

REAR COMBINATION LAMP

0001 1 0002 1

7501

81550LAMP ASSY, REAR COMBINATION, RH

main81550-17031iAW11198608-198912

main81550-80222iAW11198412-198608

sub81550-17030

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11020×2iAW11198412-198803

12V 3.8W,12V 3.8W(RR SIDE MARKER)

main99132-11075×2iAW11198608-198803

12V 7.5W,12V 7.5W(LICENSE)

main99132-11270×4iAW11198412-198803

12V 27W,12V 27W(TURN & BACK)

main99132-21270×2iAW11198803-198912

12V 27/8W

81551LENS, REAR COMBINATION LAMP, RH

main81551-17010iAW11198412-198608

main81551-17040iAW11198608-198911

81554AGASKET, REAR COMBINATION LAMP BODY, NO.1 RH

main81554-17010iAW11198412-198912

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-17030iAW11198412-198608

main81555-17031iAW11198608-198912

81560LAMP ASSY, REAR COMBINATION, LH

main81560-17031iAW11..USA198608-198912

main81560-17051iAW11..CND198608-198912

sub75471-17030

main81560-80227iAW11..USA198412-198608

sub81560-17030

main81560-80254iAW11..CND198412-198608

sub81560-17050

81561LENS, REAR COMBINATION LAMP, LH

main81561-17010iAW11..USA198412-198608

main81561-17011iAW11..USA198608-198911

main81561-17050iAW11..CND198412-198608

main81561-17051iAW11..CND198608-198912

sub75471-17030

81564AGASKET, REAR COMBINATION LAMP BODY, NO.1 LH

main81554-17010iAW11198412-198912

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-17030iAW11..USA198412-198608

main81565-17031iAW11..USA198608-198912

main81565-17050iAW11..CND198412-198608

main81565-17051iAW11..CND198608-198912

8271114350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14350

9017905095

main90179-05095

12 parts on this diagram · 2 diagrams in section
