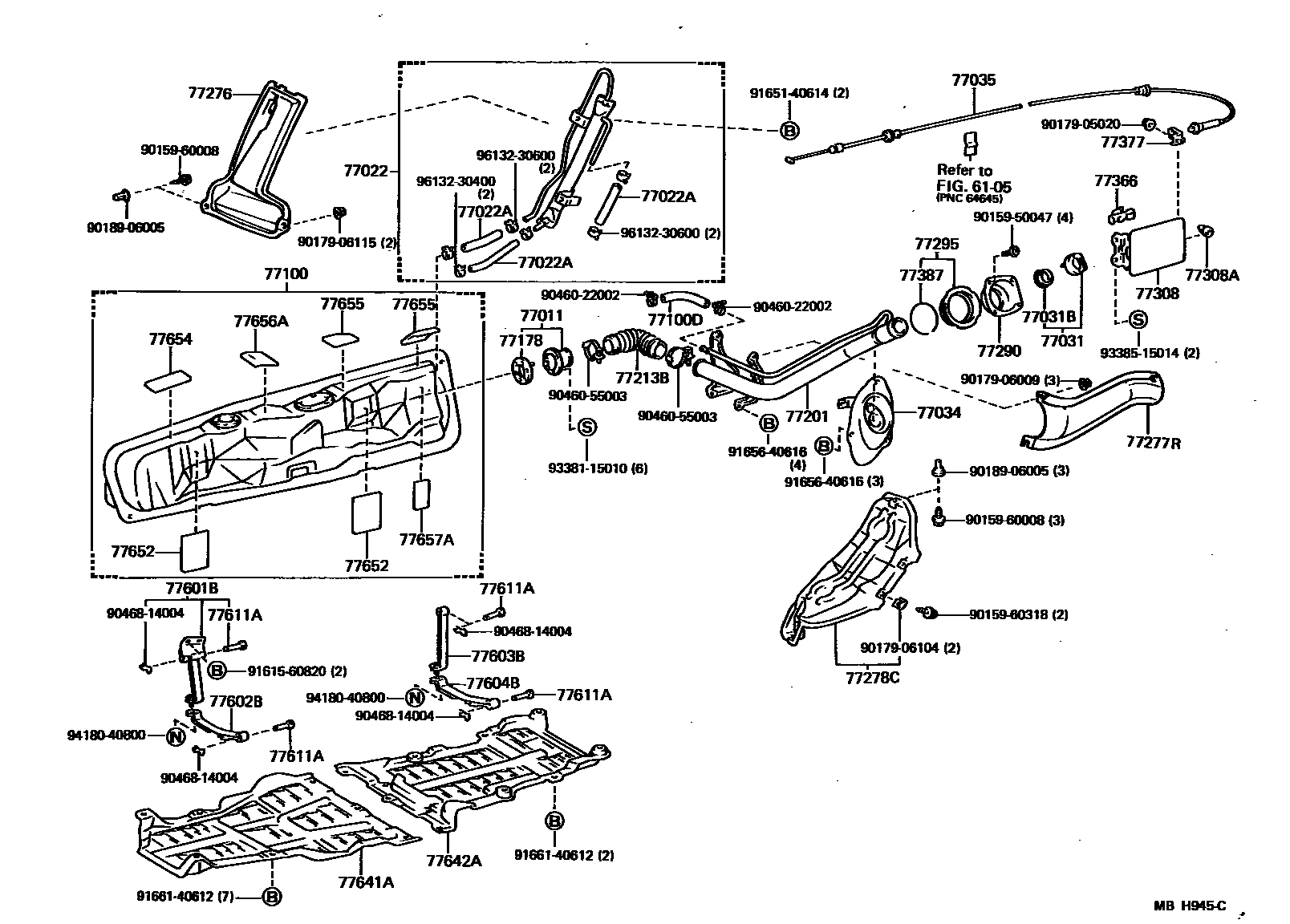

FUEL TANK & TUBE
6105
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77022SEPARATOR SUB-ASSY, FUEL EVAPORATIVE
77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
L=200(*H,L=120)
L=200
77031CAP ASSY, FUEL TANK
77031BGASKET (FOR FUEL TANK CAP)
77034SHIELD SUB-ASSY, FUEL TANK FILLER PIPE
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100TANK ASSY, FUEL
77100DHOSE, FUEL, NO.1(FOR FUEL TANK)
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77201PIPE SUB-ASSY, FUEL TANK INLET
77213BHOSE, FUEL TANK TO FILLER PIPE
L=248
77276PROTECTOR, FUEL HOSE
77277RPROTECTOR, FUEL TANK FILLER PIPE
77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77295SHIELD, FUEL FILLER PIPE
77308COVER SUB-ASSY, FUEL INLET BOX
77308ACUSHION(FOR FUEL INLET BOX COVER)
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77387RING, FUEL INLET BOX
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77603BBAND SUB-ASSY, FUEL TANK, NO.2 RH
77604BBAND SUB-ASSY, FUEL TANK, NO.2 LH
77611APIN (FOR FUEL TANK BAND)
77641APROTECTOR, FUEL TANK, NO.1
77642APROTECTOR, FUEL TANK, NO.2
77652CUSHION, FUEL TANK, NO.1
77654CUSHION, FUEL TANK, NO.2
77655CUSHION, FUEL TANK, NO.3
77656ACUSHION, FUEL TANK, NO.4
77657ACUSHION, FUEL TANK, NO.5
9015950047
9015960008
9015960318
9017905020
9017906009
9017906104
9017906115
9018906005
9046022002
9046055003
9046814004
9161560820
9165140614
9165640616
9166140612
9338115010
9338515014
9418040800
9613230400
9613230600
55 parts on this diagram · 3 diagrams in section
