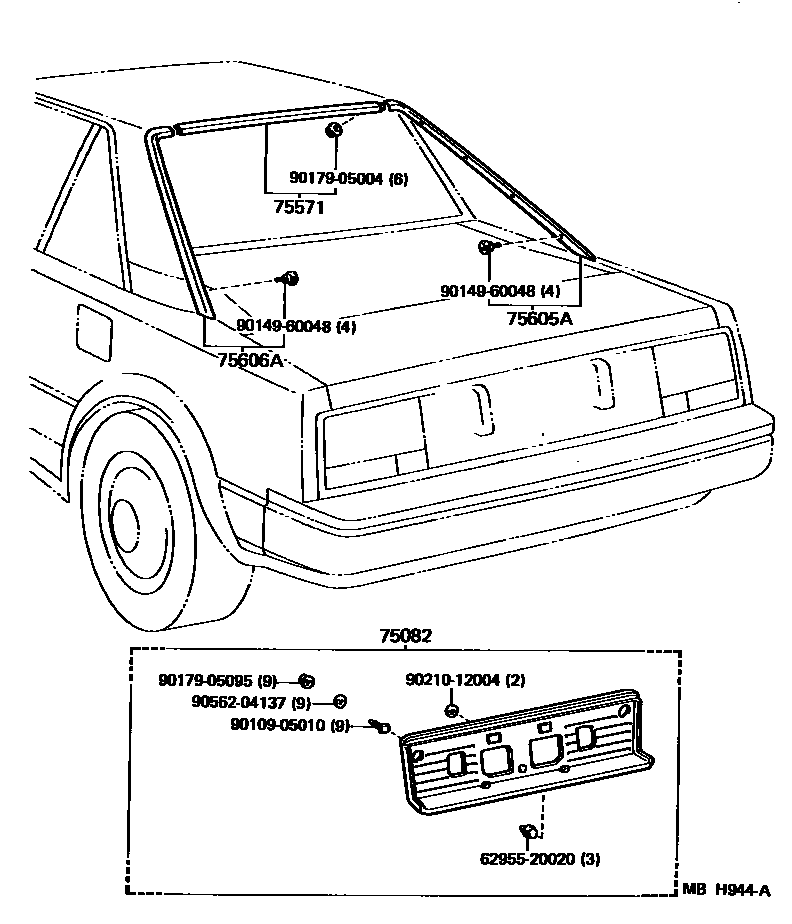

REAR MOULDING

0001 1 0002 1

75082PANEL SUB-ASSY, LOWER BACK FINISH, CENTER

main75082-17011iAW11198608-198912

main75082-19315iAW11198412-198608

sub75082-17010

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75507-17010iAW11198608-198912

main75507-19015iAW11198412-198608

sub75507-17010

75605AMOULDING SUB-ASSY, QUARTER OUTSIDE, RH

main75605-17010iAW11198608-198912

main75605-17020iAW11198608-198803

W/RR VISOR

main75605-17020iAW11198803-198912

W(SPOILER)

main75605-19045iAW11198412-198608

sub75605-17010

main75605-19055iAW11198508-198608

W/RR VISOR

sub75605-17020

75606AMOULDING SUB-ASSY, QUARTER OUTSIDE, LH

main75606-17010iAW11198608-198912

main75606-17020iAW11198803-198912

W(SPOILER)

main75606-17020iAW11198608-198803

W/RR VISOR

main75606-19035iAW11198412-198608

sub75606-17010

main75606-19045iAW11198508-198608

W/RR VISOR

sub75606-17020

6295520020SEAL, ROOF SIDE VENT

main62955-20020

9010905010

main90109-05010

9014960048

main90149-60048

9017905004

main90179-05004

9017905095

main90179-05095

9021012004

main90210-12004

9056204137

main90562-04137

11 parts on this diagram · 2 diagrams in section
