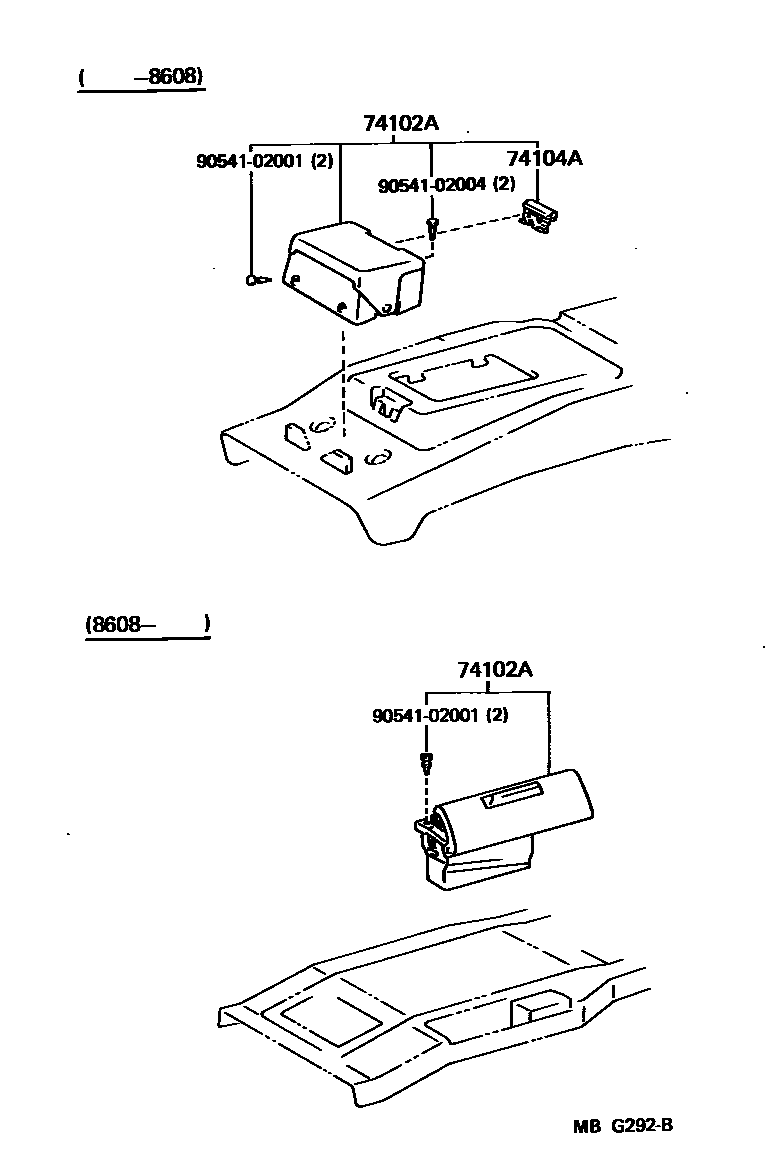

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-17010-01iAW11198412-198608

BLACK,BLACK,TRIM1#

sub74102-17010

main74102-17010-06iAW11198412-198508

SEPIA BROWN,SEPIA BROWN,TRIM4#

sub74102-17010

main74102-17020-01iAW11198803-198808

BLACK,TRIM2#

sub74102-17020

main74102-17020-01iAW11198608-198803

BLACK,BLACK,TRIM1#

sub74102-17020

main74102-17020-02iAW11198808-198912

RED,TRIM3#

sub74102-17020

main74102-17020-04iAW11198608-198803

BLUE,DARK BLUE,TRIM8#

sub74102-17020

main74102-17020-04iAW11198803-198912

DARK BLUE,TRIM8#

sub74102-17020

main74102-17020-05iAW11198803-198808

DARK BEIGE,TRIM4#

sub74102-17020

main74102-17020-05iAW11198608-198803

BEIGE,DARK BEIGE,TRIM4#

sub74102-17020

main74102-17020-11iAW11198808-198912

BLACK,TRIM2#

sub74102-17020

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-17010-01iAW11198412-198608

BLACK,BLACK,TRIM1#

main74104-17010-06iAW11198412-198508

SEPIA BROWN,SEPIA BROWN,TRIM4#

9054102001

main90541-02001

9054102004

main90541-02004

4 parts on this diagram · 1 diagram in section
