SEAT BELT & CHILD RESTRAINT SEAT

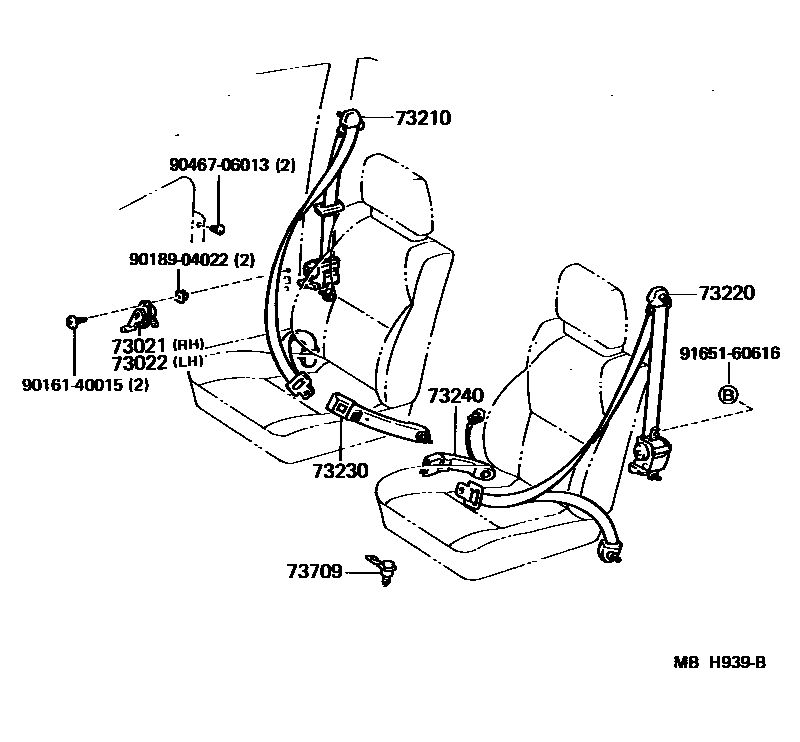

Parts diagram
73021LEVER SUB-ASSY, SEAT BELT COMFORT, RH
main73021-17010i198412-198804
sub73021-17011
main73021-17011i198804-198912
73022LEVER SUB-ASSY, SEAT BELT COMFORT, LH
main73022-17010i198412-198804
sub73022-17011
main73022-17011i198804-198912
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-17031-01i198803-198808
BLACK,TRIM2#
sub73210-17031
main73210-17031-01i198412-198803
BLACK,BLACK,TRIM1#
sub73210-17031
main73210-17031-04i198608-198803
BLUE,DARK BLUE,TRIM8#
sub73210-17031
main73210-17031-04i198803-198808
DARK BLUE,TRIM8#
sub73210-17031
main73210-17031-05i198803-198808
DARK BEIGE,TRIM4#
sub73210-17031
main73210-17031-05i198608-198803
BEIGE,DARK BEIGE,TRIM4#
sub73210-17031
main73210-17031-06i198412-198508
SEPIA BROWN,SEPIA BROWN,TRIM4#
sub73210-17031
main73210-17032-01i198808-198912
BLACK,TRIM2#
sub73210-17032
main73210-17032-02i198808-198912
RED,TRIM3#
sub73210-17032
main73210-17032-04i198808-198912
DARK BLUE,TRIM8#
sub73210-17032
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-17030-01i198412-198803
BLACK,BLACK,TRIM1#
sub73220-17030
main73220-17030-01i198803-198808
BLACK,TRIM2#
sub73220-17030
main73220-17030-04i198608-198803
BLUE,DARK BLUE,TRIM8#
sub73220-17030
main73220-17030-04i198803-198808
DARK BLUE,TRIM8#
sub73220-17030
main73220-17030-05i198803-198808
DARK BEIGE,TRIM4#
sub73220-17030
main73220-17030-05i198608-198803
BEIGE,DARK BEIGE,TRIM4#
sub73220-17030
main73220-17030-06i198412-198508
SEPIA BROWN,SEPIA BROWN,TRIM4#
sub73220-17030
main73220-17031-01i198808-198912
BLACK,TRIM2#
sub73220-17031
main73220-17031-02i198808-198912
RED,TRIM3#
sub73220-17031
main73220-17031-04i198808-198912
DARK BLUE,TRIM8#
sub73220-17031
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-17030-01i198412-198803
BLACK,BLACK,TRIM1#
sub73230-17030
main73230-17030-01i198803-198808
BLACK,TRIM2#
sub73230-17030
main73230-17030-02i198808-198912
RED,TRIM3#
sub73230-17030
main73230-17030-04i198608-198803
BLUE,DARK BLUE,TRIM8#
sub73230-17030
main73230-17030-04i198803-198912
DARK BLUE,TRIM8#
sub73230-17030
main73230-17030-05i198608-198803
BEIGE,DARK BEIGE,TRIM4#
sub73230-17030
main73230-17030-05i198803-198808
DARK BEIGE,TRIM4#
sub73230-17030
main73230-17030-06i198412-198508
SEPIA BROWN,SEPIA BROWN,TRIM4#
sub73230-17030
main73230-17030-11i198808-198912
BLACK,TRIM2#
sub73230-17030
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-17010-01i198803-198808
BLACK,TRIM2#
sub73240-17010
main73240-17010-01i198412-198803
BLACK,BLACK,TRIM1#
sub73240-17010
main73240-17010-02i198808-198912
RED,RED,TRIM3#
sub73240-17010
main73240-17010-04i198803-198912
DARK BLUE,TRIM8#
sub73240-17010
main73240-17010-04i198608-198803
BLUE,DARK BLUE,TRIM8#
sub73240-17010
main73240-17010-05i198803-198808
DARK BEIGE,TRIM4#
sub73240-17010
main73240-17010-05i198608-198803
BEIGE,DARK BEIGE,TRIM4#
sub73240-17010
main73240-17010-06i198412-198508
SEPIA BROWN,SEPIA BROWN,TRIM4#
sub73240-17010
main73240-17010-11i198808-198912
BLACK,TRIM2#
sub73240-17010
73709BRACKET SUB-ASSY, TETHER ANCHOR
main73709-20010i198808-198912
9016140015
main90161-40015
9018904022
main90189-04022
9046706013
main90467-06013
9165160616
main91651-60616

11 parts on this diagram · 1 diagram in section
