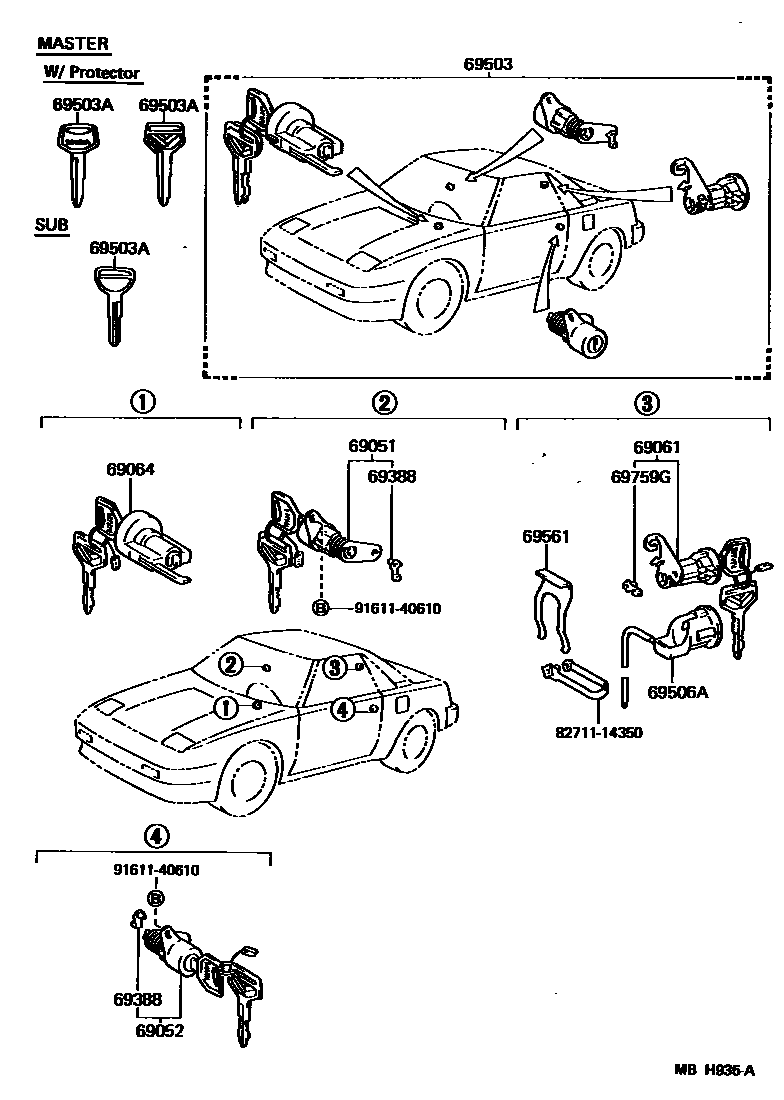

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-17020iAW11198412-198912

sub69051-17030

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-17020iAW11198412-198912

69061CYLINDER & KEY SET, LUGGAGE LOCK

main69055-17020iAW11198412-198608

main69055-17021iAW11198608-198912

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-12130iAW11198612-198912

sub69057-32121

main69057-17010iAW11198412-198612

sub69057-16061

69388SNAP, ROD(FOR DOOR LOCK)

main69759-30040iAW11198412-198912

RH

main69759-30050iAW11198412-198912

LH

69503CYLINDER SET, LOCK

main69005-17020iAW11198412-198608

main69005-17021-01iAW11..CP198608-198708

BLACK,BLACK,TRIM1#

sub69005-17021

main69005-17021-04iAW11..CP198608-198708

BLUE,DARK BLUE,TRIM8#

sub69005-17021

main69005-17021-05iAW11..CP198608-198708

BEIGE,DARK BEIGE,TRIM4#

sub69005-17021

main69005-17022-01iAW11..CP198803-198808

BLACK,TRIM2#

sub69005-17022

main69005-17022-01iAW11..CP198708-198803

BLACK,BLACK,TRIM1#

sub69005-17022

main69005-17022-02iAW11..CP198808-198912

RED,TRIM3#

sub69005-17022

main69005-17022-04iAW11..CP198803-198912

DARK BLUE,TRIM8#

sub69005-17022

main69005-17022-04iAW11..CP198708-198803

BLUE,DARK BLUE,TRIM8#

sub69005-17022

main69005-17022-05iAW11..CP198803-198808

DARK BEIGE,TRIM4#

sub69005-17022

main69005-17022-05iAW11..CP198708-198803

BEIGE,DARK BEIGE,TRIM4#

sub69005-17022

main69005-17022-11iAW11..CP198808-198912

BLACK,TRIM2#

sub69005-17022

main69005-17060-01iAW11..TBR198608-198708

BLACK,BLACK,TRIM1#

sub69005-17060

main69005-17060-04iAW11..TBR198608-198708

BLUE,DARK BLUE,TRIM8#

sub69005-17060

main69005-17060-05iAW11..TBR198608-198708

BEIGE,DARK BEIGE,TRIM4#

sub69005-17060

main69005-17061-01iAW11..TBR198803-198808

BLACK,TRIM2#

sub69005-17061

main69005-17061-01iAW11..TBR198708-198803

BLACK,BLACK,TRIM1#

sub69005-17061

main69005-17061-02iAW11..TBR198808-198912

RED,TRIM3#

sub69005-17061

main69005-17061-04iAW11..TBR198708-198803

BLUE,DARK BLUE,TRIM8#

sub69005-17061

main69005-17061-04iAW11..TBR198803-198912

DARK BLUE,TRIM8#

sub69005-17061

main69005-17061-05iAW11..TBR198708-198803

BEIGE,DARK BEIGE,TRIM4#

sub69005-17061

main69005-17061-05iAW11..TBR198803-198808

DARK BEIGE,TRIM4#

sub69005-17061

main69005-17061-11iAW11..TBR198808-198912

BLACK,TRIM2#

sub69005-17061

69503AKEY, BLANK

main90999-00085iAW11198412-198803

MASTER KEY,MASTER

main90999-00085iAW11198803-198912

MASTER KEY

main90999-00094iAW11198803-198912

SUB KEY

main90999-00094iAW11198412-198803

SUB KEY,SUB

main90999-00106iAW11198803-198912

MASTER KEY,W(*68)

sub90999-00212

main90999-00106iAW11198412-198803

MASTER KEY,W(*68),MASTER,W/PROTECTOR

sub90999-00212

69506AHOSE SUB-ASSY, LUGGAGE DOOR LOCK CYLINDER

main69506-17010iAW11198412-198912

69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69561-17010iAW11198412-198803

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-24090iAW11198412-198912

8271114350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14350

9161140610

main91611-40610

12 parts on this diagram · 2 diagrams in section
