FRONT DOOR LOCK & HANDLE

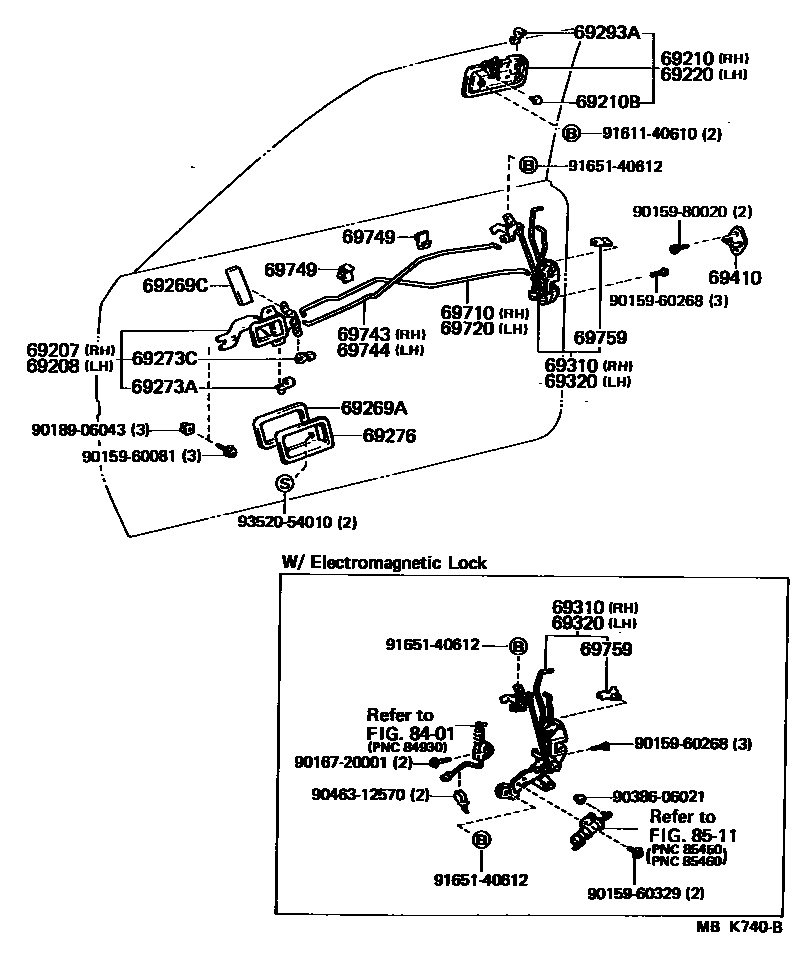

Parts diagram
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69206-12080-01i198412-198803
BLACK,BLACK,TRIM1#
sub69206-12080
main69206-12080-01i198803-198808
BLACK,TRIM2#
sub69206-12080
main69206-12080-05i198608-198803
BEIGE,DARK BEIGE,TRIM4#
sub69206-12080
main69206-12080-05i198803-198808
DARK BEIGE,TRIM4#
sub69206-12080
main69206-12080-06i198412-198508
SEPIA BROWN,SEPIA BROWN,TRIM4#
sub69206-12080
main69206-12080-11i198808-198912
BLACK,TRIM2#
sub69206-12080
main69206-12080-14i198608-198803
BLUE,DARK BLUE,TRIM8#
sub69206-12080
main69206-12080-14i198803-198912
DARK BLUE,TRIM8#
sub69206-12080
main69206-12080-22i198808-198912
RED,TRIM3#
sub69206-12080
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69205-12080-01i198412-198803
BLACK,BLACK,TRIM1#
sub69205-12080
main69205-12080-01i198803-198808
BLACK,TRIM2#
sub69205-12080
main69205-12080-05i198803-198808
DARK BEIGE,TRIM4#
sub69205-12080
main69205-12080-05i198608-198803
BEIGE,DARK BEIGE,TRIM4#
sub69205-12080
main69205-12080-06i198412-198508
SEPIA BROWN,SEPIA BROWN,TRIM4#
sub69205-12080
main69205-12080-11i198808-198912
BLACK,TRIM2#
sub69205-12080
main69205-12080-14i198803-198808
DARK BLUE,TRIM8#
sub69205-12080
main69205-12080-14i198608-198803
BLUE,DARK BLUE,TRIM8#
sub69205-12080
main69205-12080-22i198808-198912
RED,TRIM3#
sub69205-12080
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-14080i198412-198912
main69210-17020-01i198808-198912
BLACK,202
main69210-17020-02i198808-198912
RED MICA,3H4
main69210-17020-03i198808-198912
GRAY M.,167
main69210-17020-04i198808-198912
BLUE MICA,8E3
main69210-17020-08i198808-198912
SUPER WHITE 3,043
main69210-17020-12i198808-198912
SUPER RED 2,3E5
main69210-17020-13i198808-198912
SILVER M.,21E
main69210-17020-14i198808-198912
L. BLUE MICA M.,8G2
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
main90541-03021i198412-198912
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69220-14080i198412-198912
main69220-17020-01i198808-198912
BLACK,202
main69220-17020-02i198808-198912
RED MICA,3H4
main69220-17020-03i198808-198912
GRAY M.,167
main69220-17020-04i198808-198912
BLUE MICA,8E3
main69220-17020-08i198808-198912
SUPER WHITE 3,043
main69220-17020-12i198808-198912
SUPER RED 2,3E5
main69220-17020-13i198808-198912
SILVER M.,21E
main69220-17020-14i198808-198912
L. BLUE MICA M.,8G2
69269ASEAL, DOOR INSIDE HANDLE NO.1(FOR FRONT DOOR)
main69269-14010i198412-198506
main69269-17010i198506-198912
69269CSEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR)
main69289-12010i198412-198707
main69289-17010i198707-198912
69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
main69759-20020i198412-198912
LH
main69759-20030i198412-198912
RH
69273CSNAP, DOOR INSIDE HANDLE LINK
main69759-20060i198412-198912
RH
main69759-20070i198412-198912
LH
69276BEZEL, FRONT DOOR INSIDE HANDLE
main69277-14030-01i198803-198808
BLACK,TRIM2#
sub69277-14030
main69277-14030-01i198412-198803
BLACK,BLACK,TRIM1#
sub69277-14030
main69277-14030-11i198808-198912
BLACK,TRIM2#
sub69277-14030
main69277-14030-14i198803-198912
DARK BLUE,TRIM8#
sub69277-14030
main69277-14030-14i198608-198803
BLUE,DARK BLUE,TRIM8#
sub69277-14030
main69277-14030-15i198608-198803
BEIGE,DARK BEIGE,TRIM4#
sub69277-14030
main69277-14030-15i198803-198808
DARK BEIGE,TRIM4#
sub69277-14030
main69277-14030-26i198412-198508
SEPIA BROWN,SEPIA BROWN,TRIM4#
sub69277-14030
main69277-14030-42i198808-198912
RED,TRIM3#
sub69277-14030
main69277-17010-01i198608-198803
W/LEATHER SEAT,BLACK,BLACK,TRIM1#
sub69277-17010
main69277-17010-01i198803-198808
W(LEATHER SEAT),BLACK,TRIM2#
sub69277-17010
main69277-17010-11i198808-198912
W(LEATHER SEAT),BLACK,TRIM2#
sub69277-17010
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
main69293-12030i198412-198912
RH
main69293-12040i198412-198912
LH
69310LOCK ASSY, FRONT DOOR, RH
main69310-17020i198412-198708
main69310-17040i198412-198608
W/*EL
main69310-17041i198608-198803
W/*EL
main69310-17060i198708-198912
main69310-17090i198803-198912
W(POWER WINDOW)
69320LOCK ASSY, FRONT DOOR, LH
main69320-17020i198412-198708
main69320-17040i198412-198603
W/*EL
main69320-17041i198603-198803
W/*EL
main69320-17060i198708-198912
main69320-17090i198803-198912
W(POWER WINDOW)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-87001i198412-198912
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
main69711-17010i198412-198912
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
main69712-17010i198412-198912
69743LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH
main69733-17010i198412-198912
69744LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH
main69734-17010i198412-198912
69749CLAMP, FRONT DOOR LOCK LINK
main69749-17020i198803-198912
main69749-20010i198412-198803
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
main69759-20020i198412-198912
RH,LOCKING LINK
main69759-20030i198412-198912
LH,LOCKING LINK
main69759-20040i198412-198803
LH,OPEN LINK
main69759-20040i198803-198912
RH,OPEN LINK
main69759-20050i198803-198912
LH,OPEN LINK
main69759-20050i198412-198803
RH,OPEN LING
8401
8511
9015960081
main90159-60081
9015960268
main90159-60268
9015960329
main90159-60329
9015980020
main90159-80020
9016720001
main90167-20001
9018906043
main90189-06043
9038606021
main90386-06021
9046312570
main90463-12570
9161140610
main91611-40610
9165140612
main91651-40612
9352054010
main93520-54010

33 parts on this diagram · 1 diagram in section
