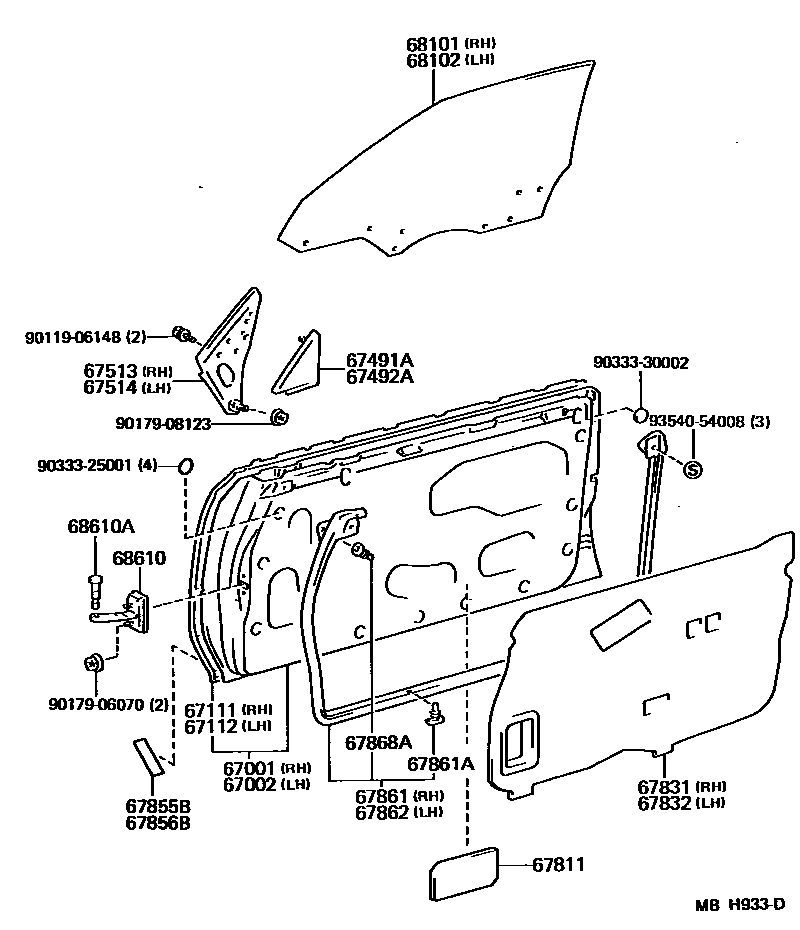

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67513BRACKET, FRONT DOOR MIRROR, RH
67514BRACKET, FRONT DOOR MIRROR, LH
67811PAD, FRONT DOOR SILENCER
200 X 110
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67855BPROTECTOR, FRONT DOOR PANEL, RH
67856BPROTECTOR, FRONT DOOR PANEL, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
LH
67862WEATHERSTRIP, FRONT DOOR, LH
67868ACLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TT,T=5.0,*TT,T=5.0
*TT,T=5.0
*TT,T=5.0,BRONZE,*TT,T=5.0,BRONZE
*TT,T=5.0,BRONZE
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TT,T=5.0,*TT,T=5.0
*TT,T=5.0
*TT,T=5.0,BRONZE
*TT,T=5.0,BRONZE,*TT,T=5.0,BRONZE
68610CHECK ASSY, FRONT DOOR
9011906148
main90119-06148
9017906070
main90179-06070
9017908123
main90179-08123
9033325001
main90333-25001
9033330002
main90333-30002
9354054008
main93540-54008
27 parts on this diagram · 3 diagrams in section
