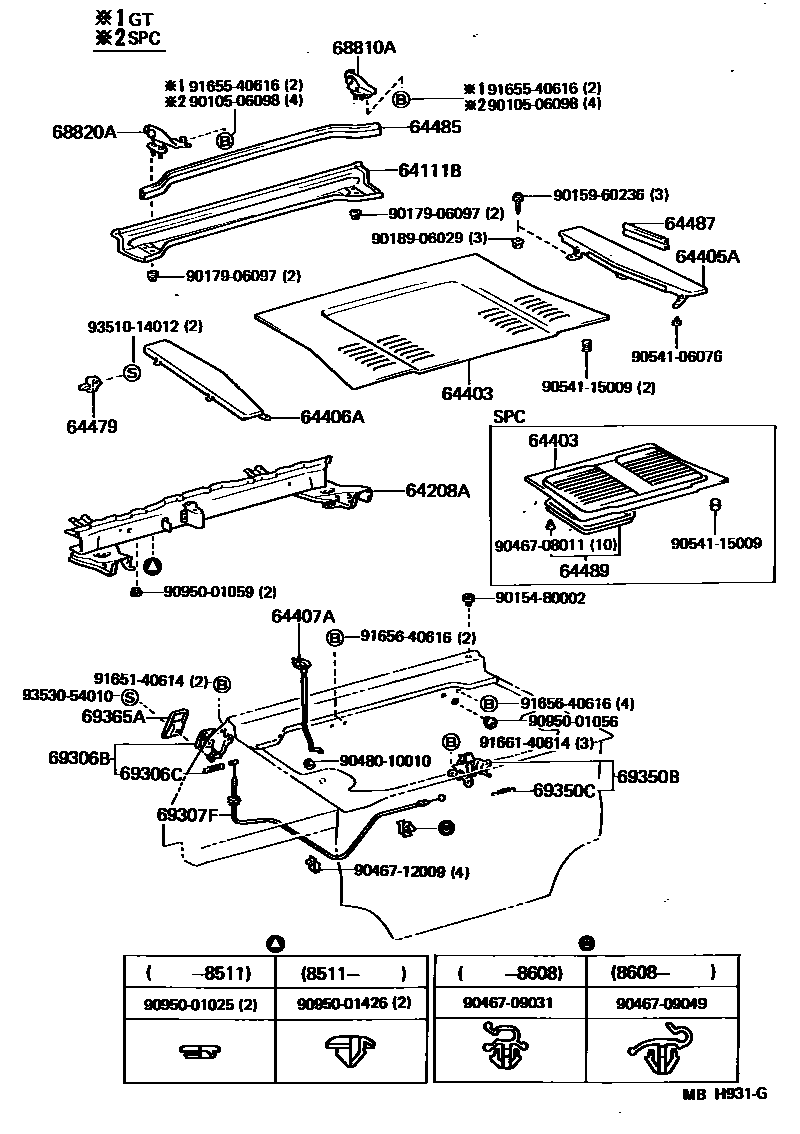

ENGINE HOOD & LOCK
64111BPANEL, UPPER BACK, OUTER
64208AMEMBER SUB-ASSY, ROOM PARTITION CROSS
64403HOOD SUB-ASSY, ENGINE
64405APANEL SUB-ASSY, ENGINE HOOD SIDE, RH
64406APANEL SUB-ASSY, ENGINE HOOD SIDE, LH
64407ASUPPORT SUB-ASSY, ENGINE HOOD
64479CLIP, ENGINE HOOD SIDE PANEL
64485SEAL, ENGINE HOOD TO UPPER BACK
64487SEAL, ENGINE HOOD TO HOOD SIDE
64489SEAL, ENGINE HOOD TO INTER COOLER
68810AHINGE ASSY, ENGINE HOOD, RH
68820AHINGE ASSY, ENGINE HOOD, LH
69306BLEVER SUB-ASSY, ENGINE HOOD LOCK CONTROL
69306CSPRING, TORSION(FOR ENGINE HOOD LOCK CONTROL LEVER)
69307FCABLE ASSY, ENGINE HOOD LOCK CONTROL
69350BLOCK ASSY, ENGINE HOOD
69350CSPRING, TENSION(FOR ENGINE HOOD LOCK)
69365ABEZEL, ENGINE HOOD LOCK CONTROL
9010506098
9015480002
9015960236
9017906097
9018906029
9046708811
main90467-08811
9046709031
9046709049
9046712009
9048010010
9054106076
9054115009
9095001025
9095001056
9095001059
9095001426
9165140614
9165540616
9165640616
9166140614
9351014012
9353054010
40 parts on this diagram · 1 diagram in section
