FLOOR INSULATOR

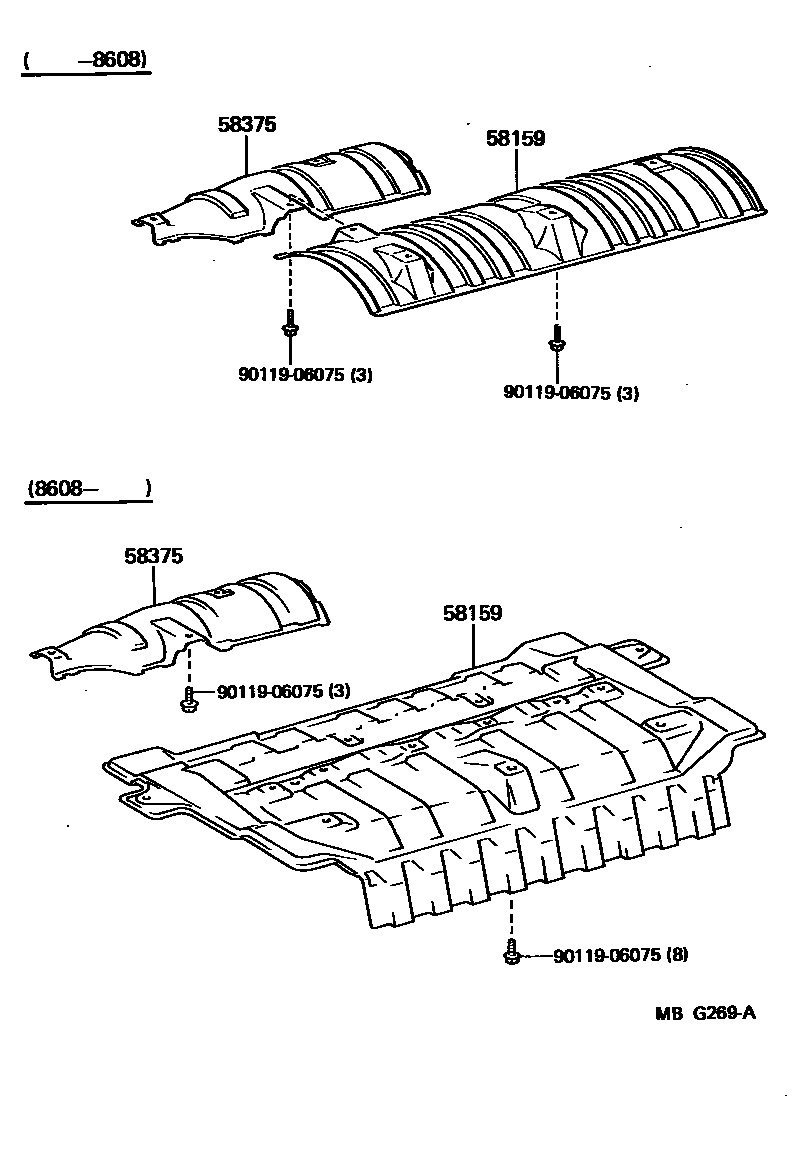

Parts diagram

58159INSULATOR, MAIN MAFFLAR HEAT

main58327-17010i198412-198608

main58327-17011i198608-198912

58375INSULATOR, REAR FLOOR HEAT, NO.1

main58045-17010i198412-198912

9011906075

main90119-06075

3 parts on this diagram · 1 diagram in section
