HOOD LOCK & HINGE

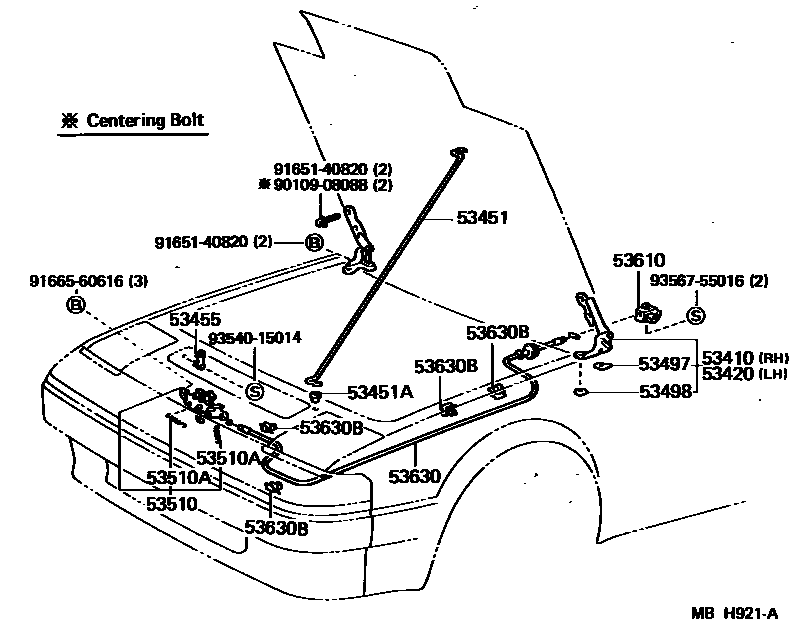

Parts diagram

53410HINGE ASSY, HOOD, RH

main53410-17010i198412-198808

main53410-17011i198808-198912

53420HINGE ASSY, HOOD, LH

main53420-17010i198412-198808

main53420-17011i198808-198912

53451ROD, HOOD SUPPORT

main53451-17010i198412-198912

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-01264i198412-198912

53455CLAMP, HOOD SUPPORT ROD

main53455-17010i198412-198912

53497PAD, HOOD HINGE, NO.1

main53497-17010i198803-198808

main53497-17010i198412-198803

T=1.0

main53497-17011i198808-198912

53498PAD, HOOD HINGE, NO.2

main53498-12010i198412-198803

T=1.0

main53498-12010i198803-198808

main53498-12011i198808-198912

53510LOCK ASSY, HOOD

main53510-17020i198412-198912

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09029i198412-198912

WD=0.9,WD=0.9

main90506-20043i198412-198912

WD=2.0

53610LEVER ASSY, HOOD LOCK RELEASE

main53601-17010-01i198803-198808

BLACK,TRIM2#

main53601-17010-01i198412-198803

BLACK,BLACK,TRIM1#

main53601-17010-02i198808-198912

RED,TRIM3#

main53601-17010-04i198608-198803

BLUE,DARK BLUE,TRIM8#

main53601-17010-04i198803-198912

DARK BLUE,TRIM8#

main53601-17010-05i198608-198803

BEIGE,DARK BEIGE,TRIM4#

main53601-17010-05i198803-198808

DARK BEIGE,TRIM4#

main53601-17010-06i198412-198608

SEPIA BROWN,SEPIA BROWN,TRIM4#

main53601-17010-11i198808-198912

BLACK,TRIM2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-17020i198412-198912

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90467-09031i198412-198912

BLACK

main90467-09043i198412-198912

DARK BROWN

9010908088

main90109-08088

9165140820

main91651-40820

9166560616

main91665-60616

9354015014

main93540-15014

9356755016

main93567-55016

17 parts on this diagram · 1 diagram in section
