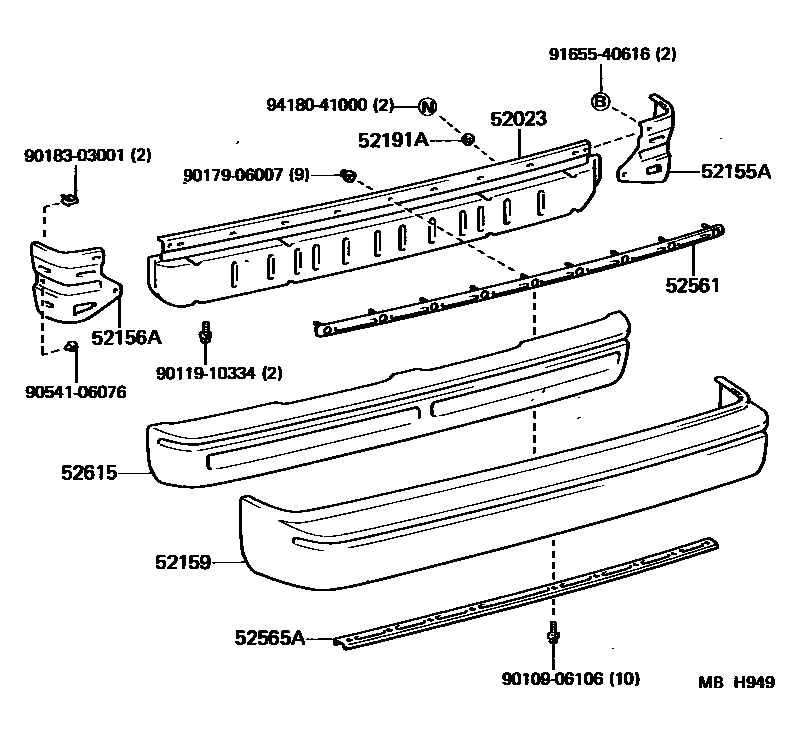

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-17020iAW11¥30,500198412-198912

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-17010iAW11¥1,310198412-198912

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-17010iAW11¥1,310198412-198912

52159COVER, REAR BUMPER

main52159-17900iAW11¥30,800198412-198912

52191ASEAL, REAR BUMPER ARM

main52191-17010iAW11¥310198412-198912

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-17010iAW11¥3,000198412-198912

52565ARETAINER, REAR BUMPER, LOWER

main52565-17010iAW11¥3,250198412-198803

52615ABSORBER, REAR BUMPER ENERGY

main52615-17010iAW11¥14,500198412-198912

9010906106

main90109-06106¥170

9011910334

main90119-10334¥200

9017906007

main90179-06007¥80

9018303001

main90183-03001¥170

9054106076

main90541-06076¥230

9165540616

main91655-40616¥120

9418041000

main94180-41000¥100

15 parts on this diagram · 2 diagrams in section
