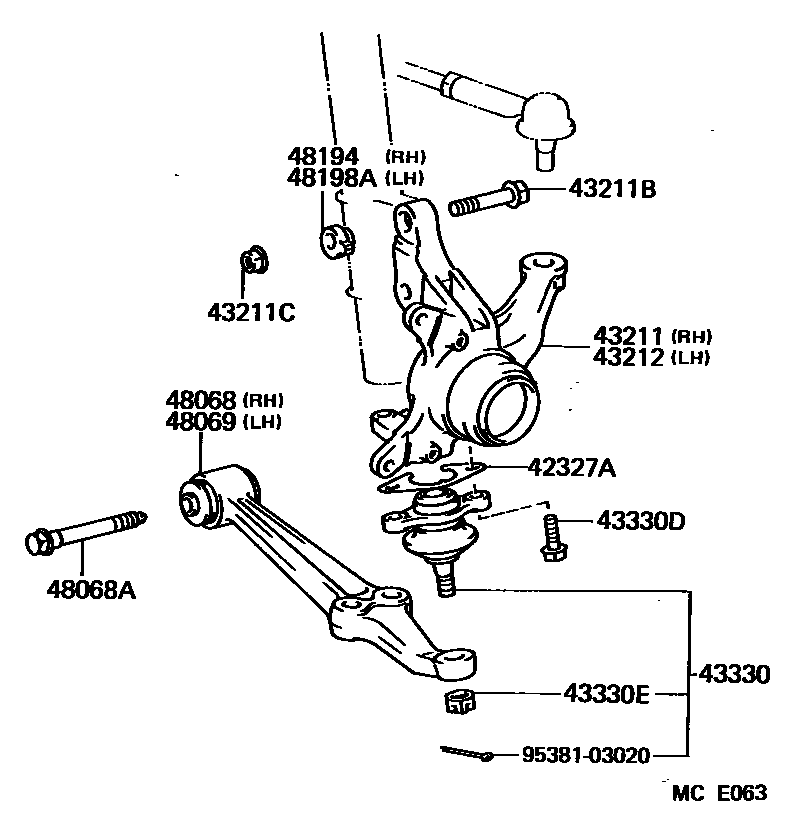

FRONT AXLE ARM & STEERING KNUCKLE

42327ASPACER, FRONT AXLE CARRIER

main42327-17020iAW11198608-198912

43211KNUCKLE, STEERING, RH

main43211-17010iAW11198412-198608

sub43211-17H00

main43211-17020iAW11198608-198912

43211BBOLT (FOR ABSORBER SETTING)

main90105-12042iAW11198412-198912

sub90105-12263

43211CNUT (FOR ABSORBER SETTING)

main90179-12025iAW11198412-198912

43212KNUCKLE, STEERING, LH

main43212-17010iAW11198412-198608

sub43212-17H00

main43212-17020iAW11198608-198912

43330JOINT ASSY, LOWER BALL, FRONT

main43330-19025iAW11198412-198912

43330DBOLT (FOR FRONT LOWER BALL JOINT)

main90105-10129iAW11198412-198912

43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)

main94146-71200iAW11198412-198912

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-17010iAW11198412-198912

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90119-12083iAW11198412-198912

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48068-17010iAW11198412-198912

48194CAM, CAMBER ADJUST, RH

main48194-16010iAW11198412-198507

sub48194-16011

main48194-16011iAW11198507-198912

48198ACAM, CAMBER ADJUST, LH

main48198-16010iAW11198412-198507

sub48198-16011

main48198-16011iAW11198507-198912

9538103020

main95381-03020

14 parts on this diagram · 1 diagram in section
