BRAKE BOOSTER & VACUUM TUBE

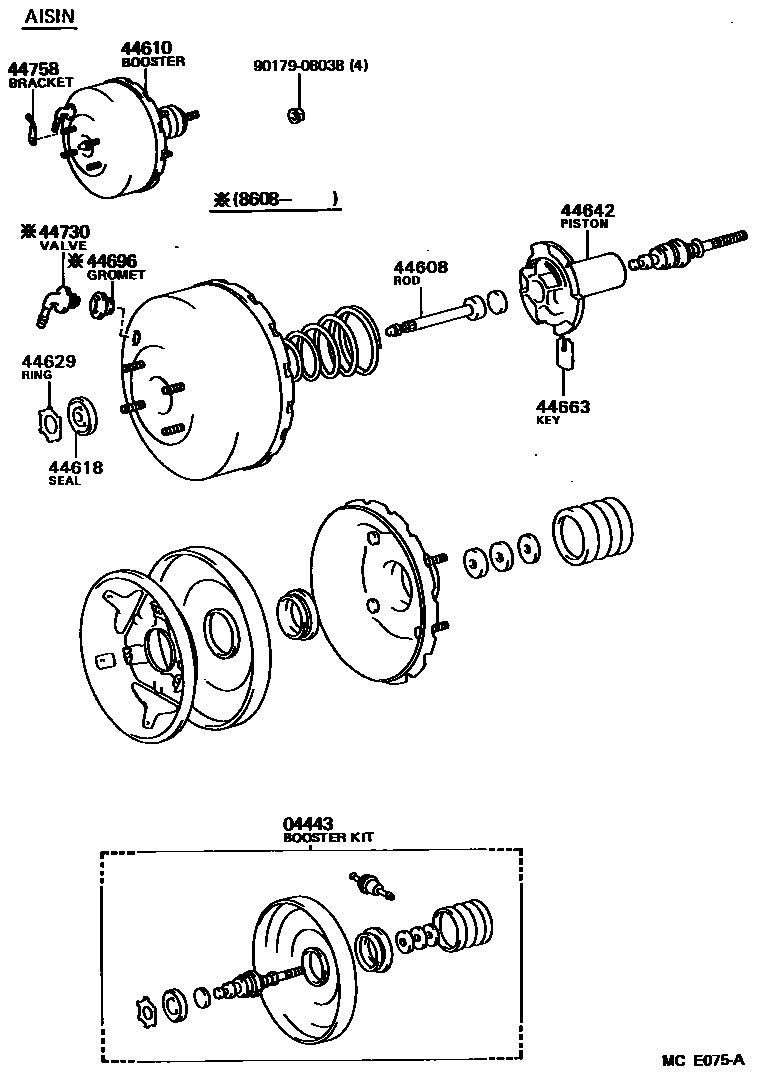

Parts diagram

04443BOOSTER KIT, BRAKE

main04443-17020i¥10,400198412-198608

AISIN

main04443-17030i¥10,500198412-198608

JKC

main04443-17050i¥10,500198608-198912

JKC

main04443-17090i¥10,500198608-198708

AISIN

sub04443-17091¥10,500

main04443-17091i¥10,500198708-198912

AISIN

main04443-17160i¥11,600198708-198912

AISIN

main04443-17170i¥13,200198708-198912

JKC

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520i¥2,660198412-198912

AISIN

main44606-20800i¥1,260198708-198912

AISIN

main44608-20810i¥2,010198708-198803

JKC

main44608-32020i¥2,670198412-198912

JKC

44610BOOSTER ASSY, BRAKE

main44610-17020i198412-198608

main44610-17060i¥43,300198608-198708

sub44610-17061¥42,400

main44610-17061i¥42,400198708-198912

main44610-17160i¥63,400198708-198912

44618SEAL, BOOSTER BODY

main44621-14030i¥400198708-198912

main44621-28120i¥590198412-198912

44629RING, CIRCULAR INTERNAL

main44628-28120i¥390198412-198912

main44628-60010i¥440198708-198912

44642PISTON, BRAKE BOOSTER

main44642-16050i¥3,820198412-198608

main44642-20800i¥2,740198708-198912

main44642-32010i¥6,100198608-198912

44663KEY, VALVE STOPPER

main44635-12630i¥410198608-198912

main44635-20800i¥230198708-198912

main44635-28120i¥370198412-198803

44696GROMMET, CHECK VALVE

main90480-24439i¥390198608-198912

AISIN

main90480-24517i¥580198608-198912

JKC

sub90480-24015¥130

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010i¥1,820198412-198608

main44730-14050i¥1,380198608-198912

AISIN

main44730-14060i¥2,190198608-198912

JKC

sub44730-28010¥1,360

sub90480-24015¥130

44758BRACKET, VACUUM CHECK VALVE

main44758-17010i¥850198412-198608

main44758-17020i¥240198608-198912

main44758-17030i¥310198708-198912

9017908038

main90179-08038¥130

11 parts on this diagram · 5 diagrams in section
