BRAKE MASTER CYLINDER

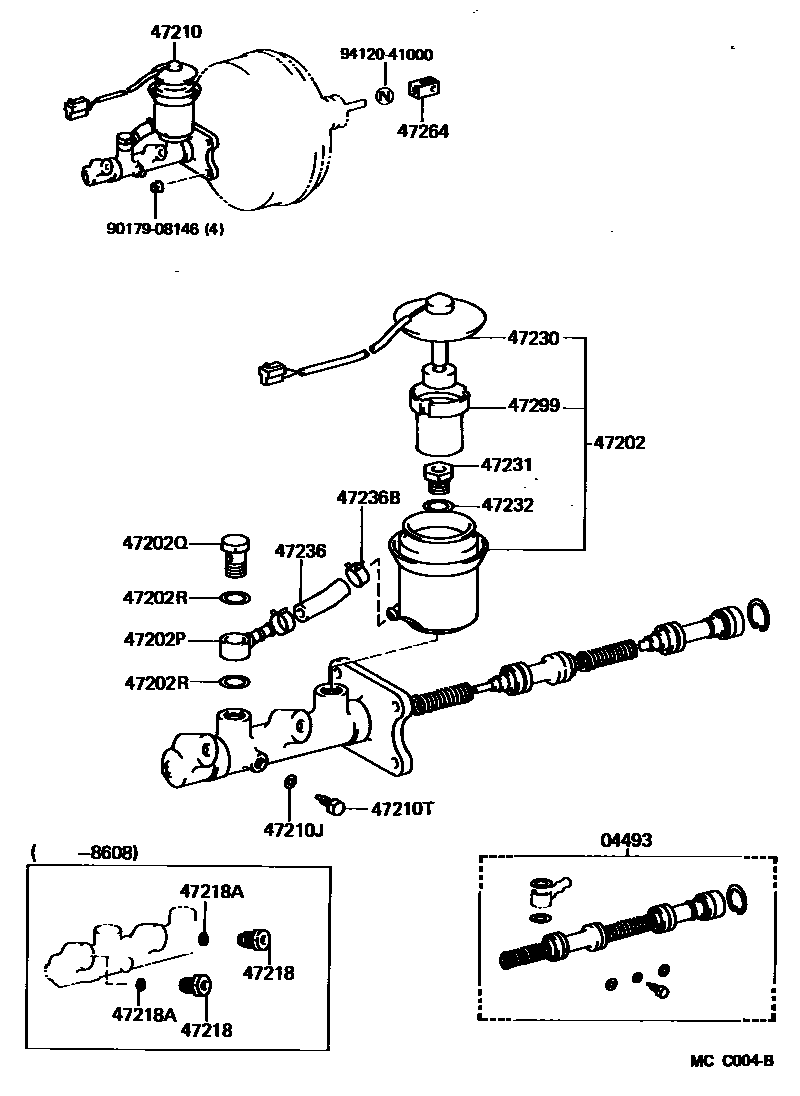

Parts diagram
04493CYLINDER KIT, BRAKE MASTER
main04493-17020i198412-198912
47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
main47202-17010i198412-198608
main47202-17030i198608-198912
47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)
main90405-10003i198412-198912
47202QBOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)
main90401-16002i198412-198912
47202RGASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)
main90430-16242i198412-198912
47210CYLINDER ASSY, MASTER, W/O BOOSTER
main47201-17020i198412-198608
main47201-17040i198608-198912
47210JGASKET(FOR MASTER CYLINDER)
main90430-06104i198412-198912
47210TBOLT(FOR BRAKE MASTER CYLINDER)
main90109-06008i198412-198912
47218PLUG, MASTER CYLINDER FLUID OUTLET
main47218-12040i198412-198608
47218AGASKET(FOR FLUID OUTLET PLUG)
main90430-09253i198412-198608
47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
main84460-20051i198412-198912
47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET
main47231-30010i198412-198912
47232WASHER, BRAKE RESERVOIR SET BOLT
main47232-30010i198412-198912
47236TUBE, RESERVOIR BRAKE
main47234-14010i198412-198912
47236BCLAMP(FOR RESERVOIR TUBE)
main90467-16001i198412-198912
47264CLEVIS, MASTER CYLINDER PUSH ROD
main47264-10080i198412-198912
47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR
main47299-14010i198412-198912
9017908146
9412041000

19 parts on this diagram · 1 diagram in section
