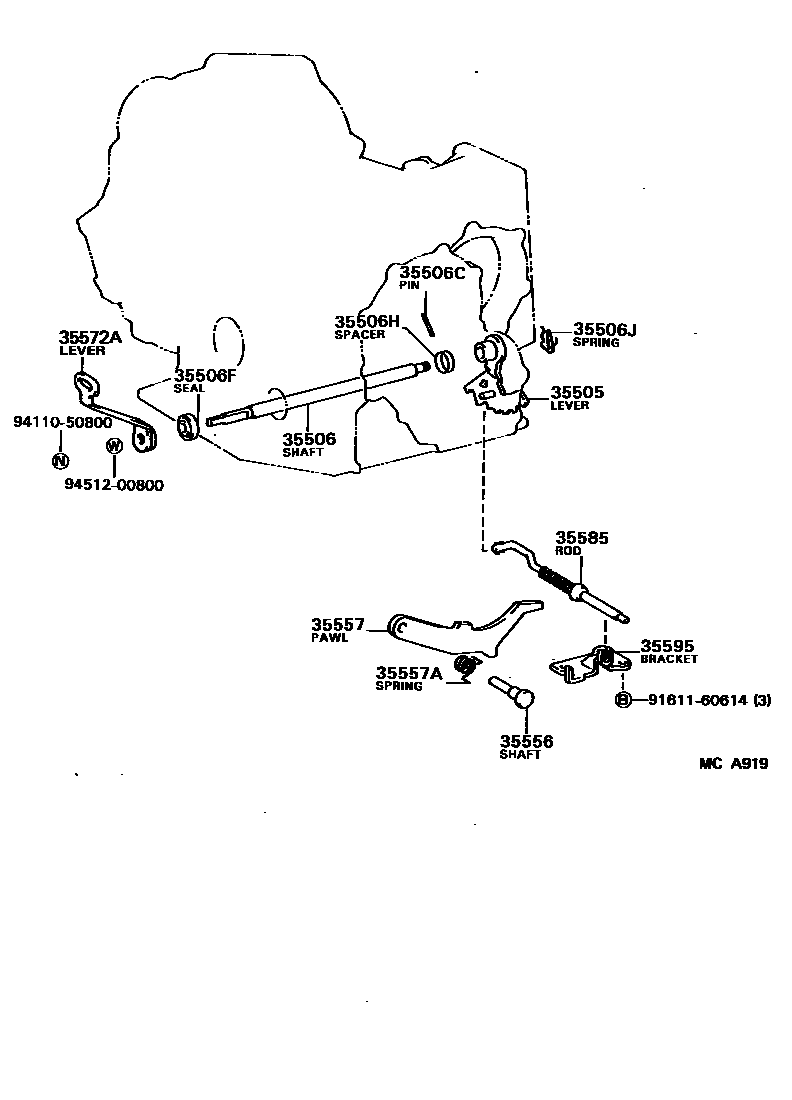

THROTTLE LINK & VALVE LEVER (ATM)

0001 1 0002 1 0003 1

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-12020iAW11..4FC198608-198801

sub35505-12030

main35505-12030iAW11..4FC198801-198811

sub35505-20040

sub35409-20010

main35505-20040iAW11..4FC198811-198912

main35505-32011iAW11..4FC198508-198608

sub35505-20010

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35561-12020iAW11..4FC198608-198912

main35561-32010iAW11..4FC198508-198608

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iAW11..4FC198508-198912

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iAW11..4FC198508-198912

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20006iAW11..4FC198508-198912

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iAW11..4FC198508-198608

main90524-11001iAW11..4FC198608-198912

35556SHAFT, PARKING LOCK PAWL

main35556-12020iAW11..4FC198608-198912

main35556-32010iAW11..4FC198508-198608

35557PAWL, PARKING LOCK

main35557-12020iAW11..4FC198608-198912

main35557-32020iAW11..4FC198508-198608

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21003iAW11..4FC198608-198912

main90508-26047iAW11..4FC198508-198608

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-17011iAW11..4FC198508-198608

main35572-17020iAW11..4FC198608-198912

35585ROD, PARKING LOCK

main35501-12010iAW11..4FC198608-198912

main35501-32010iAW11..4FC198508-198608

35595BRACKET, PARKING LOCK PAWL

main35595-32010iAW11..4FC198508-198608

9161160614

main91611-60614

9411050800

main94110-50800

9451200800

main94512-00800

15 parts on this diagram · 3 diagrams in section
