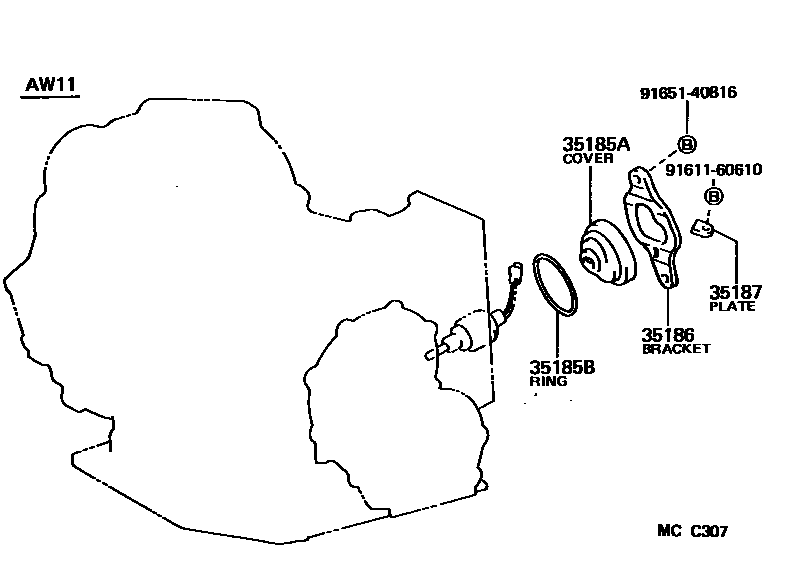

REAR OIL PUMP & GOVERNOR (ATM)

0001 1 0002 1

35185ACOVER, SPEED SENSOR

main35185-12010iAW11..4FC198608-198912

main35185-17010iAW11..4FC198508-198608

35185BRING, O (FOR SPEED SENSOR COVER)

main90301-68001iAW11..4FC198608-198912

main90301-73001iAW11..4FC198508-198608

35186BRACKET, SPEED SENSOR COVER

main35186-12010iAW11..4FC198608-198912

main35186-17010iAW11..4FC198508-198608

35187PLATE, SPEED SENSOR LOCK

main35187-12010iAW11..4FC198608-198912

main35187-17010iAW11..4FC198508-198608

9161160610

main91611-60610

9165140816

main91651-40816

6 parts on this diagram · 2 diagrams in section
