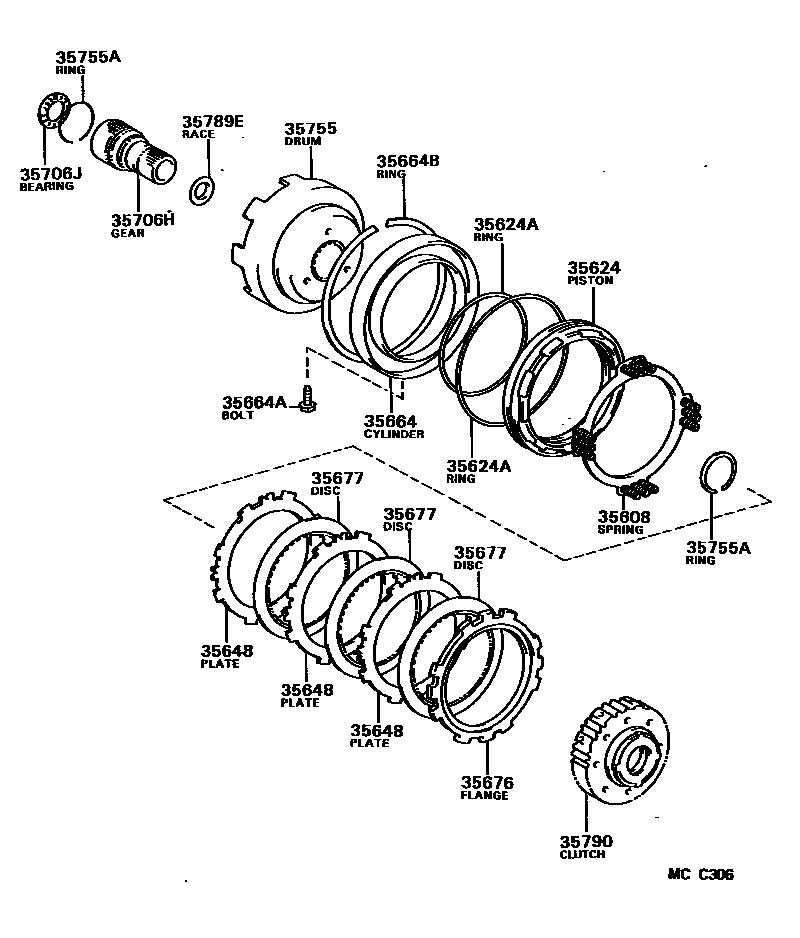

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-32010iAW11..4FC198508-198912

35624PISTON, 2ND BRAKE

main35624-32010iAW11..4FC198508-198912

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-99021iAW11..4FC198508-198912

INNER

main90301-99023iAW11..4FC198508-198912

OUTER

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35648-32010iAW11..4FC198508-198912

T=1.8

35664CYLINDER, 2ND BRAKE

main35664-32010iAW11..4FC198508-198912

35664ABOLT (FOR 2ND BRAKE CYLINDER)

main90109-06060iAW11..4FC198508-198912

35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)

main90521-99013iAW11..4FC198508-198912

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-32010iAW11..4FC198508-198912

T=3.5

sub35676-12030

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35677-32050iAW11..4FC198508-198912

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-32012iAW11..4FC198508-198907

sub35706-32030

main35706-32030iAW11..4FC198907-198912

sub35706-12010

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-30006iAW11..4FC198508-198912

35755DRUM, SUN GEAR INPUT

main35755-32020iAW11..4FC198508-198912

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-44002iAW11..4FC198508-198803

T=1.2,ID=44.0,T=1.2,ID=44.0

main90520-44002iAW11..4FC198803-198912

T=1.2,ID=44.0

main90520-47003iAW11..4FC198508-198803

T=2.3,ID=47.1,T=2.3,ID=47.1

main90520-47003iAW11..4FC198803-198912

T=2.3,ID=47.1

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-22010iAW11..4FC198508-198912

35790CLUTCH ASSY, 1 WAY

main35790-32020iAW11..4FC198508-198909

sub35790-32050

main35790-32050iAW11..4FC198909-198912

15 parts on this diagram · 1 diagram in section
