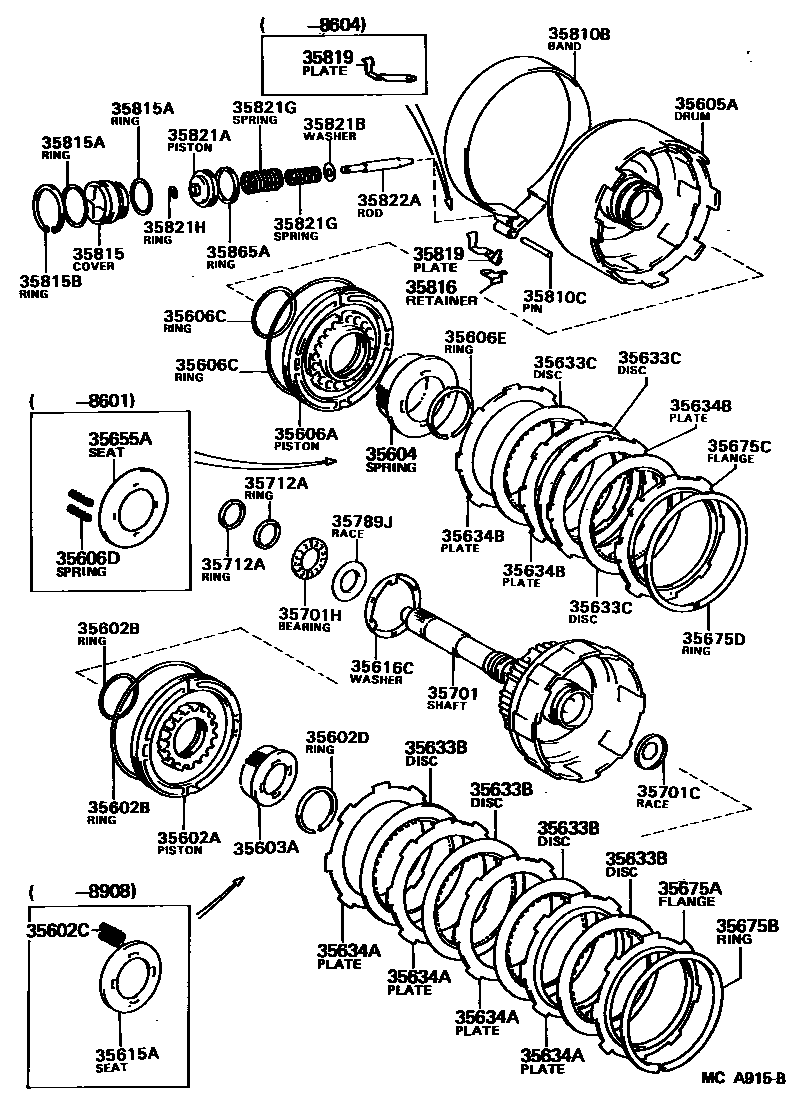

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35602BRING, O (FOR FORWARD CLUTCH PISTON)
INNER
OUTER
35602CSPRING, COMPRESSION (FOR FORWARD CLUTCH PISTON RETURN)
35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35605ADRUM SUB-ASSY, DIRECT CLUTCH
35606CRING, O (FOR DIRECT CLUTCH PISTON)
INNER
OUTER
35606DSPRING, COMPRESSION (FOR DIRECT CLUTCH PISTON RETURN)
35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)
35615ASEAT, FORWARD CLUTCH PISTON RETURN SPRING
35616CWASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM)
35633CDISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
sub35633-32032
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
T=1.8
35634BPLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
T=1.8
35655ASEAT, DIRECT CLUTCH PISTON RETURN SPRING
35675AFLANGE, FORWARD CLUTCH
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
35675CFLANGE, DIRECT CLUTCH
35675DRING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)
35701SHAFT SUB-ASSY, INPUT
35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)
35701HBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT)
OD=42.0
35712ARING, INPUT SHAFT OIL SEAL
35789JRACE, THRUST BEARING (FOR INPUT SHAFT FRONT)
35810BBAND ASSY, 2ND COAST BRAKE
35810CPIN (FOR 2ND COAST BRAKE BAND)
35815COVER, 2ND COAST BRAKE
35815ARING, O (FOR 2ND COAST BRAKE COVER)
35815BRING, HOLE SNAP (FOR 2ND COAST BRAKE COVER)
35816RETAINER, BRAKE BAND GUIDE PLATE
35819PLATE, 2ND COAST BRAKE BAND GUIDE
35821APISTON, 2ND COAST BRAKE
35821BWASHER, PLATE (FOR 2ND COAST BRAKE PISTON)
35821GSPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON)
OUTER
INNER
35821HRING, E (FOR 2ND COAST BRAKE PISTON)
W(REAR CONSOLE BOX)
35822AROD, 2ND COAST BRAKE PISTON
L=70.9,L=70.9
L=70.9
L=72.4,L=72.4
L=72.4
35865ARING, 2ND COAST BRAKE PISTON OIL SEAL
40 parts on this diagram · 1 diagram in section
