TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

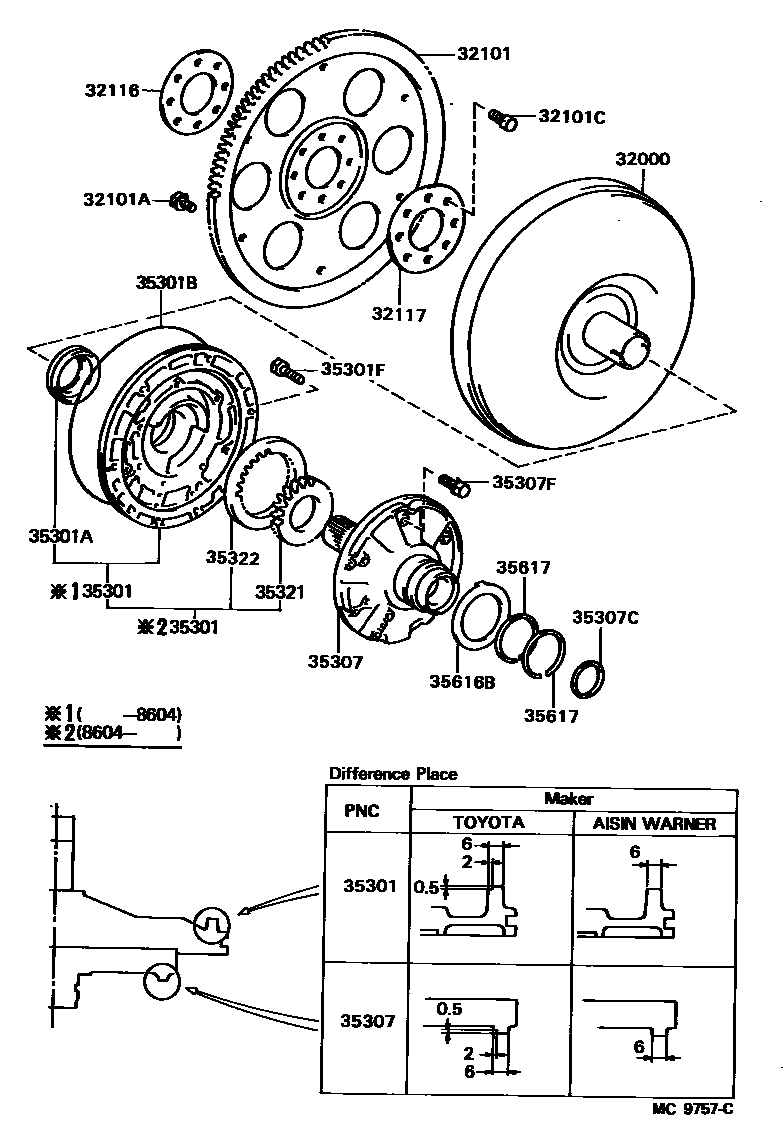

Parts diagram

32000CONVERTER ASSY, TORQUE

main32000-12101i¥135,000198608-198803

sub32000-12230¥109,000

main32000-12230i¥109,000198803-198912

main32000-17011i¥135,000198508-198608

sub32000-17012¥141,000

main32000-17020i¥135,000198708-198803

sub32000-17021¥141,000

main32000-17021i¥141,000198803-198912

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-17010i¥16,100198508-198912

main32101-17020i¥19,200198708-198912

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113i¥80198508-198912

*8-1.25PX12-8.4,OLIVE GREEN

main90119-08498i¥80198508-198912

*8-1.25PX12-8,BLACK

main90119-09009i¥160198708-198803

*9-1.25PX12.8-8.8,YELLOW

main90119-09009i¥160198803-198912

*9-1.25PX12.8-8.8,BLACK

main90119-09010i¥160198803-198912

*9-1.25PX12.8-9,OLIVE GREEN

main90119-09010i¥160198708-198803

*9-1.25PX12.8-9,GREEN

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048i¥130198508-198912

*10-1.25PX18-13

32116SPACER, DRIVE PLATE, FRONT

main32116-17010i¥780198508-198912

32117SPACER, DRIVE PLATE, REAR

main32117-17010i¥740198508-198912

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-20010i¥26,300198803-198912

main35035-20010i¥26,300198608-198803

TOYOTA

main35035-32010i¥26,400198604-198608

AISIN WARNER

main35035-32020i¥26,400198604-198608

TOYOTA

sub35035-32H00¥29,700

main35301-32031i¥26,200198508-198604

AISIN WARNER

sub35035-32010¥26,400

main35301-32040i198508-198604

TOYOTA

sub35035-32020¥26,400

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020i¥540198508-198912

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99024i¥2,050198508-198912

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08050i¥200198508-198909

*8-1.25PX28-28

main90105-08198i¥90198909-198912

*8-1.25PX28-28

35307SHAFT SUB-ASSY, STATOR

main35370-32022i¥27,000198508-198608

AISIN WARNER

sub35370-20H00¥18,100

sub35370-32H01¥19,400

main35370-32022i¥27,000198608-198912

sub35370-20H00¥18,100

sub35370-32H01¥19,400

main35370-32031i¥27,000198508-198608

TOYOTA

sub35370-32H00¥25,300

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-32020i¥700198508-198912

T=0.8,T=0.8

main35789-32030i¥740198508-198912

T=1.4,T=1.4

35307FBOLT (FOR STATOR SHAFT)

main90119-06180i¥80198508-198912

35321GEAR, FRONT OIL PUMP DRIVE

main35321-32020i¥3,720198508-198604

T=9.465-9.440

sub35321-32050¥3,880

main35321-32040i¥3,880198803-198912

T=9.440-9.456

sub35321-12070¥3,720

main35321-32040i¥3,880198604-198803

T=9.440-9.456,MARK A OR D

sub35321-12070¥3,720

main35321-32050i¥3,880198604-198803

T=9.456-9.474,MARK B OR E

sub35321-12090¥3,720

main35321-32050i¥3,880198803-198912

T=9.456-9.474

sub35321-12090¥3,720

main35321-32060i¥3,880198604-198803

T=9.474-9.490,MARK C OR F

sub35321-12110¥3,720

main35321-32060i¥3,880198803-198912

T=9.474-9.490

sub35321-12110¥3,720

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-32020i¥3,990198508-198604

T=9.465-9.440

sub35322-32050¥4,160

main35322-32040i¥4,160198803-198912

T=9.440-9.456

sub35322-12060¥3,980

main35322-32040i¥4,160198604-198803

T=9.440-9.456,MARK A OR D

sub35322-12060¥3,980

main35322-32050i¥4,160198604-198803

T=9.456-9.474,MARK B OR E

sub35322-12080¥3,980

main35322-32050i¥4,160198803-198912

T=9.456-9.474

sub35322-12080¥3,980

main35322-32060i¥4,160198604-198803

T=9.474-9.490,MARK C OR F

sub35322-12100¥3,980

main35322-32060i¥4,160198803-198912

T=9.474-9.490

sub35322-12100¥3,980

35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)

main35616-32010i¥2,070198508-198912

35617RING, CLUTCH DRUM OIL SEAL

main35617-12020i¥1,180198708-198907

sub35617-32011¥1,520

main35617-32010i¥1,400198508-198708

main35617-32011i¥1,520198907-198912

17 parts on this diagram · 1 diagram in section
