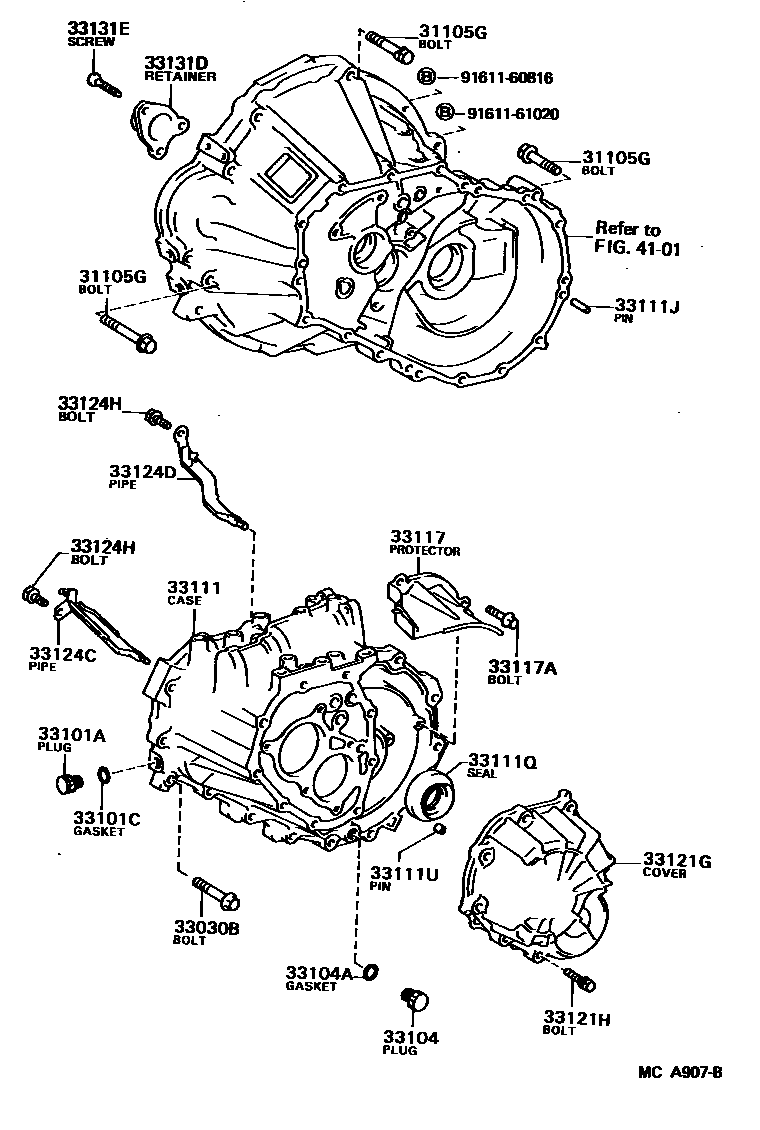

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10077iAW11..5F¥260198412-198803

*10-1.25PX43-26,*10-1.25PX43-26

main90105-10077iAW11..5F¥260198803-198912

*10-1.25PX43-26

main90119-12063iAW11..5F..GT¥410198803-198912

*12-1.25PX80-30

main90119-12063iAW11..5F..GT¥410198412-198803

*12-1.25PX80-30,*12-1.25PX80-30

main90119-12109iAW11..5F..SPC¥410198708-198803

*12-1.25PX102-30,*12-1.25PX102-30

main90119-12109iAW11..5F..SPC¥410198803-198912

*12-1.25PX102-30

main90119-12168iAW11..5F¥170198412-198803

*12-1.25PX55-30,*10-1.25PX55-30

main90119-12168iAW11..5F¥170198803-198912

*12-1.25PX55-30

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08064iAW11..5F..GT¥190198412-198912

*8-1.25PX51-28

sub90105-08353¥100

main90105-08086iAW11..5F..GT¥110198904-198912

*8-1.25PX45-27.5

main90105-08126iAW11..5F..SPC¥190198708-198912

*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iAW11..5F¥180198412-198912

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iAW11..5F¥110198412-198912

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iAW11..5F¥180198412-198912

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iAW11..5F¥110198412-198912

33111CASE, MANUAL TRANSMISSION

main33101-17020iAW11..5F..SPC¥39,500198708-198907

sub33101-17030¥40,900

sub33590-17021¥3,040

main33101-17030iAW11..5F..SPC¥40,900198907-198912

sub33101-17031¥40,800

main33111-17010iAW11..5F..GT¥35,600198412-198912

sub33111-17011¥32,400

sub33124-12021¥720

sub33125-12011¥170

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iAW11..5F..SPC¥120198412-198803

L=23,OD=8,OD=8,L=23

main90250-08054iAW11..5F..GT¥120198803-198912

L=23,OD=8

main90250-12005iAW11..5F..SPC¥240198708-198803

L=24,OD=12,OD=12,L=14

main90250-12005iAW11..5F..SPC¥240198803-198912

L=24,OD=12

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34008iAW11..5F..GT¥310198412-198912

sub90311-34017¥270

main90311-50010iAW11..5F..SPC¥580198708-198912

sub90311-50027¥580

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iAW11..5F..GT¥120198412-198912

L=11,OD=11

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-17010iAW11..5F..GT¥1,950198412-198912

sub33117-16010¥730

main33117-20020iAW11..5F..SPC¥1,950198708-198912

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040iAW11..5F¥180198412-198912

sub91641-H0820¥90

33121GCOVER, MANUAL TRANSMISSION CASE

main33102-12020iAW11..5F..GT¥15,600198412-198912

sub33102-12021¥9,800

main33102-20040iAW11..5F..SPC¥15,400198708-198912

sub33102-33010¥15,100

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08089iAW11..5F..SPC¥190198708-198912

sub90105-08273¥170

main91611-60835iAW11..5F..GT¥90198412-198912

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-12010iAW11..5F..GT¥1,190198412-198912

main33124-20020iAW11..5F..SPC¥1,200198708-198912

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12020iAW11..5F..GT¥1,190198412-198912

main33124-20030iAW11..5F..SPC¥1,200198708-198912

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08648iAW11..5F..SPC¥140198709-198912

sub90119-08830¥100

main91611-60818iAW11..5F..SPC¥140198708-198709

sub90119-08830¥100

main91611-60820iAW11..CP..5F¥200198412-198912

sub91611-G0820¥160

33131DRETAINER, BEARING, FRONT

main33131-12070iAW11..5F¥1,780198412-198708

sub33131-12071¥1,760

main33131-12071iAW11..5F..GT¥1,760198708-198912

sub33131-12080¥1,760

33131ESCREW(FOR BEARING RETAINER FRONT)

main90149-60028iAW11..5F..GT¥70198412-198912

4101

9161160816

main91611-60816¥230

9161161020

main91611-61020¥240

22 parts on this diagram · 2 diagrams in section
