TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

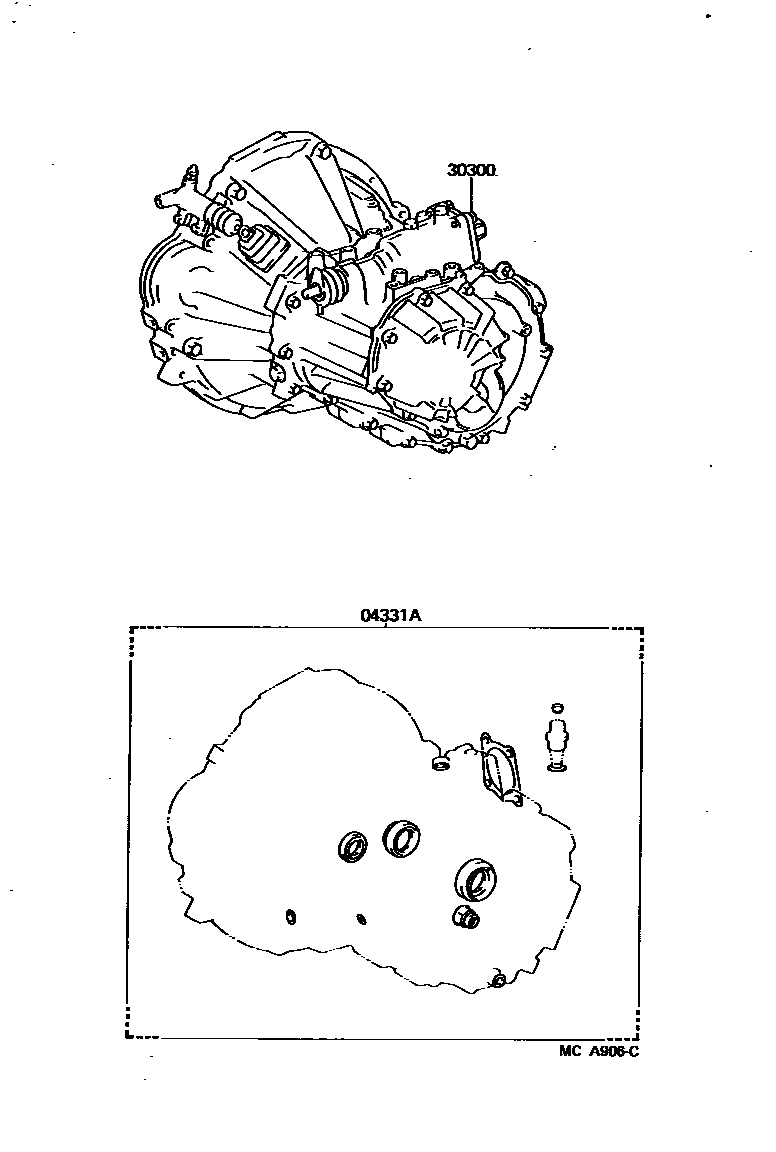

Parts diagram
04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)
main04331-12080i198412-198912
main04331-17010i198708-198804
main04331-17011i198804-198912
30300TRANSAXLE ASSY, MANUAL
main30300-17030i198412-198704
sub30300-17031
sub11355-15060
sub16268-16070
sub16278-16060
main30300-17032i198704-198912
sub30300-17033
main30300-17050i198708-198907
sub30300-17051
main30300-17051i198907-198912

2 parts on this diagram · 2 diagrams in section
