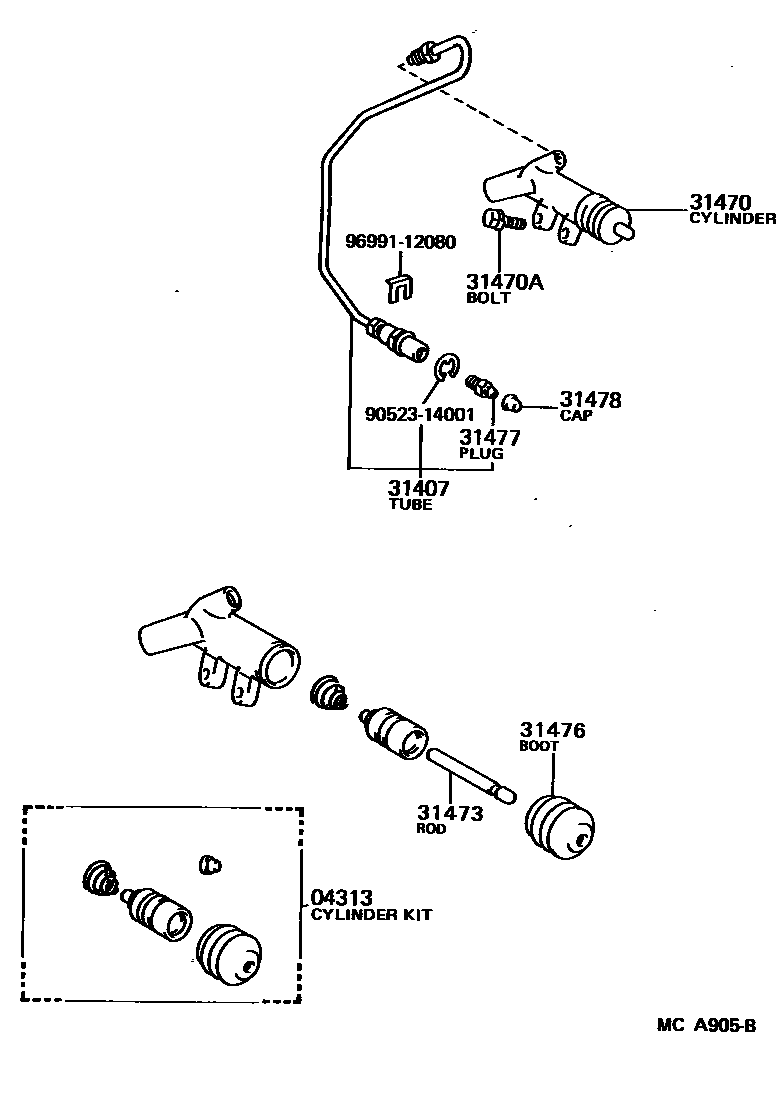

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iAW11..5F198902-198912

main04313-17010iAW11..5F..SPC198908-198912

main04313-22020iAW11..5F198412-198902

sub04313-12030

31407TUBE SUB-ASSY, BLEEDER CLUTCH RELEASE

main31407-17010iAW11..5F198412-198510

main31407-17011iAW11..5F..GT198510-198912

main31407-17020iAW11..5F..SPC198708-198912

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-17010iAW11..5F..GT198412-198902

sub31470-17011

main31470-17011iAW11..5F..GT198902-198912

main31470-17020iAW11..5F..SPC198708-198902

sub31470-17021

main31470-17021iAW11..5F..SPC198902-198908

sub31470-17022

main31470-17022iAW11..5F..SPC198908-198912

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825iAW11..5F198412-198912

*8-1.25PX25-25

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-27010iAW11..5F..SPC198908-198912

main31473-32010iAW11..5F198412-198912

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAW11..5F198412-198912

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iAW11..5F198412-198912

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iAW11..5F198412-198912

9052314001

main90523-14001

9699112080

main96991-12080

10 parts on this diagram · 1 diagram in section
