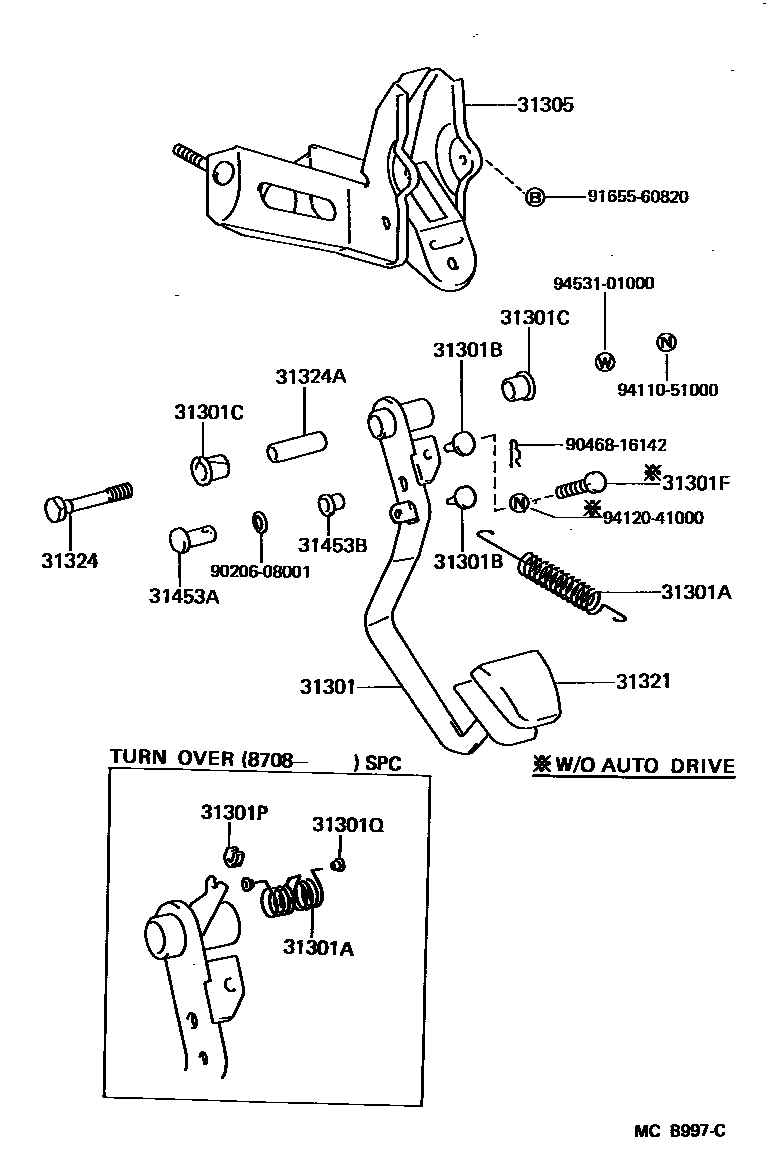

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-17030iAW11..5F198412-198608

sub31301-17031

sub90541-06008

main31301-17031iAW11..5F..GT198608-198912

main31310-17030iAW11..5F..SPC198803-198912

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14003iAW11..TBR..5F..GT;AW11..CP..5F..USA198412-198912

main90508-35027iAW11..5F..SPC198708-198912

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iAW11..TBR..5F;AW11..CP..5F..USA198608-198912

main90541-06008iAW11..5F198412-198608

STOPPER BOLT

main90541-07010iAW11..5F198412-198608

CLUTCH START S/W

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13192iAW11..5F198412-198912

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iAW11..5F198412-198912

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-04002iAW11..SPC198708-198912

31301QBUSH(FOR CLUTCH PEDAL SPRING)

main90386-04009iAW11..SPC198708-198912

31305BRACKET SUB-ASSY, CLUTCH PEDAL

main55107-17030iAW11..5F198412-198912

31321PAD, CLUTCH PEDAL

main31321-12030iAW11..5F198412-198912

31324SHAFT, CLUTCH PEDAL

main90101-10015iAW11..5F198412-198912

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iAW11..5F198412-198912

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iAW11..5F198412-198912

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iAW11..5F198412-198912

9020608001

main90206-08001

9046816142

main90468-16142

9165560820

main91655-60820

9411051000

main94110-51000

9412041000

main94120-41000

9453101000

main94531-01000

19 parts on this diagram · 2 diagrams in section
