CLUTCH & RELEASE FORK

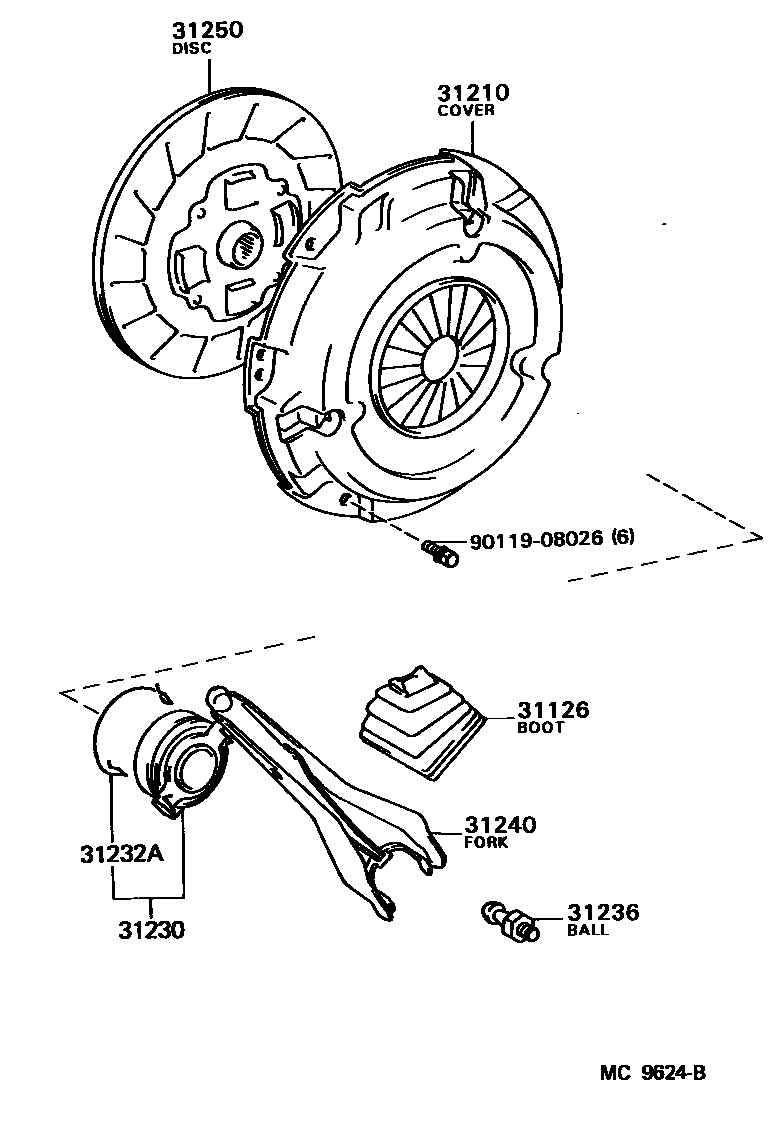

Parts diagram
31126BOOT, CLUTCH RELEASE FORK
main31126-12050i198412-198701
sub31126-12051
main31126-12051i198701-198912
main31126-12060i198908-198912
31210COVER ASSY, CLUTCH
main31210-12080i198412-198506
sub31210-12120
main31210-12150i198812-198911
sub31210-12151
main31210-12151i198911-198912
sub31210-12152
main31210-17010i198506-198705
sub31210-12201
main31210-17011i198705-198805
sub31210-17012
main31210-17012i198805-198812
sub31210-12150
main31210-17020i198708-198805
sub31210-17021
main31210-17021i198805-198912
31230BEARING ASSY, CLUTCH RELEASE
main31230-12100i198610-198708
sub31230-12140
main31230-12110i198412-198605
sub31230-12111
main31230-12111i198605-198610
sub31230-12100
main31230-12140i198801-198912
sub31230-16061
main31230-16060i198708-198801
sub31230-16061
main31230-16060i198803-198912
NACHI
sub31230-16061
main31230-20160i198803-198809
KOYO
sub31230-20170
main31230-20160i198708-198803
sub31230-20170
main31230-20170i198809-198912
main31230-20180i198803-198811
31232ACLIP, RELEASE BEARING HUB
main31232-12040i198412
KOYO
main31232-16031i198412-198912
NSK,NACHI
main31232-16031i198810-198912
main31232-20020i198708-198912
NSK
main31232-32030i198412
KOYO
31236BALL, RELEASE FORK
main31236-12011i198412-198912
main31236-20060i198708-198803
main31236-20061i198803-198912
sub31236-20060
31240FORK ASSY, CLUTCH RELEASE
main31204-12050i198412-198912
main31204-17010i198708-198912
31250DISC ASSY, CLUTCH
main31250-17010i198412-198506
sub31250-12290
main31250-17020i198506-198912
sub31250-12320
main31250-17030i198708-198912
sub31250-17031
9011908026
main90119-08026

8 parts on this diagram · 2 diagrams in section
