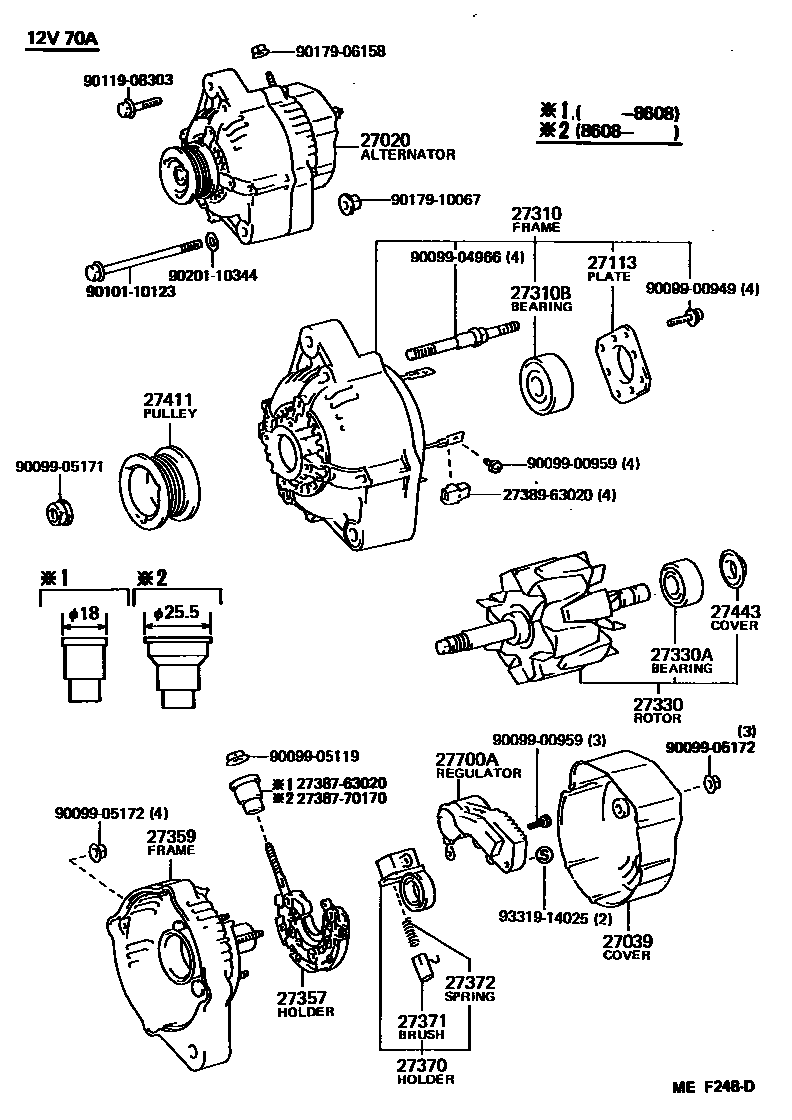

ALTERNATOR

0001 1 0002 1

27020ALTERNATOR ASSY

main27020-16130i4AGZE..AW11198708-198803

12V 70A,12V 70A

main27020-16130i4AGZE..AW11198803-198912

12V 70A

main27060-16080i4AGELC..AW11198412-198608

12V 70A,12V 70A

main27060-16081i4AGELC..AW11198608-198705

12V 70A,12V 70A

sub27060-16082

main27060-16082i4AGELC..AW11198705-198912

12V 70A

27039COVER, ALTERNATOR REAR END

main27039-16120i4AGZE..AW11198708-198803

12V 70A,NO.2

main27039-16120i4AGZE..AW11198803-198912

NO.2

main27039-16130i4AGZE..AW11198803-198912

NO.1

main27039-16130i4AGZE..AW11198708-198803

12V 70A,NO.1

main27039-72010i4AGELC..AW11198803-198912

sub27039-15170

main27039-72010i4AGELC..AW11198412-198803

12V 70A

sub27039-15170

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-63020i4AGELC..AW11198412-198501

12V 70A

main27312-70200i4AGELC..AW11198803-198912

main27312-70200i4AGELC..AW11198705-198803

12V 70A

main27312-72100i4AGZE..AW11198803-198912

main27312-72100i4AGELC..AW11198501-198803

12V 70A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-16100i4AGELC..AW11198412-198501

12V 70A

main27310-16101i4AGELC..AW11198501-198705

12V 70A

sub27310-55050

main27310-16102i4AGELC..AW11198705-198803

12V 70A

sub27310-16103

main27310-16103i4AGELC..AW11198803-198912

main27310-16130i4AGZE..AW11198708-198803

12V 70A

main27310-16130i4AGZE..AW11198803-198912

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10152i4AGELC..AW11198412-198501

12V 70A

main90099-10159i4AGZE..AW11198708-198803

12V 70A,OD=46

sub90099-10199

main90099-10159i4AGELC..AW11198501-198705

12V 70A

sub90099-10199

main90099-10159i4AGZE..AW11198803-198912

sub90099-10199

main90099-10178i4AGELC..AW11198705-198803

12V 70A,OD=52

main90099-10178i4AGELC..AW11198803-198912

27330ROTOR ASSY, ALTERNATOR

main27330-63021i4AGELC..AW11198412-198501

12V 70A

sub27330-72100

main27330-72100i4AGELC..AW11198501-198706

12V 70A

sub27330-72101

main27330-72101i4AG#..AW11198706-198803

12V 70A

main27330-72101i4AG#..AW11198803-198912

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i4AGELC..AW11198803-198912

main90099-10140i4AG#..AW11198412-198803

12V 70A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-63020i4AGELC..AW11198412-198803

12V 70A

main27357-63020i4AGELC..AW11198803-198912

main27357-70081i4AGZE..AW11198803-198912

main27357-70081i4AGZE..AW11198708-198803

12V 70A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16011i4AGELC..AW11198412-198705

12V 70A

sub27359-16012

sub27384-16380

main27359-16130i4AGZE..AW11198708-198803

12V 70A

main27359-16130i4AGZE..AW11198803-198912

main27359-16180i4AGELC..AW11198705-198803

12V 70A

sub27359-16181

sub27384-16380

main27359-16180i4AGELC..AW11198803-198912

sub27359-16181

sub27384-16380

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-16011i4AG#..AW11198412-198803

12V 70A

sub27370-54450

main27370-16011i4AG#..AW11198803-198912

sub27370-54450

27371BRUSH, ALTERNATOR

main27371-63020i4AG#..AW11198412-198803

12V 70A

sub27371-70300

main27371-63020i4AG#..AW11198803-198912

sub27371-70300

27372SPRING, ALTERNATOR BRUSH

main27372-63020i4AGELC..AW11198412-198501

12V 70A

sub27372-87501

main27372-72100i4AG#..AW11198501-198803

12V 70A

sub27372-63020

main27372-72100i4AG#..AW11198803-198912

sub27372-63020

27411PULLEY, ALTERNATOR

main27411-16180i4AG#..AW11198705-198803

12V 70A

main27411-16180i4AGELC..AW11198803-198912

main27411-63080i4AGELC..AW11198412-198501

12V 70A

sub27411-63021

main27411-63081i4AGELC..AW11198501-198705

12V 70A

sub27411-16180

main27411-63081i4AGZE..AW11198803-198912

sub27411-16180

27443COVER, ALTERNATOR BEARING

main27443-63020i4AGZE..AW11198803-198912

main27443-63020i4AG#..AW11198412-198803

12V 70A

27700AREGULATOR ASSY, GENERATOR

main27700-63021i4AGELC..AW11198803-198812

sub27700-70030

main27700-63021i4AGELC..AW11198412-198803

12V 70A

sub27700-70030

main27700-64021i4AGZE..AW11198803-198912

main27700-64021i4AGZE..AW11198708-198803

12V 70A

main27700-70030i4AGELC..AW11198812-198912

2738763020INSULATOR, TERMINAL

main27387-63020

2738770170INSULATOR, TERMINAL

main27387-70170

2738963020INSULATOR, TERMINAL

main27389-63020

9009900949

main90099-00949

9009900959

main90099-00959

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010110123

main90101-10123

9011908303

main90119-08303

9017906158

main90179-06158

9017910067

main90179-10067

9020110344

main90201-10344

9331914025

main93319-14025

30 parts on this diagram · 2 diagrams in section
