CAUTION PLATE & NAME PLATE (ENGINE)

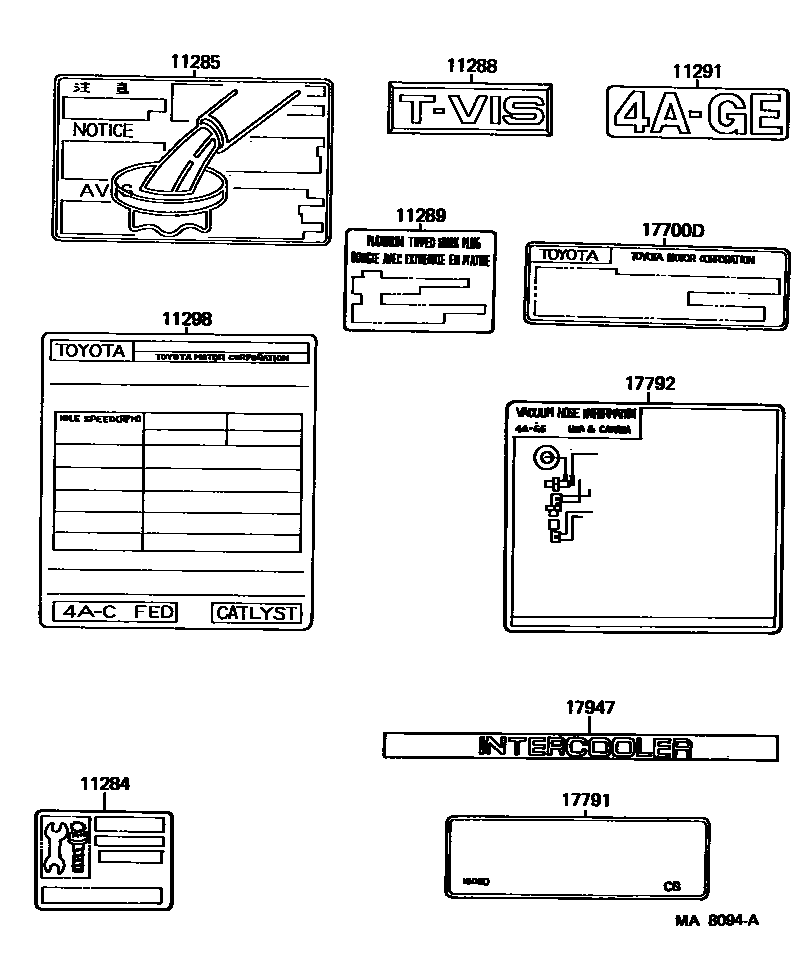

Parts diagram

11284PLATE, ENGINE BOLT INFORMATION

main11284-16020i198708-198709

main11284-16040i198709-198912

11285PLATE, COOLANT SYSTEM CAUTION

main11285-16010i198412-198608

main11285-16011i198608-198803

11288PLATE, ENGINE SYSTEM

main11288-88301i198412-198803

T-VIS

11289PLATE, SPARK PLUG CAUTION

main11289-13040i198412-198606

main11289-73020i198606-198912

11291PLATE, ENGINE NAME

main11291-16040i198412-198912

main11291-16050i198708-198912

11298PLATE, EMISSION CONTROL INFORMATION

main11298-16190i198412-198508

main11298-16191i198508-198608

main11298-16192i198608-198708

main11298-16200i198412-198508

CALIFORNIA SPEC

main11298-16201i198508-198608

CALIFORNIA SPEC

main11298-16202i198608-198708

CALIFORNIA SPEC

main11298-16220i198412-198508

main11298-16221i198508-198608

main11298-16222i198608-198708

main11298-16540i198708-198808

main11298-16541i198808-198912

main11298-16550i198708-198803

CALIFORNIA SPEC

main11298-16551i198808-198912

CALIFORNIA SPEC

main11298-16560i198708-198808

main11298-16561i198808-198912

main11298-16580i198708-198808

main11298-16581i198808-198912

main11298-16590i198803-198808

CALIFORNIA SPEC

main11298-16591i198808-198912

CALIFORNIA SPEC

main11298-16600i198708-198808

main11298-16601i198808-198912

17700DPLATE, ENGINE CAUTION

main11293-16060i198412-198912

17791LABEL, MAINTENANCE INFORMATION

main17791-16030i198708-198912

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main17792-16090i198412-198608

main17792-16091i198608-198708

main17792-16260i198708-198912

main17792-16340i198708-198912

17947PLATE, INTERCOOLER

main17947-16010i198708-198912

10 parts on this diagram · 1 diagram in section
