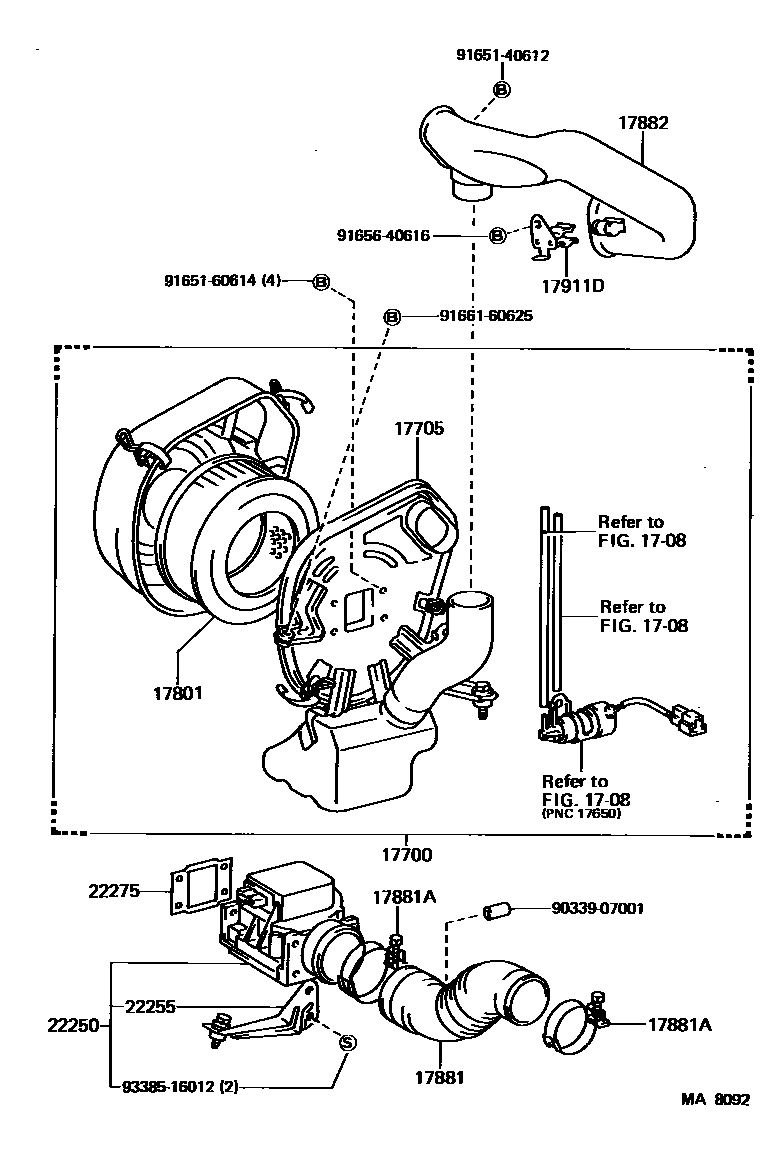

AIR CLEANER
1708
17700CLEANER ASSY, AIR
17705CAP SUB-ASSY, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
AIR CLEANER SIDE
THROTTLE BODY SIDE
AIR FLOW METER SIDE
BODY SIDE
17882HOSE, AIR CLEANER, NO.2
17911DUCT, COOL AIR INTAKE, NO.1
17911DBRACKET, COOL AIR INTAKE HOSE, NO.1
22250METER ASSY, INTAKE AIR FLOW
22255BRACKET, AIR FLOW METER
22275GASKET, AIR FLOW METER
9033907001
main90339-07001
9165140612
main91651-40612
9165160614
main91651-60614
9165640616
main91656-40616
9166160625
main91661-60625
9338516012
main93385-16012
18 parts on this diagram · 4 diagrams in section
