MANIFOLD

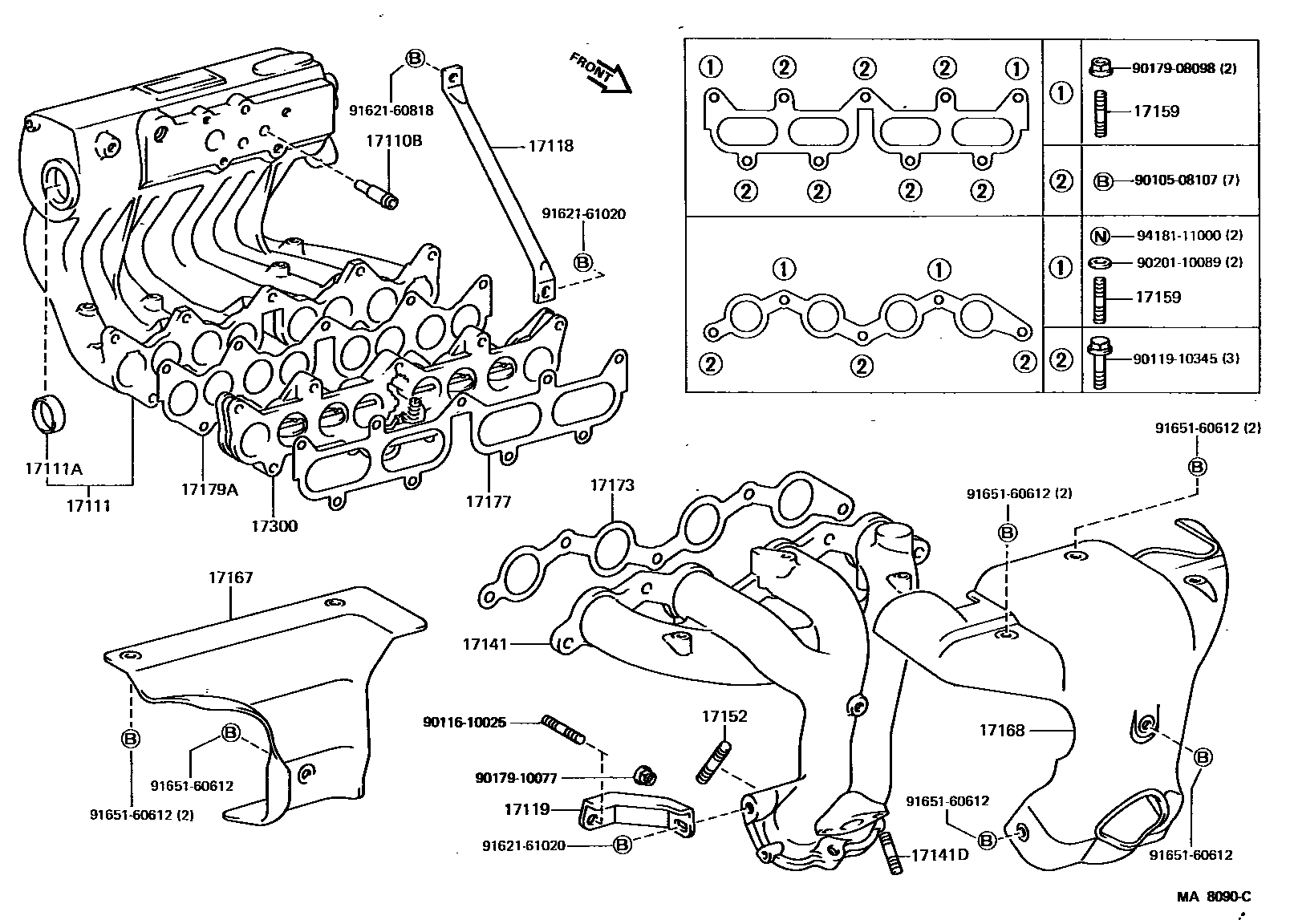

Parts diagram
17110BUNION(FOR VENTILATION HOSE TO MANIFOLD)
main90405-04002i198708-198912
main90405-10009i198412-198912
17111MANIFOLD, INTAKE
main17101-16040i198412-198803
sub17101-16041
main17101-16041i198803-198912
main17101-16090i198708-198912
17111APLUG, NO.1
main96411-43500i198412-198912
17118STAY, MANIFOLD
main17125-16030i198412-198506
sub17125-16031
main17125-16031i198506-198912
main17125-16040i198708-198912
17119STAY, MANIFOLD, NO.2
main17118-16040i198412-198912
17141MANIFOLD, EXHAUST
main17141-16090i198412-198708
main17141-16190i198708-198912
17141DBOLT, STUD(FOR OXYGEN SENSOR)
main90116-08168i198412-198912
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
main90116-10058i198412-198904
main90116-10146i198904-198912
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
main90116-08218i198502-198912
INTAKE MANIFOLD
main90116-08254i198708-198912
INTAKE MANIFOLD
main90116-10037i198412-198912
EXHAUST MANIFOLD
main92122-60850i198412-198502
INTAKE MANIFOLD
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
main17167-16030i198412-198708
sub17167-16060
main17167-16050i198708-198912
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
main17168-16020i198412-198708
sub17168-16040
main17168-16060i198708-198912
17173GASKET, EXHAUST MANIFOLD TO HEAD
main17173-16010i198412-198905
sub17173-16011
main17173-16011i198905-198912
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
main17177-16011i198412-198506
sub17177-16012
main17177-16012i198506-198912
17179AGASKET, INTAKE MANIFOLD, NO.2
main17171-16011i198412-198506
sub17171-16012
main17171-16012i198506-198912
17300VALVE ASSY, INTAKE AIR CONTROL
main17300-16011i198412-198912
9010508107
main90105-08107
9011610025
main90116-10025
9011910345
main90119-10345
9017908098
main90179-08098
9017910077
main90179-10077
9020110089
main90201-10089
9162160818
main91621-60818
9162161020
main91621-61020
9165160612
main91651-60612
9418111000
main94181-11000

25 parts on this diagram · 3 diagrams in section
