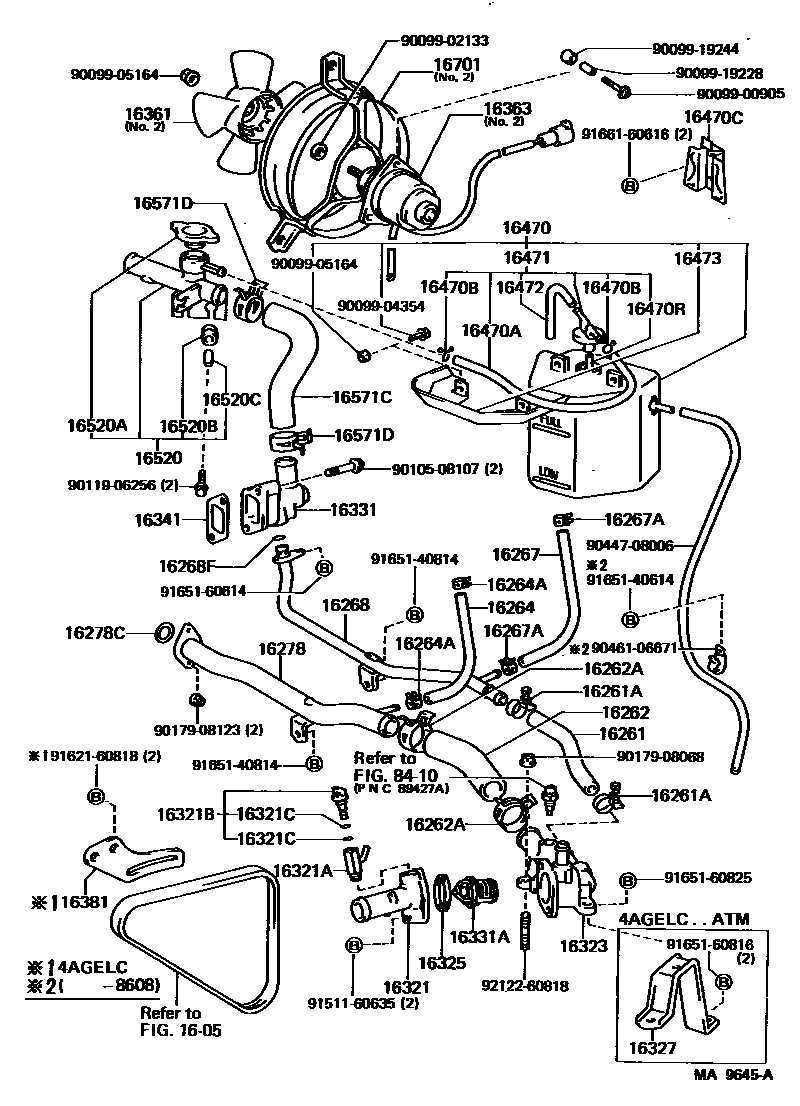

RADIATOR & WATER OUTLET
1605
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16262HOSE, WATER INLET
16262ACLIP(FOR WATER INLET HOSE)
16264HOSE, WATER BY-PASS, NO.2
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16267HOSE, WATER BY-PASS, NO.3
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16268PIPE, WATER BY-PASS, NO.1
16268FRING, O(FOR WATER BY-PASS PIPE)
16278PIPE, WATER BY-PASS, NO.2
16278CRING, O(FOR WATER BY-PASS PIPE NO.2)
16321INLET, WATER
16321AUNION(FOR WATER INLET)
16321BPLUG, DRAIN COCK(FOR WATER INLET UNION)
16321CRING, O(FOR WATER INLET UNION DRAIN COCK PLUG)
ID=4
ID=6
16323HOUSING, WATER INLET
16325GASKET, WATER INLET HOUSING, NO.1
16327BRACKET, WATER INLET HOUSING
NO.1
16331OUTLET, WATER
16331ATHERMOSTAT
*WAX 82-95
16341GASKET, WATER OUTLET
16361FAN
NO.1
NO.1
NO.2
16363MOTOR, COOLING FAN
NO.2
NO.1
NO.1
16381BAR, FAN BELT ADJUSTING
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470CBRACKET(FOR RADIATOR RESERVE TANK)
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
L=600
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16473SUPPORT(FOR RADIATOR RESERVE TANK)
16520FILLER ASSY, WATER
16520ACAP SUB-ASSY, WATER FILLER
16520BBUSHING(FOR WATER FILLER)
16520CPIPE(FOR WATER FILLER)
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16701SHROUD SUB-ASSY, FAN
NO.1
NO.1
NO.2
NO.1
NO.1
8410
9009900905
main90099-00905
9009902133
main90099-02133
9009904354
main90099-04354
9009905164
9009919228
main90099-19228
9009919244
main90099-19244
9010508107
9011906256
9017908068
9017908123
9044708006
9046106671
9151160635
9162160818
9165140614
9165140814
9165160614
9165160816
9165160825
9166160616
9212260818
63 parts on this diagram · 2 diagrams in section
