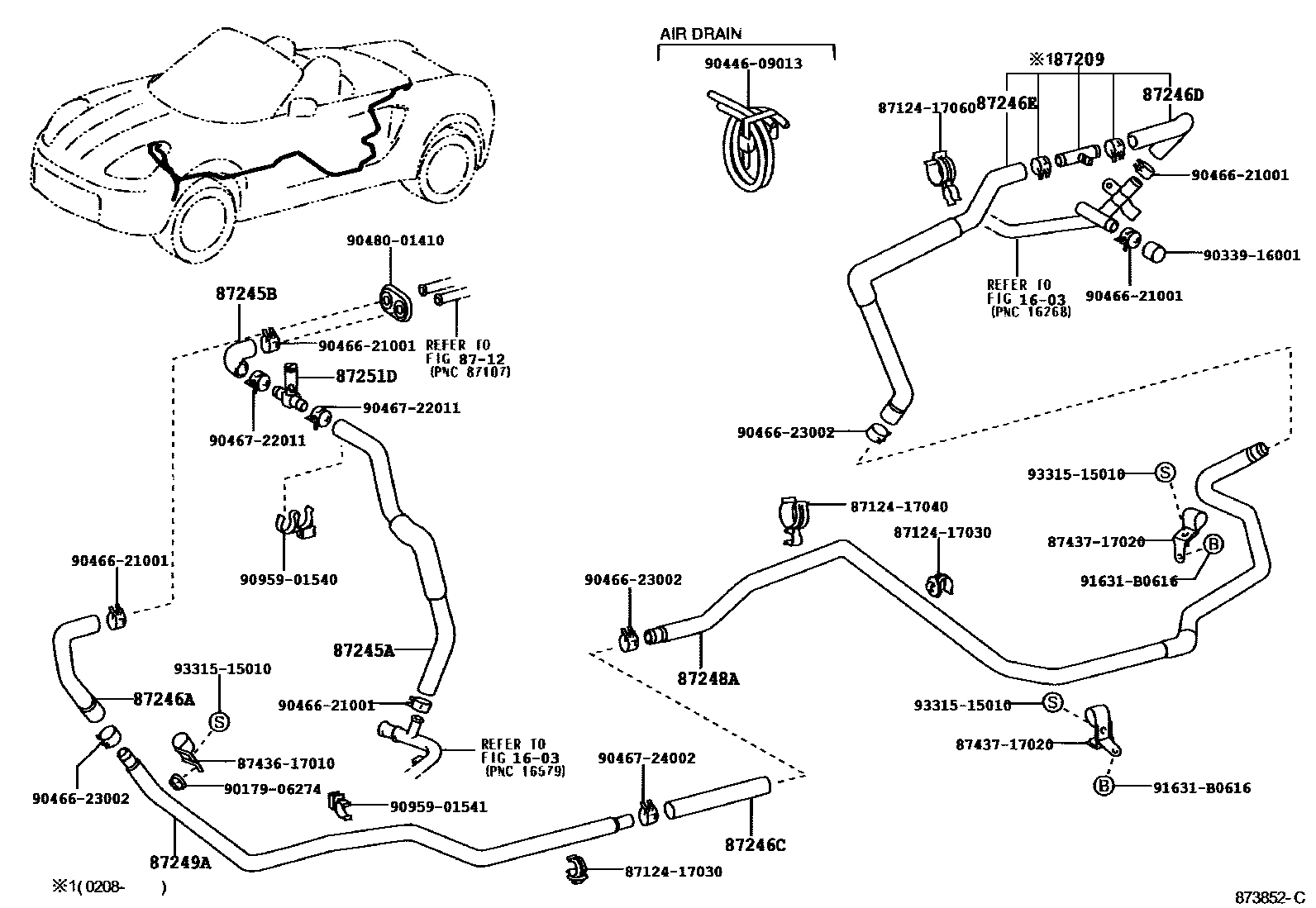

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1603

8712

87209HOSE SUB-ASSY, WATER

main87209-17010iZZW30200208-200509

87245AHOSE, HEATER WATER, INLET A

main87245-17340iZZW30..RHD199912-200208

main87245-17360iZZW30..LHD199912-200208

87245BHOSE, HEATER WATER, INLET B

main87245-17350iZZW30..RHD199912-200208

main87245-17370iZZW30..LHD200208-200509

87246AHOSE, HEATER WATER, OUTLET A

main87245-17320iZZW30..RHD200208-200509

main87245-17330iZZW30..LHD200208-200509

87246CHOSE, HEATER WATER, OUTLET C

main87245-17380iZZW30199912-200208

87246DHOSE, HEATER WATER, OUTLET D

main87245-17390iZZW30199912-200208

87246EHOSE, HEATER WATER, OUTLET E

main87245-17400iZZW30199912-200208

87248APIPE, HEATER WATER INLET, A

main87248-17020iZZW30199912-200208

87249APIPE, HEATER WATER OUTLET, A

main87248-17010iZZW30199912-200208

87251DJOINT, WATER, NO.1

main87251-17010iZZW30199912-200208

8712417030CLAMP, HEATER

main87124-17030

8712417040CLAMP, HEATER

main87124-17040

8712417060CLAMP, HEATER

main87124-17060

8743617010

main87436-17010

8743717020

main87437-17020

9017906274

main90179-06274

9033916001

main90339-16001

9044609013

main90446-09013

9046621001

main90466-21001

9046623002

main90466-23002

9046722011

main90467-22011

9046724002

main90467-24002

9048001410

main90480-01410

9095901540

main90959-01540

9095901541

main90959-01541

91631B0616

main91631-B0616

9331515010

main93315-15010

29 parts on this diagram · 2 diagrams in section
