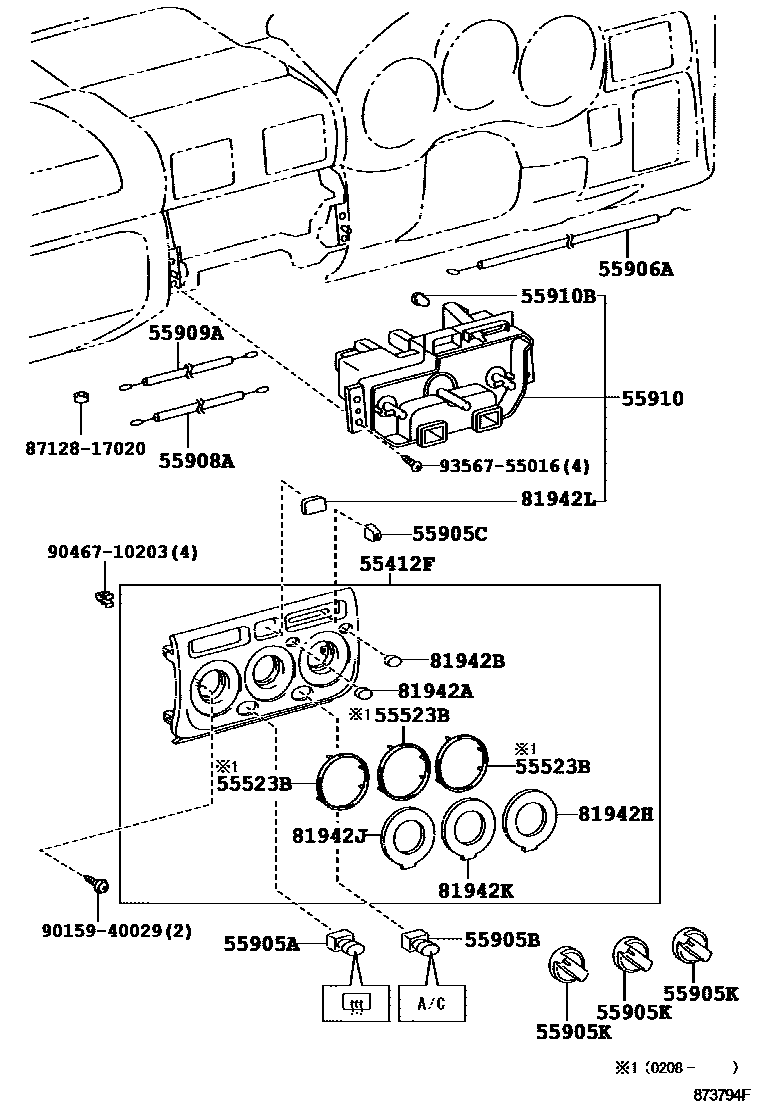

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
55412FPANEL, INSTRUMENT CLUSTER FINISH, CENTER
W(AIR CONDITIONER),BLACK,TRIM2#,3#,4#,5#
W(AIR CONDITIONER),BLACK,TRIM2#,3#,4#,5#
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#,3#
W(AIR CONDITIONER),BLACK,TRIM1#,2#,3#
W(AIR CONDITIONER),BLACK,TRIM1#,2#,3#
W(AIR CONDITIONER)
W(AIR CONDITIONER)
55523BCOVER, HEATER CONTROL OPENING
55905AKNOB, HEATER CONTROL
55905BKNOB, HEATER CONTROL, NO.2
55905CKNOB, HEATER CONTROL, NO.3
55905KKNOB, HEATER CONTROL, NO.4
55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55910CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910BBULB, HEATER CONTROL
81942ASHEET, HEATER CONTROL NAME, NO.1
81942BSHEET, HEATER CONTROL NAME, NO.2
81942HSHEET, HEATER CONTROL NAME, NO.3
81942JSHEET, HEATER CONTROL NAME, NO.4
81942KSHEET, HEATER CONTROL NAME, NO.5
81942LSHEET, HEATER CONTROL NAME, NO.6
8712817020GROMMET, HEATER
main87128-17020
9015940029
9046710203
9356755016
21 parts on this diagram · 4 diagrams in section
