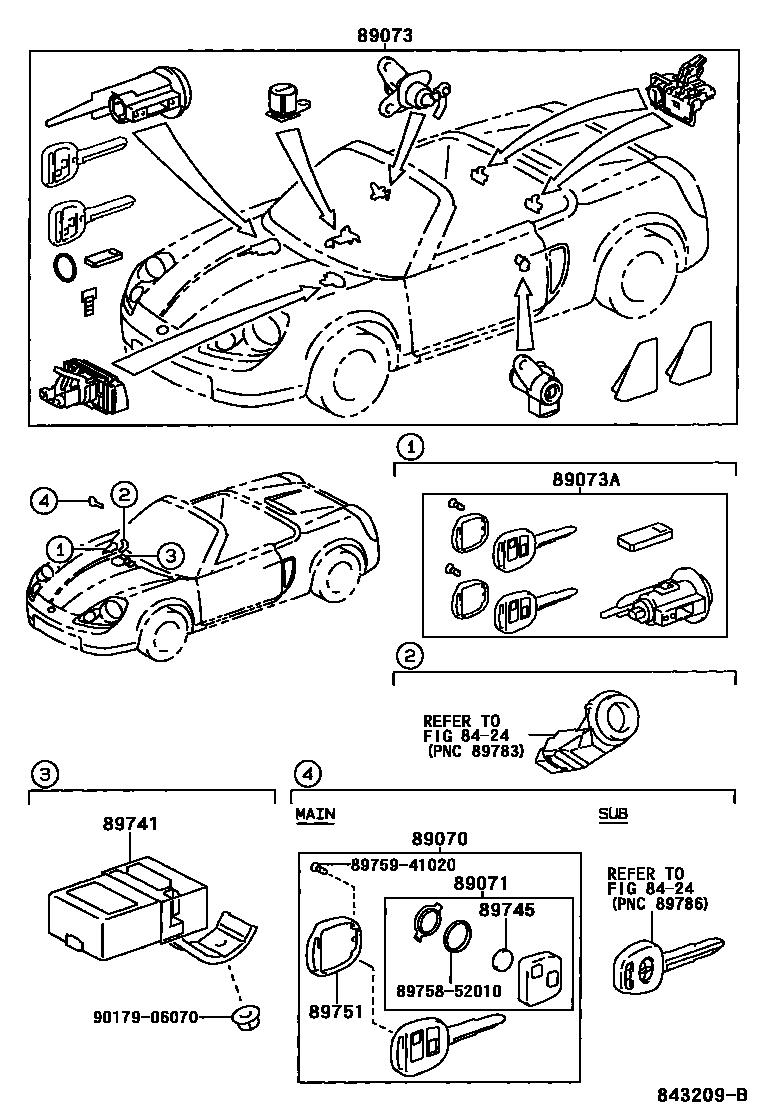

WIRELESS DOOR LOCK

0001 1 0002 1

8424

89070TRANSMITTER ASSY, DOOR CONTROL

main89070-52080iZZW30..RHD..EUR199912-200012

sub89070-52081¥19,400

main89070-52081iZZW30..EUR¥19,400200012-200509

main89070-52090iZZW30..LHD199912-200012

sub89070-52081¥19,400

main89070-52100iZZW30..LHD199912-200012

FRANCE SPEC

sub89070-52081¥19,400

main89070-52110iZZW30..RHD..EUR199912-200509

HONG KONG SPEC

main89070-52150iZZW30..LHD199912-200012

FINLAND OR ITALY SPEC

sub89070-52081¥19,400

main89070-52160iZZW30..LHD199912-200012

DENMARK OR SWITZERLAND SPEC

sub89070-52081¥19,400

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-52020iZZW30..5FS..EUR¥18,000200008-200012

sub89071-52021¥16,500

main89071-52020iZZW30..5F¥18,000199912-200012

DENMARK OR FRANCE OR ITALY SPEC

sub89071-52021¥16,500

main89071-52021iZZW30..EUR¥16,500200012-200509

main89071-52030iZZW30..RHD..EUR¥18,000199912-200509

HONG KONG SPEC

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main69005-17650iZZW30..EUR¥37,400200208-200509

main89073-17060iZZW30..RHD..EUR199912-200012

sub89073-17061

main89073-17061iZZW30..EUR200012-200208

main89073-17070iZZW30..LHD199912-200012

sub89073-17061

main89073-17080iZZW30..LHD199912-200012

FRANCE SPEC

sub89073-17061

main89073-17090iZZW30..RHD..EUR199912-200208

HONG KONG SPEC

main89073-17120iZZW30..LHD199912-200012

FINLAND OR ITALY SPEC

sub89073-17061

main89073-17130iZZW30..LHD199912-200012

DENMARK OR SWITZERLAND SPEC

sub89073-17061

89073AIGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)

main69057-17180iZZW30..EUR¥13,000200208-200509

main89073-17010iZZW30..RHD..EUR199912-200012

sub89073-17011

main89073-17011iZZW30..EUR200012-200208

sub89073-52351

main89073-17020iZZW30..LHD199912-200012

sub89073-17011

main89073-17030iZZW30..LHD199912-200012

FRANCE SPEC

sub89073-17011

main89073-17040iZZW30..RHD..EUR199912-200208

HONG KONG SPEC

main89073-17100iZZW30..LHD199912-200012

FINLAND OR ITALY SPEC

sub89073-17011

main89073-17110iZZW30..LHD199912-200012

DENMARK OR SWITZERLAND SPEC

sub89073-17011

89741RECEIVER, DOOR CONTROL

main89741-17050iZZW30..RHD..EUR199912-200012

sub89741-17051

main89741-17051iZZW30..RHD..EUR200012-200509

main89741-17060iZZW30..LHD..5F199912-200012

DENMARK OR FRANCE OR ITALY SPEC

sub89741-17061

main89741-17060iZZW30..LHD..5FS200008-200012

sub89741-17061

main89741-17061iZZW30..LHD200012-200509

main89741-17070iZZW30..RHD..EUR199912-200509

HONG KONG SPEC

89745BATTERY, TRANSMITTER

main89745-52010iZZW30..EUR¥440199912-200509

sub89745-40010¥440

89751COVER, TRANSMITTER HOUSING

main89751-17020iZZW30..EUR¥940199912-200509

main89751-17030iZZW30..RHD..EUR¥940199912-200509

HONG KONG SPEC

8975852010PACKING, DOOR CONTROL TRANSMITTER

main89758-52010¥240

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020¥100

9017906070

main90179-06070¥180

11 parts on this diagram · 2 diagrams in section
