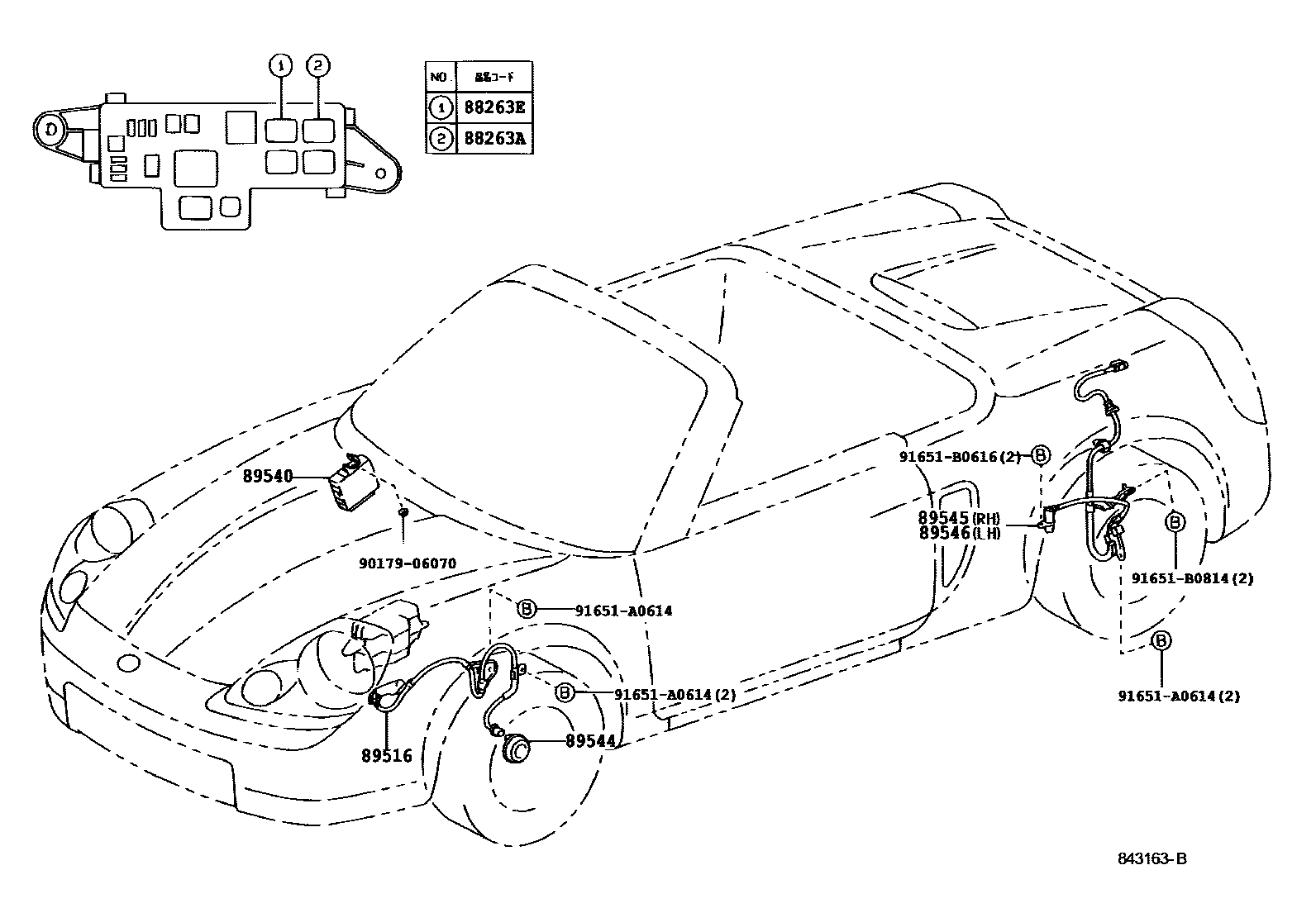

ABS & VSC

0001 1 0002 1 0003 1

88263ARELAY, SKID CONTROL

main88263-32070iZZW30199912-200509

88263ERELAY, SKID CONTROL NO.2

main88263-21010iZZW30..6FS200208-200509

main88263-32080iZZW30199912-200208

89516WIRE, SKID CONTROL SENSOR

main89516-17010iZZW30199912-200509

RH

main89516-17030iZZW30199912-200509

LH

89540COMPUTER ASSY, SKID CONTROL

main89540-17130iZZW30..RHD..6FS200208-200509

main89540-17140iZZW30..LHD..6FS200208-200401

main89540-17150iZZW30..RHD199912-200208

main89540-17160iZZW30..LHD199912-200208

main89540-17170iZZW30..LHD..6FS200401-200509

89544SENSOR, SKID CONTROL

main89544-52010iZZW30199912-200509

89545SENSOR, SPEED, REAR RH

main89545-17030iZZW30199912-200509

89546SENSOR, SPEED, REAR LH

main89546-17030iZZW30199912-200509

9017906070

main90179-06070

91651A0614

main91651-A0614

91651B0616

main91651-B0616

91651B0814

main91651-B0814

11 parts on this diagram · 3 diagrams in section
