SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1FRONT LUGGAGE 0004 1COWL 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1INSTRUMENT PANEL 0008 1INSTRUMENT PANEL 0009 1INSTRUMENT PANEL 0010 1IGNITION & COMBINATION SW. 0011 1DOOR & FLOOR

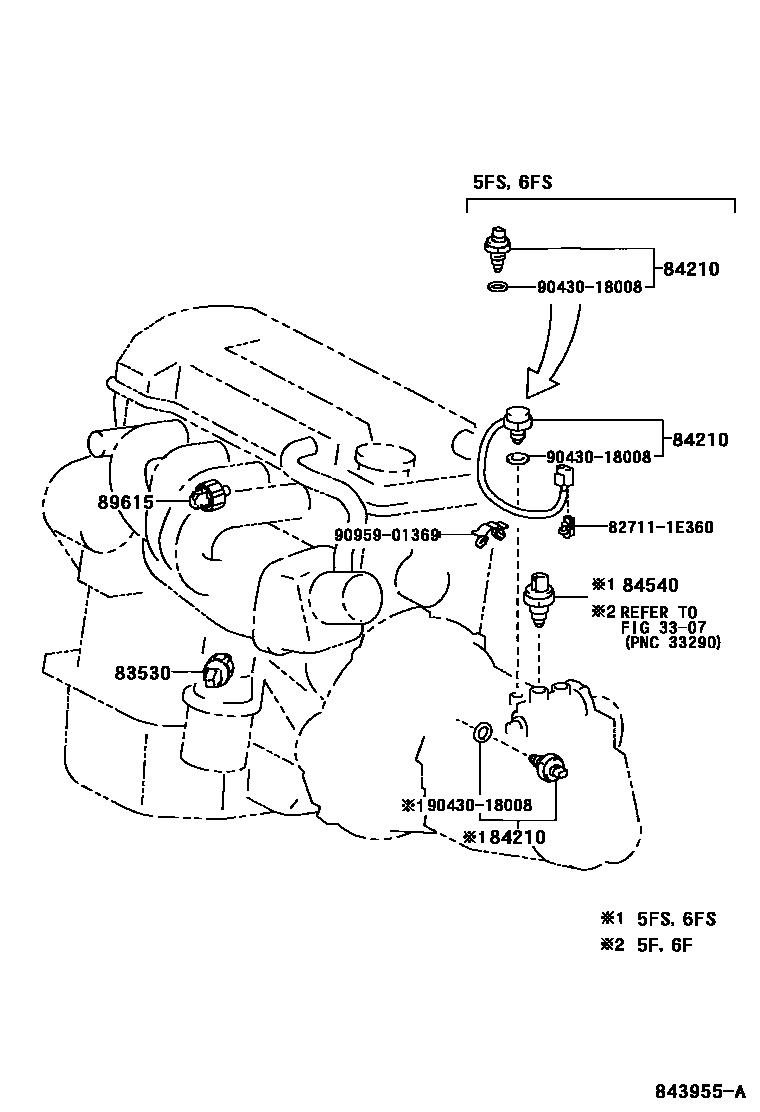

3307

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iZZW30199912-200509

DENSO

main83530-60020iZZW30199912-200509

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iZZW30..6FS200008-200509

sub84210-52050

main84210-14040iZZW30..5F199912-200509

84540SWITCH ASSY, NEUTRAL START

main84540-17010iZZW30..5FS200008-200509

89615SENSOR, KNOCK CONTROL

main89615-12120iZZW30199912-200509

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9043018008

main90430-18008

9095901369

main90959-01369

8 parts on this diagram · 11 diagrams in section
