METER

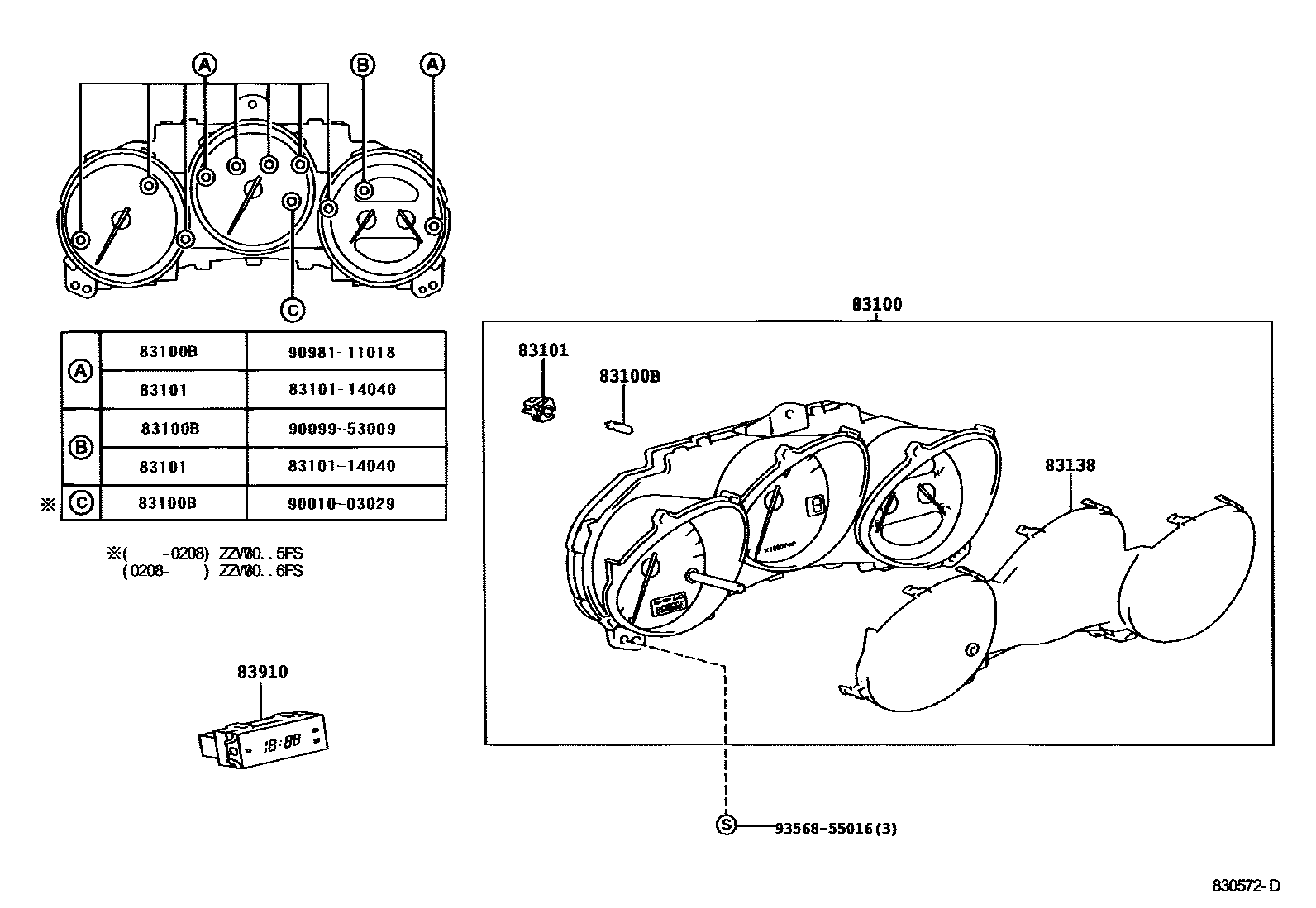

83100METER ASSY, COMBINATION

main83800-17050iZZW30..RHD..5FS..EUR200008-200208

150MPH(240KM/H)

main83800-17060iZZW30..RHD..5F199912-200208

150MPH(240KM/H)

main83800-17070iZZW30..5FS..EUR200008-200208

240KM/H

main83800-17080iZZW30..5F199912-200208

240KM/H

main83800-17090iZZW30..ARL200008-200208

240KM/H

main83800-17140iZZW30..RHD..6FS..EUR200208-200401

150MPH(240KM/H)

main83800-17141iZZW30..RHD..6FS..EUR200401-200509

150MPH(240KM/H)

main83800-17150iZZW30..RHD..6F200208-200401

150MPH(240KM/H)

main83800-17151iZZW30..RHD..6F200401-200509

150MPH(240KM/H)

main83800-17160iZZW30..6FS..EUR200208-200401

240KM/H

main83800-17161iZZW30..6FS..EUR200401-200509

240KM/H

main83800-17170iZZW30..6F200208-200401

240KM/H

main83800-17171iZZW30..6F200401-200509

240KM/H

main83800-17180iZZW30..ARL200208-200509

240KM/H

83100BBULB, COMBINATION METER, NO.1

main90010-03029iZZW30..5FS200008-200208

14V 1.4W,W(CAP),TYPE C:REFER TO ILLUSTRATION

main90099-53009iZZW30200208-200509

14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION

main90981-11018iZZW30200208-200509

12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040iZZW30199912-200208

83138GLASS, SPEEDOMETER

main83852-17010iZZW30199912-200208

83910CLOCK ASSY

main83910-17050iZZW30199912-200208

9356855016

main93568-55016

6 parts on this diagram · 1 diagram in section
