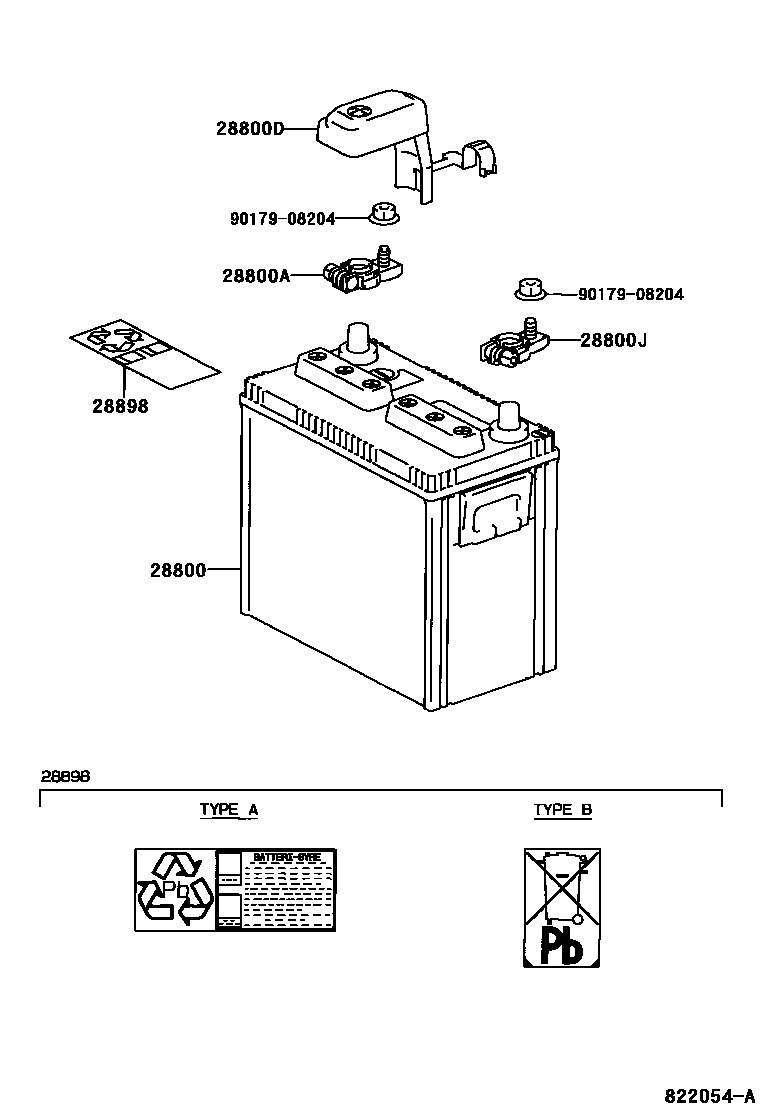

BATTERY & BATTERY CABLE

28800BATTERY

main28800-22040i1ZZFE..ZZW30199912-200509

46B24L(S)

28800ATERMINAL, BATTERY POSITIVE

main90982-05035i1ZZFE..ZZW30199912-200509

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12290i1ZZFE..ZZW30199912-200509

28800JTERMINAL, BATTERY NEGATIVE

main90982-06024i1ZZFE..ZZW30199912-200509

28898PLATE, BATTERY

main28898-46010i1ZZFE..ZZW30..LHD199912-200509

TYPE A:REFER TO ILLUSTRATION

main28898-46020i1ZZFE..ZZW30..EUR199912-200509

TYPE B:REFER TO ILLUSTRATION

9017908204

main90179-08204

6 parts on this diagram · 1 diagram in section
