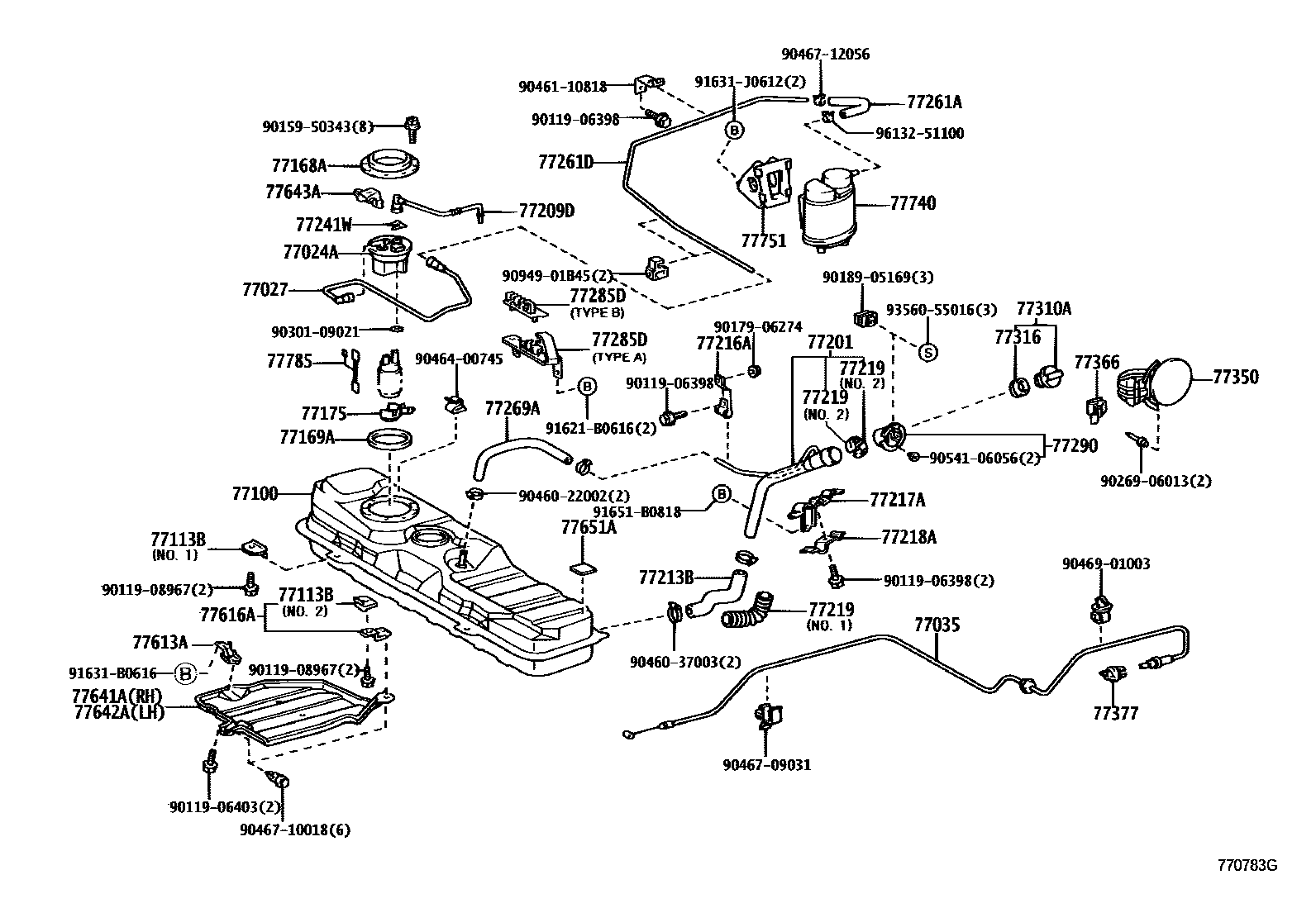

FUEL TANK & TUBE

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-17010iZZW30199912-200509

77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2

main77027-17020iZZW30199912-200509

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-17040iZZW30..RHD199912-200307

main77035-17041iZZW30..RHD200307-200509

main77035-17070iZZW30..LHD199912-200307

main77035-17071iZZW30..LHD200307-200509

77100TANK ASSY, FUEL

main77001-17060iZZW30199912-200208

sub77001-17080

main77001-17080iZZW30200208-200509

77113BPLATE, FUEL TANK SIDE

main77113-52020iZZW30199912-200509

NO.1

main77113-52030iZZW30199912-200509

NO.2

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52010iZZW30199912-200509

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33020iZZW30199912-200509

77175SUPPORT, FUEL SUCTION, NO.2

main77175-52020iZZW30199912-200509

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-17120iZZW30199912-200509

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-17010iZZW30199912-200509

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-17010iZZW30199912-200509

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-17030iZZW30199912-200509

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-17020iZZW30199912-200509

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-17010iZZW30199912-200509

77219COVER, FUEL TANK FILLER PIPE

main77219-32030iZZW30199912-200509

NO.2

main77219-44010iZZW30199912-200509

NO.1

77241WCLIP, TUBE JOINT

main77241-32060iZZW30199912-200509

77261AHOSE, FUEL, NO.1 (FOR FUEL EMISSION TUBE)

main77419-17010iZZW30199912-200509

77261DTUBE, FUEL TANK TO CANISTER

main77261-17010iZZW30199912-200509

77269AHOSE, FUEL TANK BREATHER

main77269-17010iZZW30199912-200509

77285DCLAMP, FUEL TUBE, NO.1

main77285-17050iZZW30200208-200509

TYPE A:REFER ILLUST.

main77285-17050iZZW30199912-200208

TYPE A:REFER TO ILLUSTRATION

main77286-17010iZZW30199912-200208

TYPE B:REFER TO ILLUSTRATION

main77286-17010iZZW30200208-200509

TYPE B:REFER ILLUST.

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-17020iZZW30199912-200509

77310ACAP ASSY, FUEL TANK

main77300-28010iZZW30200004-200509

main77300-52010iZZW30199912-200004

77316GASKET, FUEL TANK CAP

main77316-16010iZZW30199912-200509

77350LID ASSY, FUEL FILLER OPENING

main77350-17030iZZW30199912-200509

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-17021iZZW30199912-200003

sub77366-17022

main77366-17022iZZW30200003-200509

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77378-60020iZZW30199912-200509

77613ABRACKET, FUEL TANK BAND, NO.1

main77613-17020iZZW30199912-200509

77616ABRACKET, FUEL TANK BAND, NO.4

main77616-17010iZZW30199912-200509

77641APROTECTOR, FUEL TANK, NO.1

main77641-17030iZZW30199912-200509

77642APROTECTOR, FUEL TANK, NO.2

main77642-17030iZZW30199912-200509

77643APROTECTOR, FUEL TANK, NO.3

main77643-17010iZZW30199912-200509

77651ACUSHION, FUEL TANK, NO.1

main77651-20090iZZW30199912-200509

77740CANISTER ASSY, CHARCOAL

main77740-52040iZZW30199912-200006

sub77740-52041

main77740-52041iZZW30200006-200509

77751BRACKET, CHARCOAL CANISTER BASE

main77751-17050iZZW30199912-200509

77785HARNESS, FUEL PUMP

main77785-32010iZZW30199912-200509

9011906398

main90119-06398

9011906403

main90119-06403

9011908967

main90119-08967

9015950343

main90159-50343

9017906274

main90179-06274

9018905169

main90189-05169

9026906013

main90269-06013

9030109021

main90301-09021

9046022002

main90460-22002

9046037003

main90460-37003

9046110818

main90461-10818

9046400745

main90464-00745

9046709031

main90467-09031

9046710018

main90467-10018

9046712056

main90467-12056

9046901003

main90469-01003

9054106056

main90541-06056

9094901B45

main90949-01B45

91621B0616

main91621-B0616

91631B0616

main91631-B0616

91631J0612

main91631-J0612

91651B0818

main91651-B0818

9356055016

main93560-55016

9613251100

main96132-51100

59 parts on this diagram · 1 diagram in section
