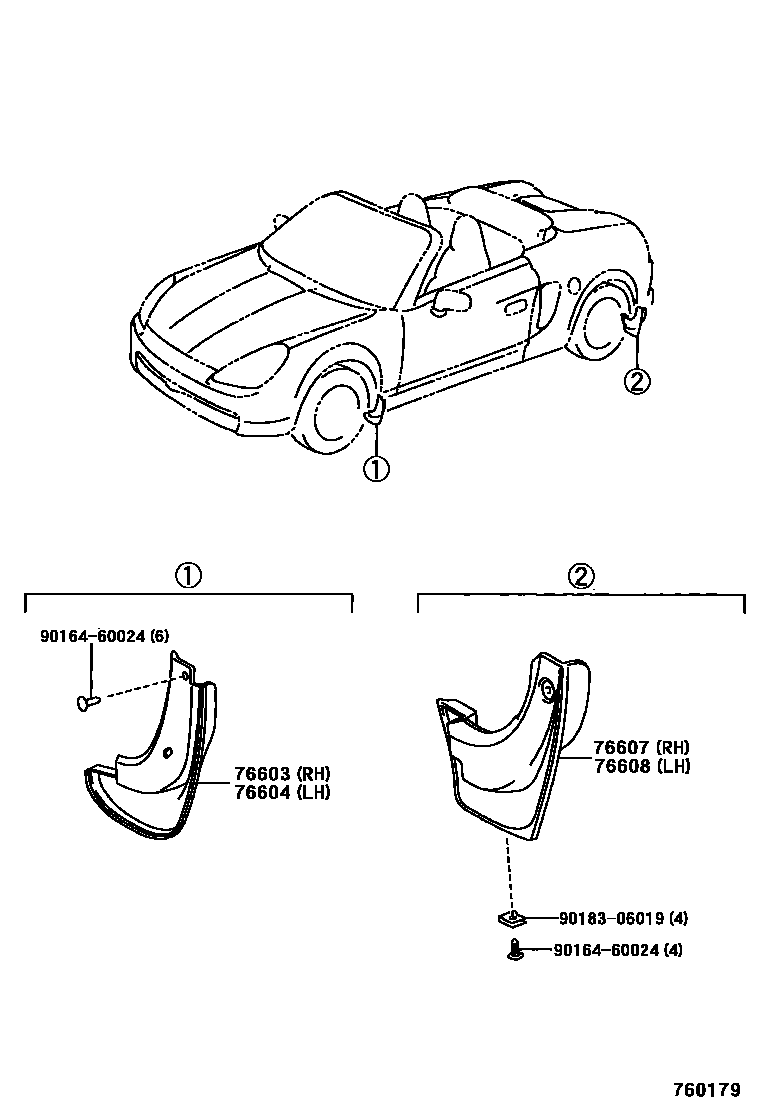

MUDGUARD & SPOILER
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
SUPER WHITE 2,040
SILVER ME.,1D0
GRAY M.M.,1E3
SILVER M.M.,1E7
BLACK,202
SUPER RED 5,3P0
SUPER BRIGHT YELLOW,576
GREEN M.M.,6S1
DARK GREEN MC.,6R4
BLUE MC.,8M6
LT.BLUE M.M.,8R2
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
SUPER WHITE 2,040
SILVER ME.,1D0
GRAY M.M.,1E3
SILVER M.M.,1E7
BLACK,202
SUPER RED 5,3P0
SUPER BRIGHT YELLOW,576
GREEN M.M.,6S1
DARK GREEN MC.,6R4
BLUE MC.,8M6
LT.BLUE M.M.,8R2
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
SUPER WHITE 2,040
SILVER ME.,1D0
GRAY M.M.,1E3
SILVER M.M.,1E7
BLACK,202
SUPER RED 5,3P0
SUPER BRIGHT YELLOW,576
GREEN M.M.,6S1
DARK GREEN MC.,6R4
BLUE MC.,8M6
LT.BLUE M.M.,8R2
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
SUPER WHITE 2,040
SILVER ME.,1D0
GRAY M.M.,1E3
SILVER M.M.,1E7
BLACK,202
SUPER RED 5,3P0
SUPER BRIGHT YELLOW,576
GREEN M.M.,6S1
DARK GREEN MC.,6R4
BLUE MC.,8M6
LT.BLUE M.M.,8R2
9016460024
main90164-60024
9018306019
main90183-06019
6 parts on this diagram · 1 diagram in section
