SIDE MOULDING

6101

6104

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75505-17040iZZW30199912-200509

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75506-17040iZZW30199912-200509

75650MOULDING ASSY, RR BELT

main75650-17010iZZW30199912-200310

sub75650-17011

main75650-17011iZZW30200310-200509

75676COVER, QUARTER BELT MOULDING END, FRONT RH

main75676-17020iZZW30199912-200001

sub75676-17021

main75676-17021iZZW30200001-200509

75677COVER, QUARTER BELT MOULDING END, FRONT LH

main75677-17020iZZW30199912-200001

sub75677-17021

main75677-17021iZZW30200001-200509

75678COVER, QUARTER BELT MOULDING END, REAR RH

main75678-17010iZZW30199912-200509

75679COVER, QUARTER BELT MOULDING END, REAR LH

main75679-17010iZZW30199912-200509

75711BMOULDING, FRONT DOOR BELT, RH

main75711-17030iZZW30199912-200310

sub75711-17031

main75711-17031iZZW30200310-200509

sub75711-17032

75712BMOULDING, FRONT DOOR BELT, LH

main75712-17030iZZW30199912-200310

sub75712-17031

main75712-17031iZZW30200310-200509

sub75712-17032

76589STOPPER, BACK WINDOW OUTSIDE MOULDING, NO.1

main76589-17010iZZW30199912-200509

76599STOPPER, BACK WINDOW OUTSIDE MOULDING, NO.2

main76599-17010iZZW30199912-200509

7910

7539217020RETAINER, OUTSIDE MOULDING

main75392-17020

9010506277

main90105-06277

9014880052

main90148-80052

9016840116

main90168-40116

904670504522

main90467-0504522

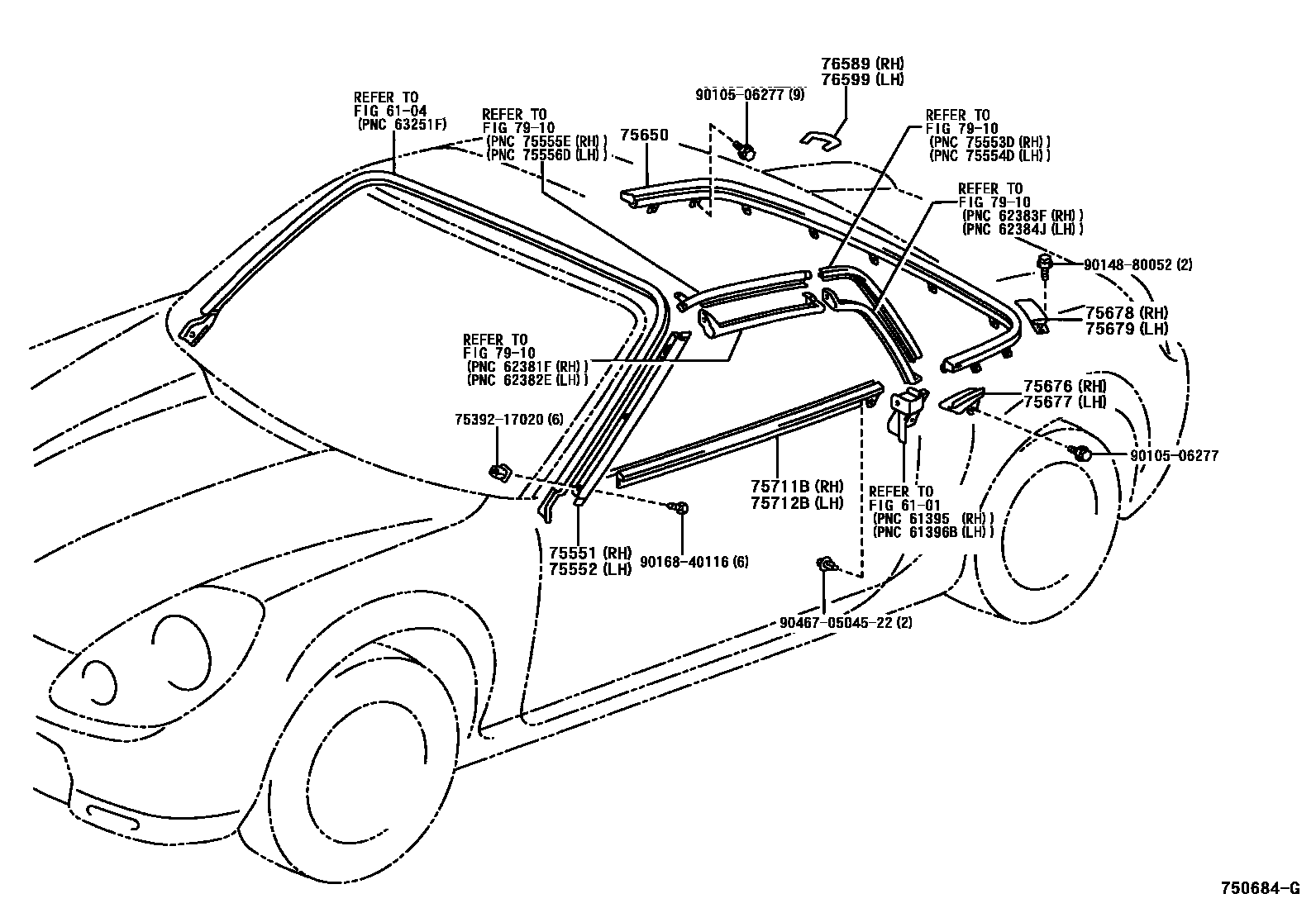

19 parts on this diagram · 1 diagram in section
