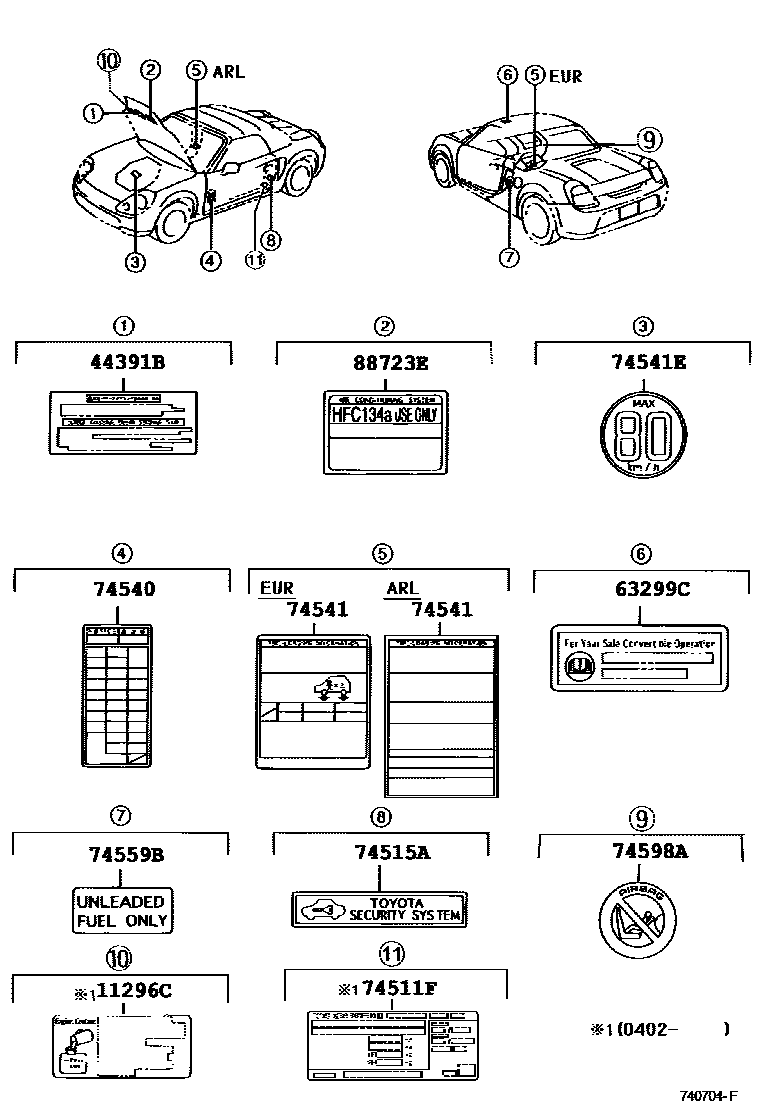

CAUTION PLATE (EXTERIOR & INTERIOR)

11296CLABEL, ENGINE SERVICE INFORMATION

main11296-27020i1ZZFE..ZZW30200402-200509

44391BLABEL, POWER STEERING OIL INFORMATION

main44391-17020iZZW30199912-200208

63299CLABEL, REMOVABLE ROOF INFORMATION

main63299-17080iZZW30199912-200208

74511FLABEL, NAME (IDENTIFICATION LASER LABEL)

main74511-48010iZZW30..EUR200402-200509

*111,W(WVTA VIN PLATE)

main74511-48020iZZW30..EUR200402-200509

*111

main74511-48030iZZW30..ARL200402-200509

*111

74515APLATE, THEFT WARNING

main74515-17010×2iZZW30199912-200208

W(IMMOBILIZER & WIRELESS)

main74515-52010×2iZZW30..RHD..EUR199912-200208

74540PLATE, FUSE BLOCK CAUTION

main82683-17030iZZW30199912-200208

74541PLATE, TIRE PRESSURE CAUTION

main42661-17270iZZW30..EUR199912-200208

main42661-17290iZZW30..ARL200008-200208

main42661-17320iZZW30..EUR200208-200509

main42661-17330iZZW30..ARL200208-200509

74541EPLATE, COMPACT SPARE TIRE CAUTION

main42668-20020iZZW30200208-200509

74559BLABEL, FUEL INFORMATION

main74559-14050iZZW30200208-200509

74598ALABEL, PASSENGER AIRBAG CAUTION

main74598-20010iZZW30199912-200208

main74598-30040iZZW30200208-200509

88723ELABEL, COOLER SERVICE CAUTION

main88723-28220iZZW30..ARL200402-200509

W(A/C-MANUAL A/C)

main88723-52010iZZW30..RHD..EUR200208-200402

W(DEALER OPTION MANUAL AIR CONDITIONER)

main88733-17020iZZW30..LHD200402-200509

11 parts on this diagram · 1 diagram in section
